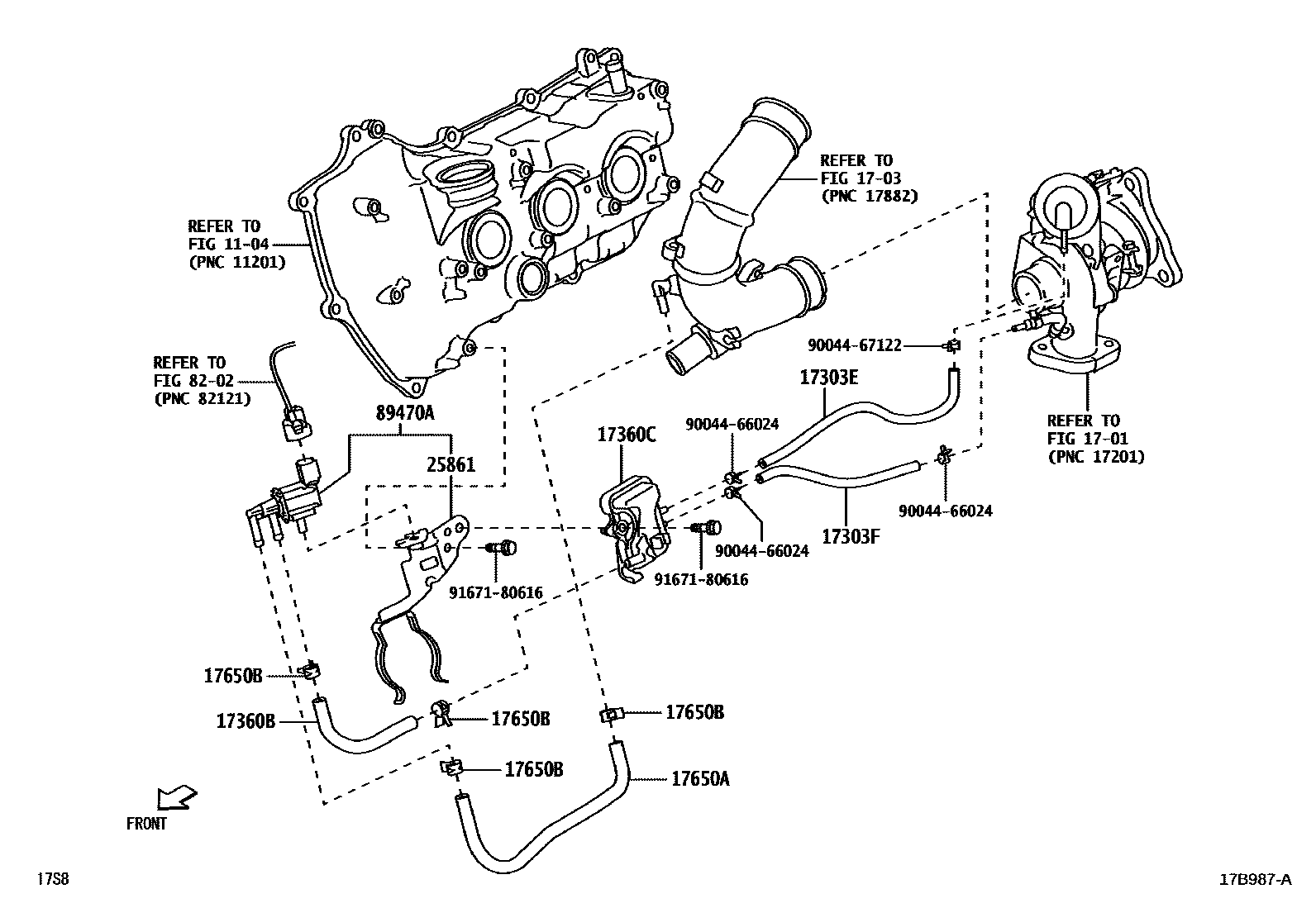

Toyota PIXIS VAN — VACUUM PIPING

0001 1 0002 12WD 0003 14WD

1104

1701

1703

17303EHOSE, NO.1(FOR AIR PIPE)

main90044-44121iKFVET..S700,710¥400202112

17303FHOSE, NO.2(FOR AIR PIPE)

main90044-44120iKFVET..S700,710¥210202112

17360BHOSE(FOR AIR PIPE)

main90044-44118iKFVET..S700,710¥210202112

17360CPIPE ASSY, AIR

main17360-B5010iKFVET..S700,710¥1,160202112

17650AHOSE(FOR VACUUM SWITCHING VALVE)

main17294-B5040iKFVET..S700,710¥390202112

17650BCLIP(FOR VACUUM SWITCHING VALVE HOSE)

main96133-41001iKFVET..S700,710¥110202112

25861BRACKET, VACUUM SWITCHING VALVE

main25861-B5030iKFVET..S700,710¥1,030202112

8202

89470AVALVE ASSY, VACUUM SWITCHING W/BRACKET

main89470-B5140iS700,710..TBO¥5,100202112

9004466024

main90044-66024¥250

9004467122

main90044-67122¥180

9167180616

main91671-80616¥60

15 parts on this diagram · 3 diagrams in section
