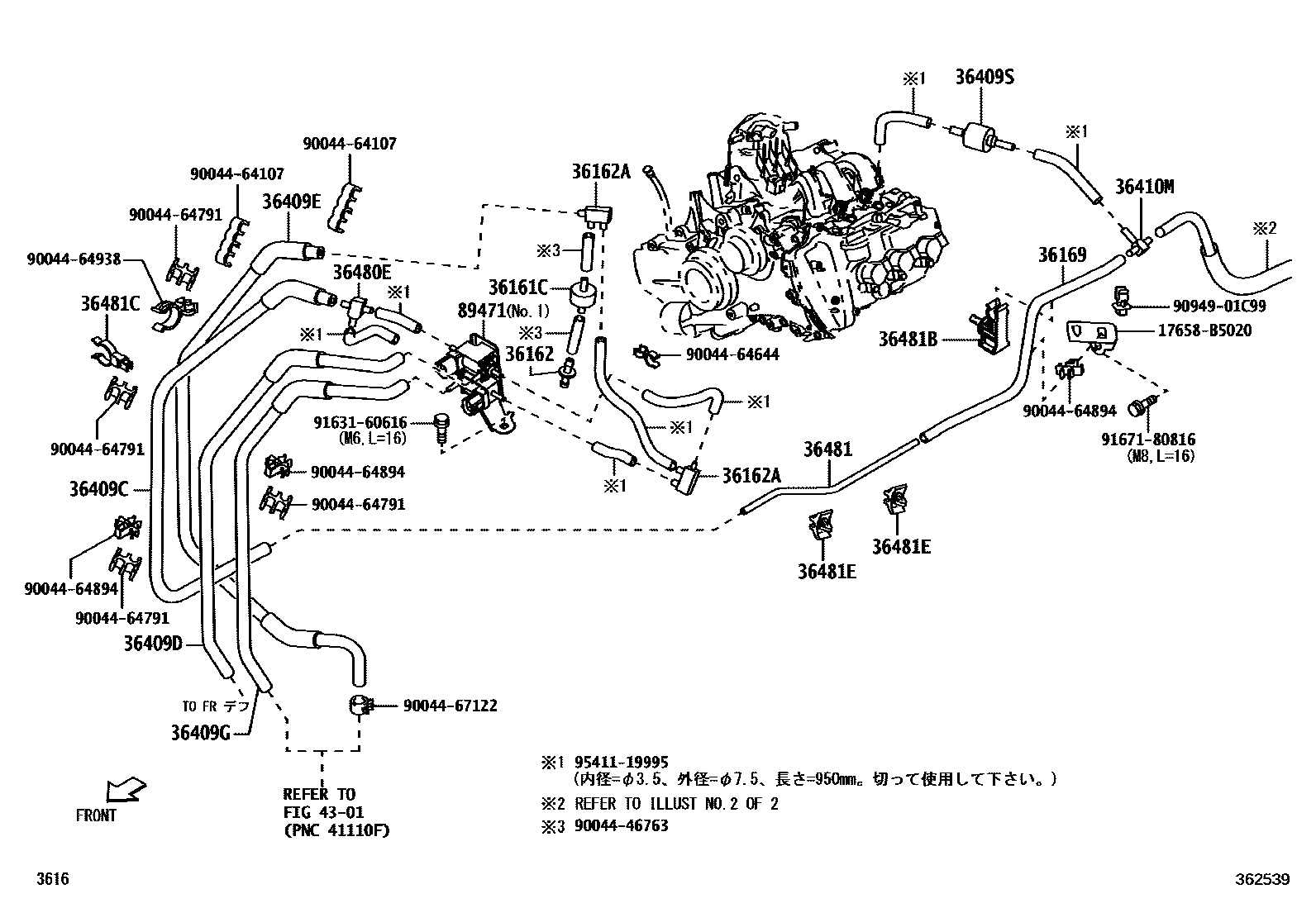

Toyota PIXIS VAN — TRANSFER VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

36161CFILTER ASSY, AIR(FOR 2WAY)

main90048-24005iS710..5F¥1,500202112

36162WAY, 2(FOR FRONT CHECK VALVE)

main90044-12061iS710..CVT¥910202112

36162AWAY,3(FOR VACUUM HOSE)

main90044-13034iS710¥330202112

36169HOSE

main31432-B5060iS710..NTBO¥710202112

main31432-B5070iS710..TBO¥710202112

36409CHOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)

main44750-B5480iS710¥1,800202112

36409DHOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)

main44750-B5490iS710¥1,800202112

36409EHOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)

main44750-B5500iS710¥1,910202112

36409GHOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)

main44750-B5510iS710¥1,800202112

36409SVALVE, CHECK (FOR FRONT DRIVE SHIFT)

main90048-20008iS710¥1,460202112

36410MWAY, 3 (FOR TRANSFER VACUUM)

main90044-13053iS710..NTBO¥300202202

main90044-13060iS710..NTBO¥420202112-202202

36480EWAY, 3 (FOR TRANSFER VACUUM TUBE)

main90044-13060iS710..CVT¥420202112

36481TUBE, FRONT DRIVE VACUUM, NO.1

main36481-B5040iS710¥710202112

36481BCLAMP, FRONT DRIVE VACUUM TUBE, NO.1

main90044-64184iS710..TBO¥330202112

main90044-64916iS710..NTBO¥160202112

36481CCLAMP, FRONT DRIVE VACUUM TUBE, NO.2

main90044-64912iS710¥210202112

36481ECLAMP, NO.2 (FOR TRANSFER VACUUM)

main90044-64826iS710¥160202112

4301

89471VALVE ASSY, VACUUM SWITCHING

main89470-B5120iS710¥10,300202112

main89470-B5130iS710..5F¥10,300202112

17658B5020BRACKET, VACUUM HOSE CLAMP

main17658-B5020¥280

9004446763

main90044-46763¥180

9004464107

main90044-64107¥190

9004464644

main90044-64644¥190

9004464791

main90044-64791¥190

9004464894

main90044-64894¥110

9004464938

main90044-64938¥210

9004467122

main90044-67122¥180

9094901C99

main90949-01C99¥100

9163160616

main91631-60616¥120

9167180816

main91671-80816¥80

9541119995

main95411-19995¥1,540

29 parts on this diagram · 4 diagrams in section
