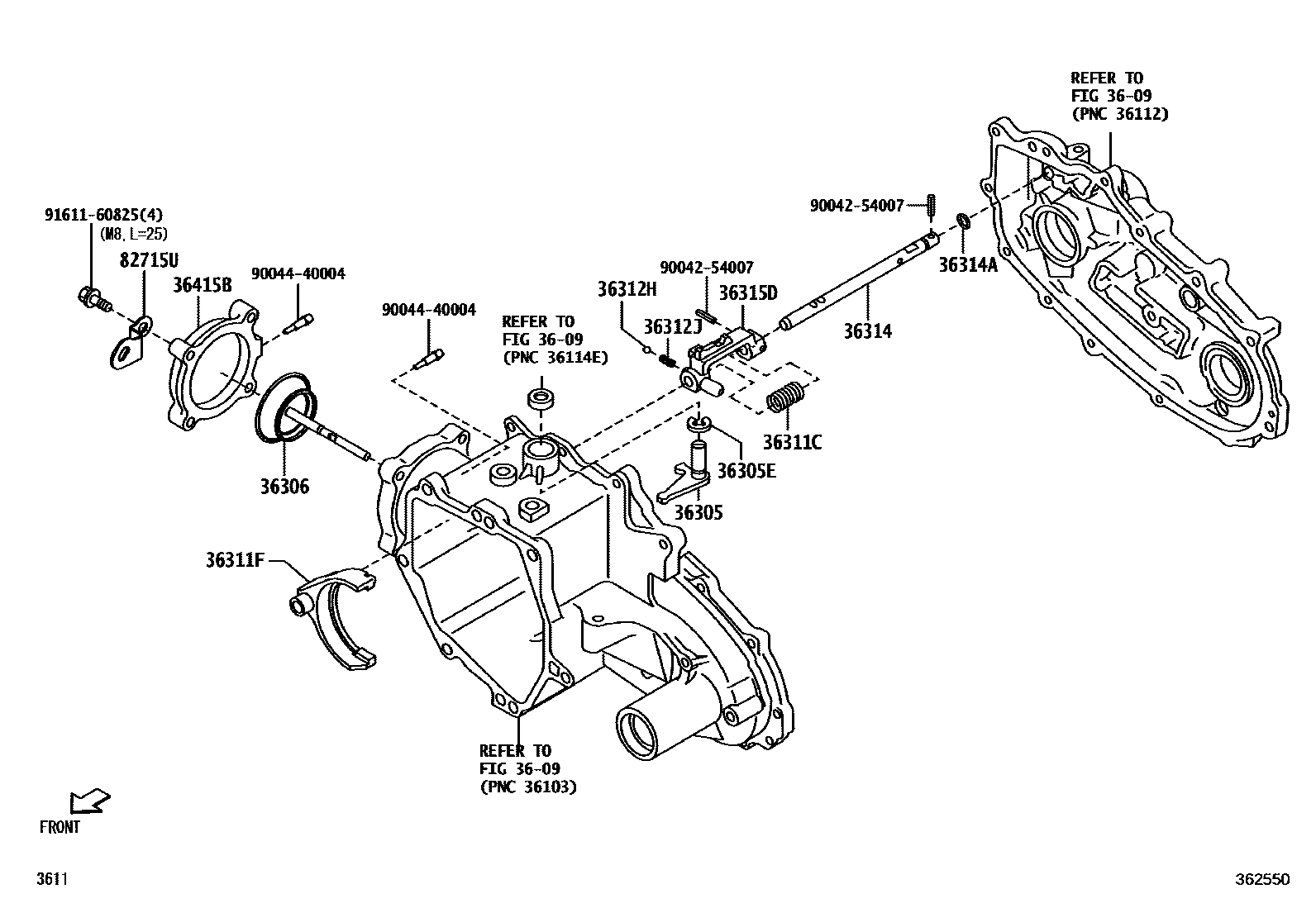

Toyota PIXIS VAN — TRANSFER LEVER & SHIFT ROD

3609

36305LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK

main36305-87502iS710..5F¥2,320202112

36305ERING, E(FOR FRONT DRIVE SHIFT LINK LEVER)

main90045-23007iS710..5F¥140202112

36306SHAFT SUB-ASSY, CONTROL

main33205-B5020iS710..5F¥3,760202112

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90045-01673iS710..5F¥280202112

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-B5010iS710..5F¥3,710202112

36312HBALL (FOR TRANSFER GEAR SHIFT FORK NO.2)

main90043-60003iS710..5F¥170202112

36312JSPRING, COMPRESSION (FOR TRANSFER GEAR SHIFT FORK NO.2)

main90045-01267iS710..5F¥120202112

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-B5010iS710..5F¥1,500202112

36314ARING, O (FOR TRANSFER SHIFT FORK SHAFT)

main96711-19009iS710..5F¥120202112

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36316-87505iS710..5F¥3,920202112

36415BCOVER, DIAPHRAGM CYLINDER

main36415-87501iS710..5F¥1,830202112

82715UBRACKET, WIRING HARNESS CLAMP

main82715-B5061iS710..5F¥280202112

9004254007

main90042-54007¥100

9004440004

main90044-40004¥200

9161160825

main91611-60825¥140

16 parts on this diagram · 1 diagram in section
