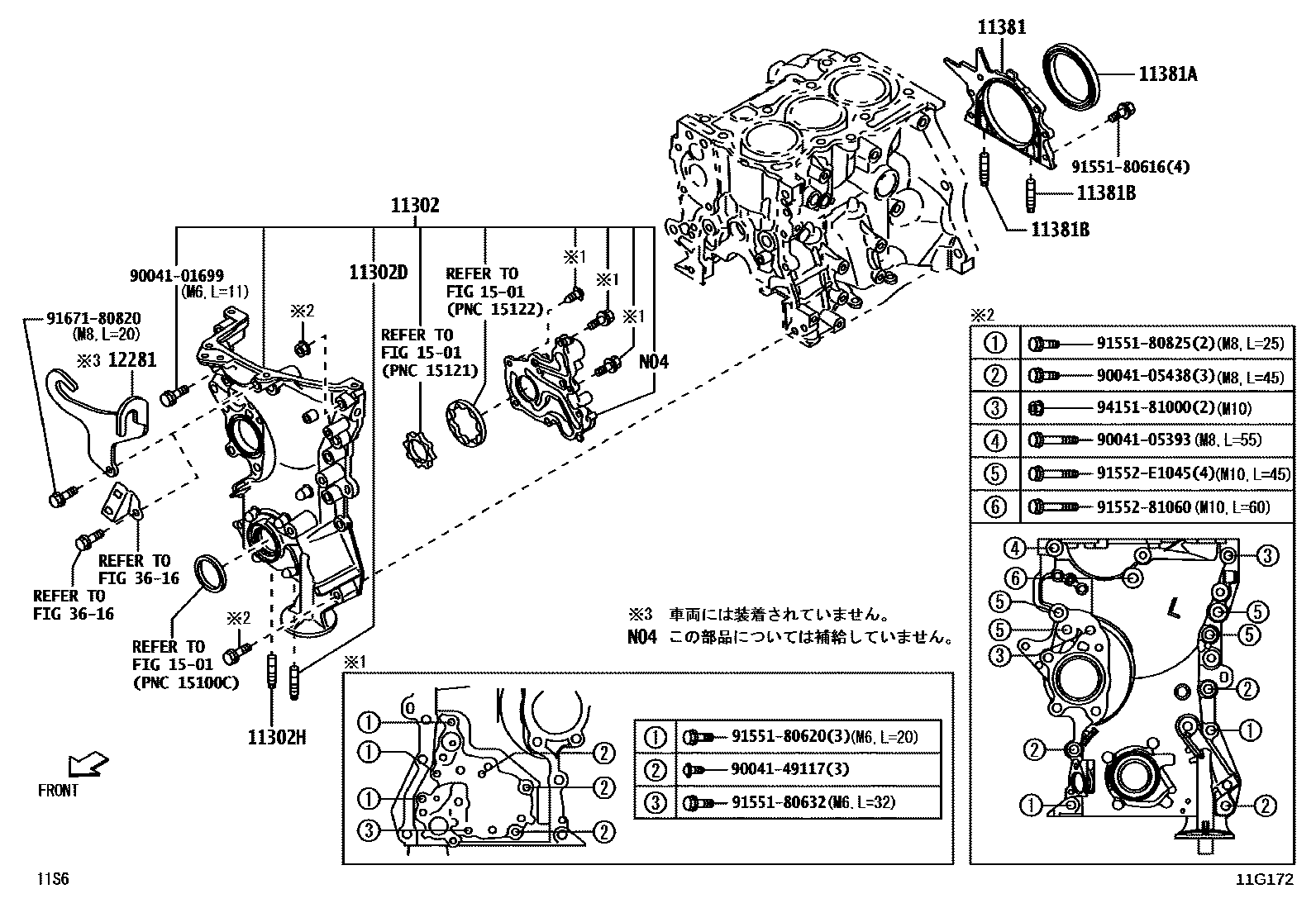

Toyota PIXIS VAN — TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-B2200iKFVE..S700,710¥16,300202112

main11310-B2210iKFVET..S700,710¥16,300202112

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90041-26005iKFV#..S700,710¥110202112

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90041-26006iKFV#..S700,710¥110202112

11381RETAINER, ENGINE REAR OIL SEAL

main11381-B2040iKFV#..S700,710¥2,000202112

11381ASEAL, ENGINE REAR OIL

main90043-11434iKFV#..S700,710¥670202112

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90041-26006iKFV#..S700,710¥110202112

12281HANGER, ENGINE, NO.1

main12281-B2020iKFV#..S700,710¥2,270202112

1501

3616

9004101699

main90041-01699¥110

9004105393

main90041-05393¥230

9004105438

main90041-05438¥210

9004149117

main90041-49117¥110

9155180616

main91551-80616¥60

9155180620

main91551-80620¥60

9155180632

main91551-80632¥110

9155180825

main91551-80825¥80

9155281060

main91552-81060¥160

91552E1045

main91552-E1045¥270

9167180820

main91671-80820¥80

9415181000

main94151-81000¥100

21 parts on this diagram · 1 diagram in section
