Toyota PIXIS VAN — STANDARD TOOL

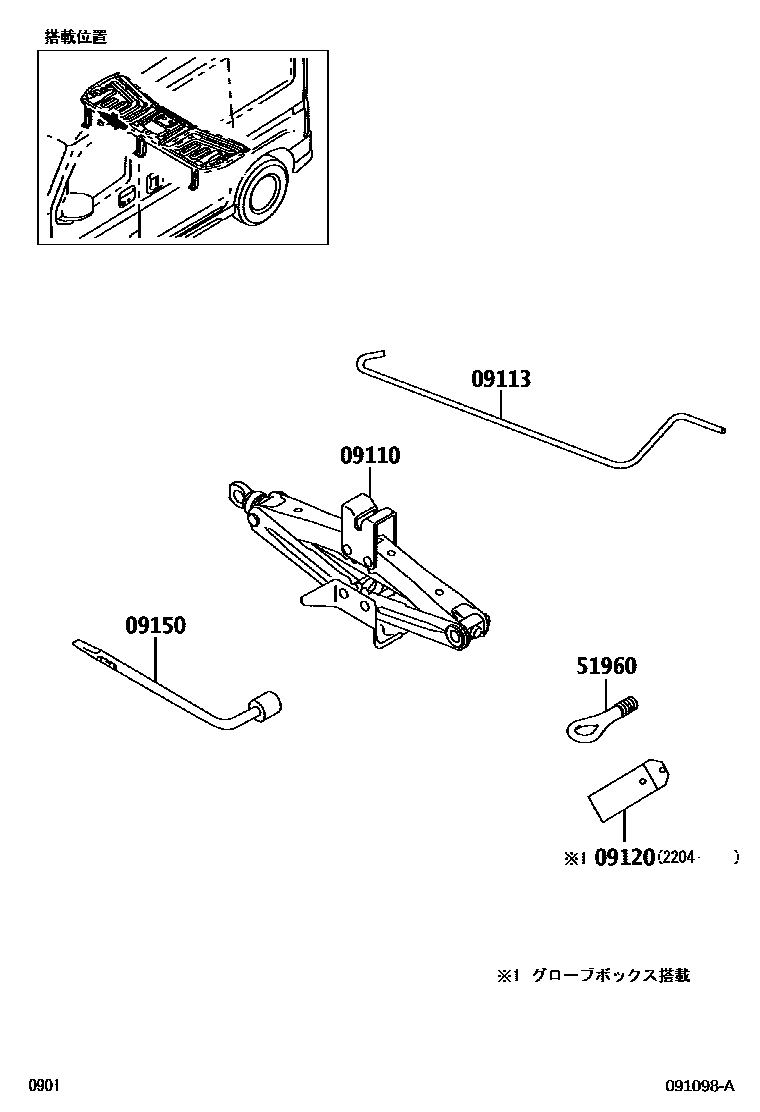

Parts diagram

09110JACK ASSY

main09111-B5030i¥4,690202112

09113HANDLE, JACK

main09113-B5030i¥770202112

09120BAG, TOOL

main09120-B5090i¥500202204

�t��g�t�b�N�@��E

09150WRENCH, HUB NUT BOX

main09151-97201i¥770202112

51960HOOK ASSY, FRONT

main51961-B1040i¥1,670202112

5 parts on this diagram · 1 diagram in section
