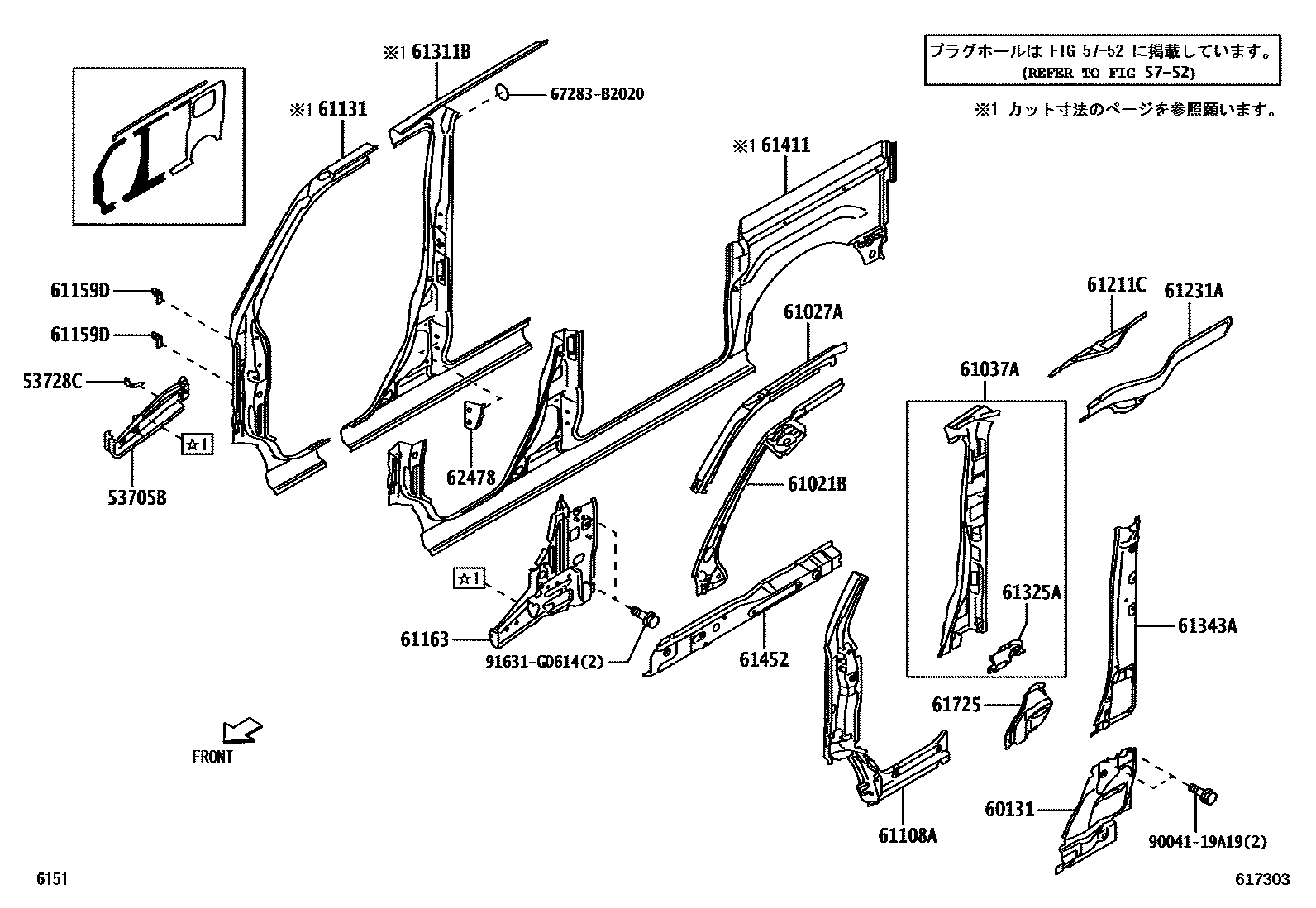

Toyota PIXIS VAN — SIDE MEMBER

0001 1RH,FR 0002 1RH,RR 0003 1LH,FR 0004 1LH,RR 0005 1��������

53705BMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-B5020iS700,710¥4,900202112

53728CBRACKET, FENDER APRON, RH

main53728-B5040iS700,710¥600202112

5752

60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

main60131-B5020iS700,710¥6,000202112

61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH

main61021-B5090iS700,710..SPL¥7,100202112

main61021-B5100iS700,710..CR,DLX¥7,100202112

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-B5020iS700,710¥7,100202112

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-B5110iS700,710..5F..CR;S700,710..DLX,SPL¥8,700202112

main61037-B5120iS700,710..CVT..CR¥8,700202112

�����p�b�N

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-B5050iS700,710¥10,300202112

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-B5090iS700,710..5F..CR;S700,710..DLX,SPL¥15,500202112

main61131-B5100iS700,710..CVT..CR¥15,500202112

�����p�b�N

61159DRETAINER, SIDE PANEL, NO.2 RH

main53728-B5030iS700,710¥280202112

61163PILLAR, FRONT BODY, INNER RH

main61023-B5090iS700,710¥7,100202112

61211RAIL, ROOF SIDE, OUTER RH

main61203-B5010iS700,710..5F..CR;S700,710..DLX,SPL¥3,820202112

main61203-B5020iS700,710..CVT..CR¥3,820202112

�����p�b�N

61211CRAIL, ROOF SIDE, RH

main61211-B5050iS700,710¥1,730202112

61231ARAIL, ROOF SIDE, INNER RH

main61231-B5080iS700,710¥4,900202112

61311BPILLAR, CENTER BODY, OUTER RH

main61311-B5130iS700,710..5F..CR;S700,710..DLX,SPL¥16,000202112

main61311-B5140iS700,710..CVT..CR¥16,000202112

�����p�b�N

61325AREINFORCEMENT, CENTER BODY PILLAR, CENTER RH

main61325-B5020iS700,710¥2,730202112

61343APILLAR, CENTER BODY, INNER RH

main61343-B5120iS700,710..(DLX,SPL)..PS1¥3,820202112

main61343-B5150iS700,710..PS2;S700,710..CR..PS1¥3,820202112

61411PANEL, ROCKER, OUTER RH

main61411-B5080iS700,710..5F..CR;S700,710..DLX,SPL¥30,900202112

main61411-B5090iS700,710..CVT..CR¥30,900202112

�����p�b�N

61452PANEL, ROCKER INNER, FRONT RH

main60143-B5020iS700,710¥6,300202112

61725BOX, FUEL INLET

main61725-B5060iS700,710¥2,170202112

62478PATCH, CENTER PILLAR, RH

main62478-B5030iS700,710¥1,100202112

67283B2020BASE, BACK DOOR STOPPER

main67283-B2020¥220

9004119A19

main90041-19A19¥110

91631G0614

main91631-G0614¥60

24 parts on this diagram · 5 diagrams in section
