Toyota PIXIS VAN — SHORT BLOCK ASSEMBLY

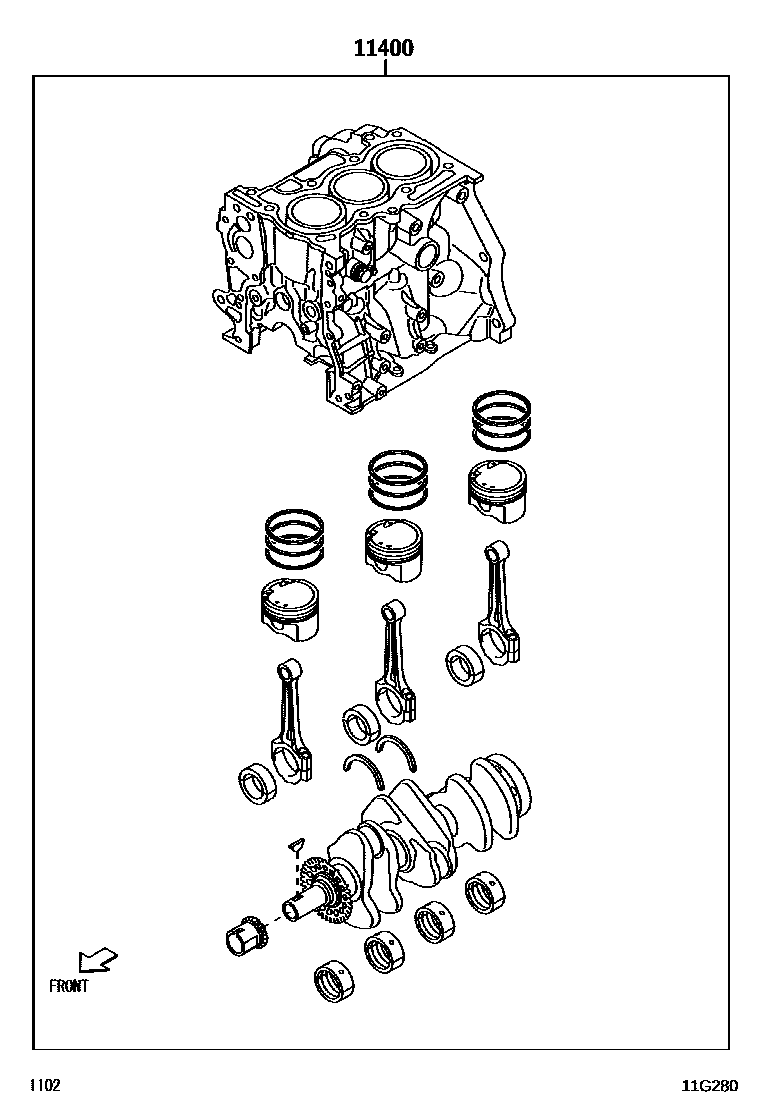

Parts diagram

11400BLOCK ASSY, SHORT

main11400-B5410i¥157,000202112

main11400-B5420i¥157,000202112

1 parts on this diagram · 1 diagram in section
