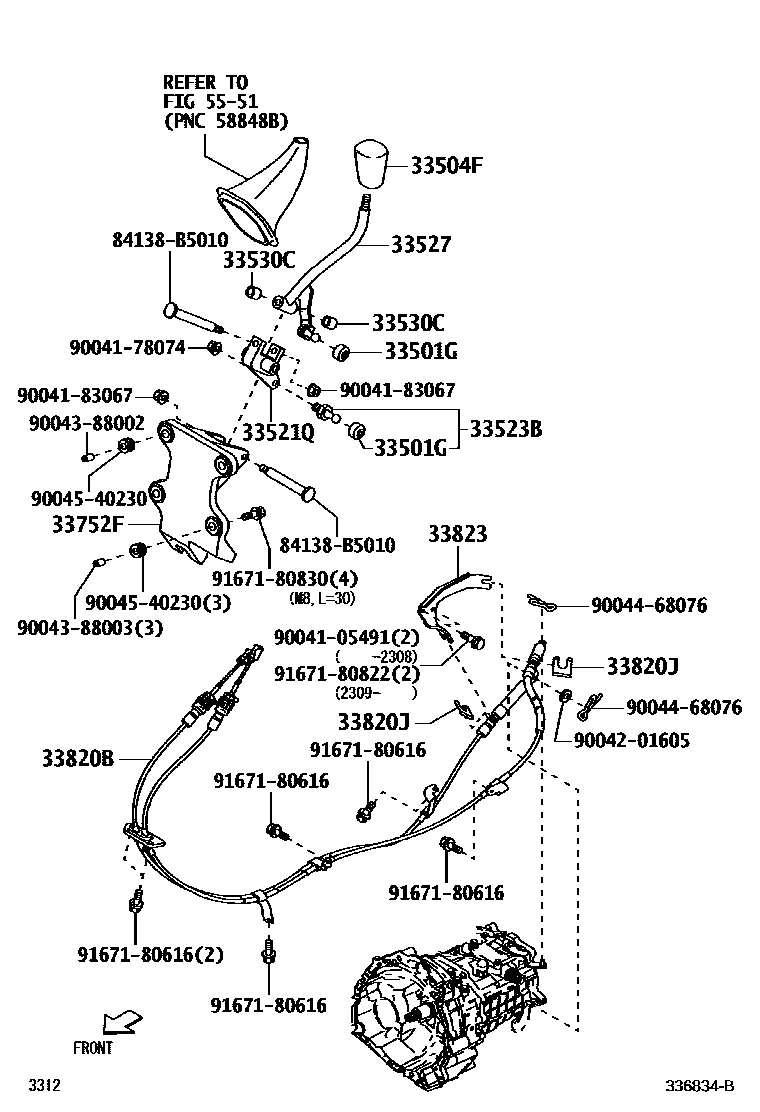

Toyota PIXIS VAN — SHIFT LEVER & RETAINER

0001 1 0002 1

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90043-86132iS700,710..5F¥150202112

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-B2050-C0iS700,710..5F202112

BLACK,TRIM1#

sub33504-B2050¥1,240

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-B5010iS700,710..5F¥1,950202112

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main33523-B9010iS700,710..5F¥450202112

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-B5030iS700,710..5F¥4,330202112

33530CBUSH (FOR SHIFT LEVER)

main90043-86133iS700,710..5F¥150202112

33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)

main33752-B5050iS700,710..5F¥3,970202112

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-B5140iS700,710..5F¥14,700202112

main33820-B5150iS700,710..CVT¥16,200202112-202212

main33820-B5151iS700,710..CVT¥14,700202212

33820JCLIP(FOR TRANSMISSION CONTROL CABLE)

main90044-68376iS700,710..5F¥210202112

main90044-68389iS700,710..CVT¥210202112

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-B5040iS700,710..5F¥2,630202112

5551

84138B5010

main84138-B5010¥420

9004105491

main90041-05491¥170

9004178074

main90041-78074¥120

9004183067

main90041-83067¥120

9004201605

main90042-01605¥150

9004388002

main90043-88002¥260

9004388003

main90043-88003¥260

9004468076

main90044-68076¥170

9004540230

main90045-40230¥110

9167180616

main91671-80616¥60

9167180822

main91671-80822¥80

9167180830

main91671-80830¥80

23 parts on this diagram · 2 diagrams in section
