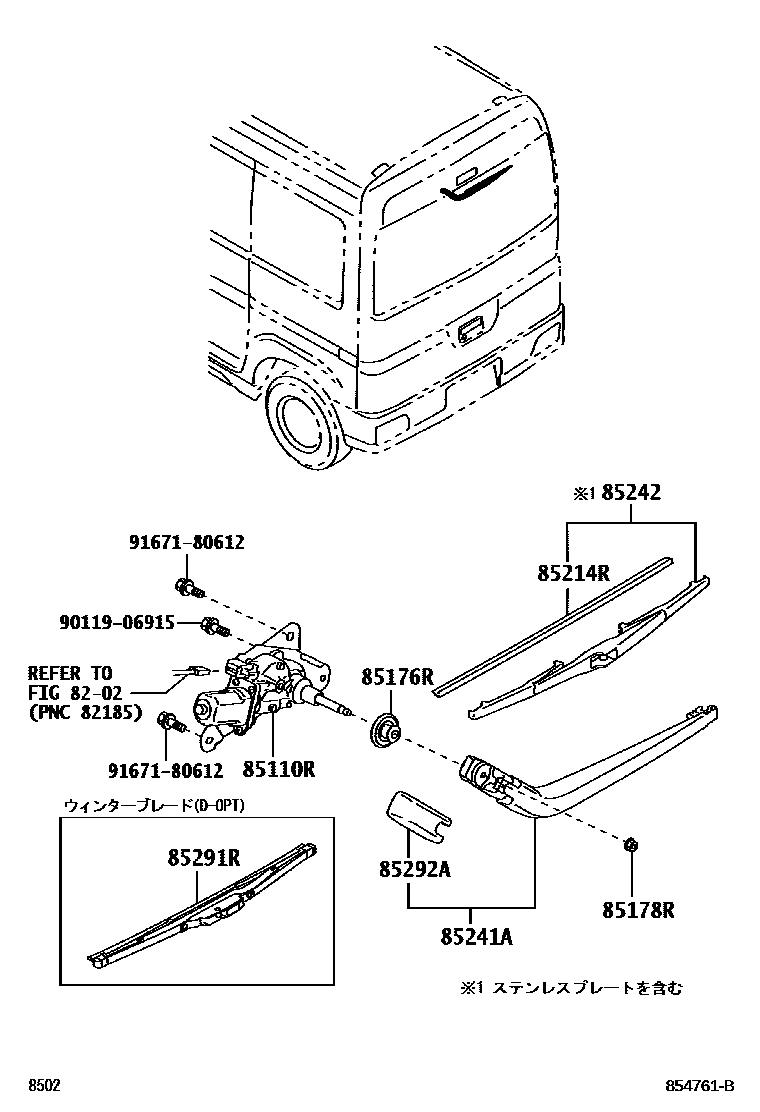

Toyota PIXIS VAN — REAR WIPER

8202

85110RMOTOR ASSY, REAR WIPER

main85130-B5010iS700,710¥14,000202112

85176RCAP, REAR WIPER LINK

main85176-97201iS700,710¥500202112

85178RNUT (FOR REAR WIPER ARM SETTING)

main94130-60640iS700,710¥60202112

85214RRUBBER, REAR WIPER

main85221-87401iS700,710¥380202112

85241AARM, REAR WIPER

main85241-B2070iS700,710¥2,170202112

85242BLADE, RR WIPER

main85242-B2030iS700,710¥1,550202112

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iS700,710¥480202112

9011906915

main90119-06915¥60

9167180612

main91671-80612¥60

11 parts on this diagram · 1 diagram in section
