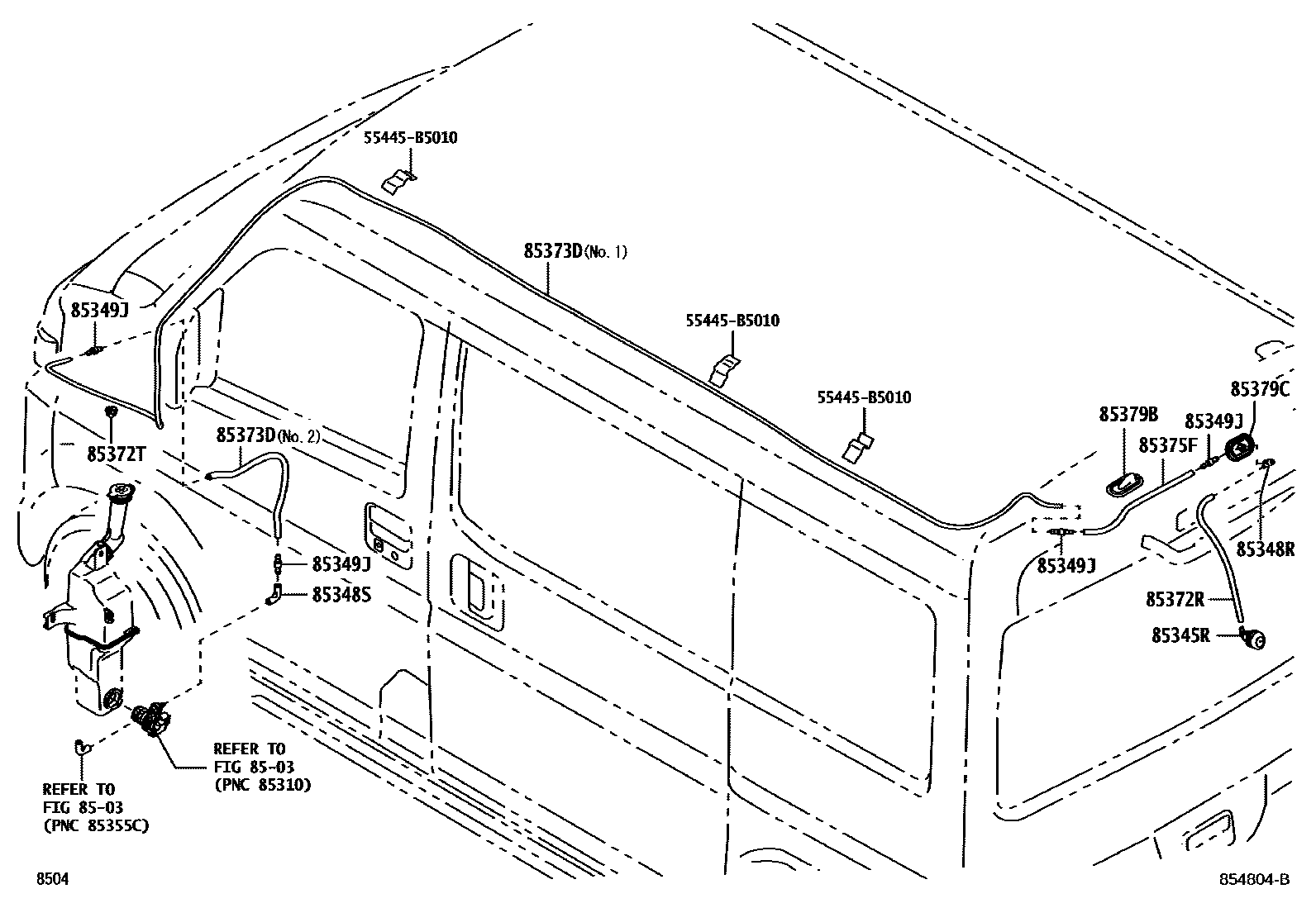

Toyota PIXIS VAN — REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-B5010iS700,710¥930202112

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-87602iS700,710¥180202112

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-87701iS700,710¥330202112

85349JJOINT, REAR WASHER HOSE, NO.4

main85349-87201iS700,710¥170202112

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main85375-87502iS700,710¥690202112

85372TGROMMET, WASHER

main90044-80126iS700,710202112

85373DPIPE, REAR WASHER

main85343-97401iS700,710¥320202112

main85374-B3020iS700,710¥1,090202112

85375FHOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-87502iS700,710¥690202112

85379BGROMMET, WASHER, A

main85373-B5010iS700,710¥120202112

85379CGROMMET, REAR WASHER HOSE NO.1

main85373-B5020iS700,710¥120202112

55445B5010GARNISH, INSTRUMENT PANEL OUTSIDE, RH

main55445-B5010¥330

12 parts on this diagram · 1 diagram in section
