Toyota PIXIS VAN — PARTIAL ENGINE ASSEMBLY

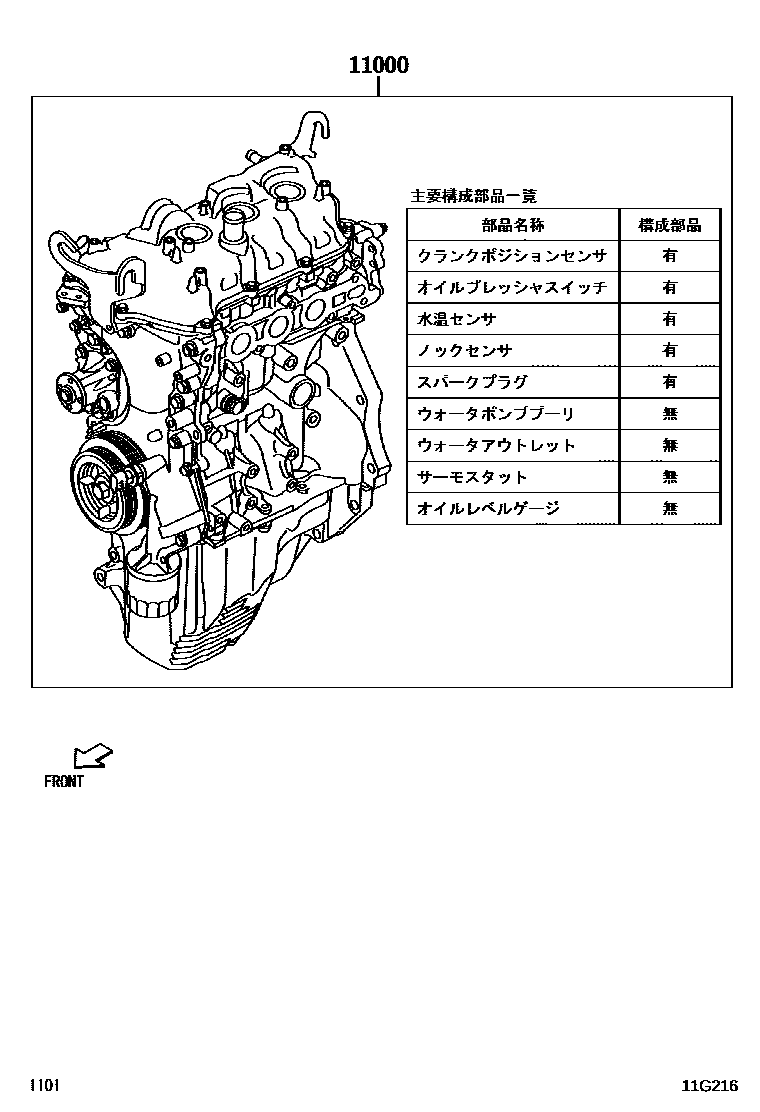

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-B5450i¥261,000202112

main19000-B5460i¥261,000202112

1 parts on this diagram · 1 diagram in section
