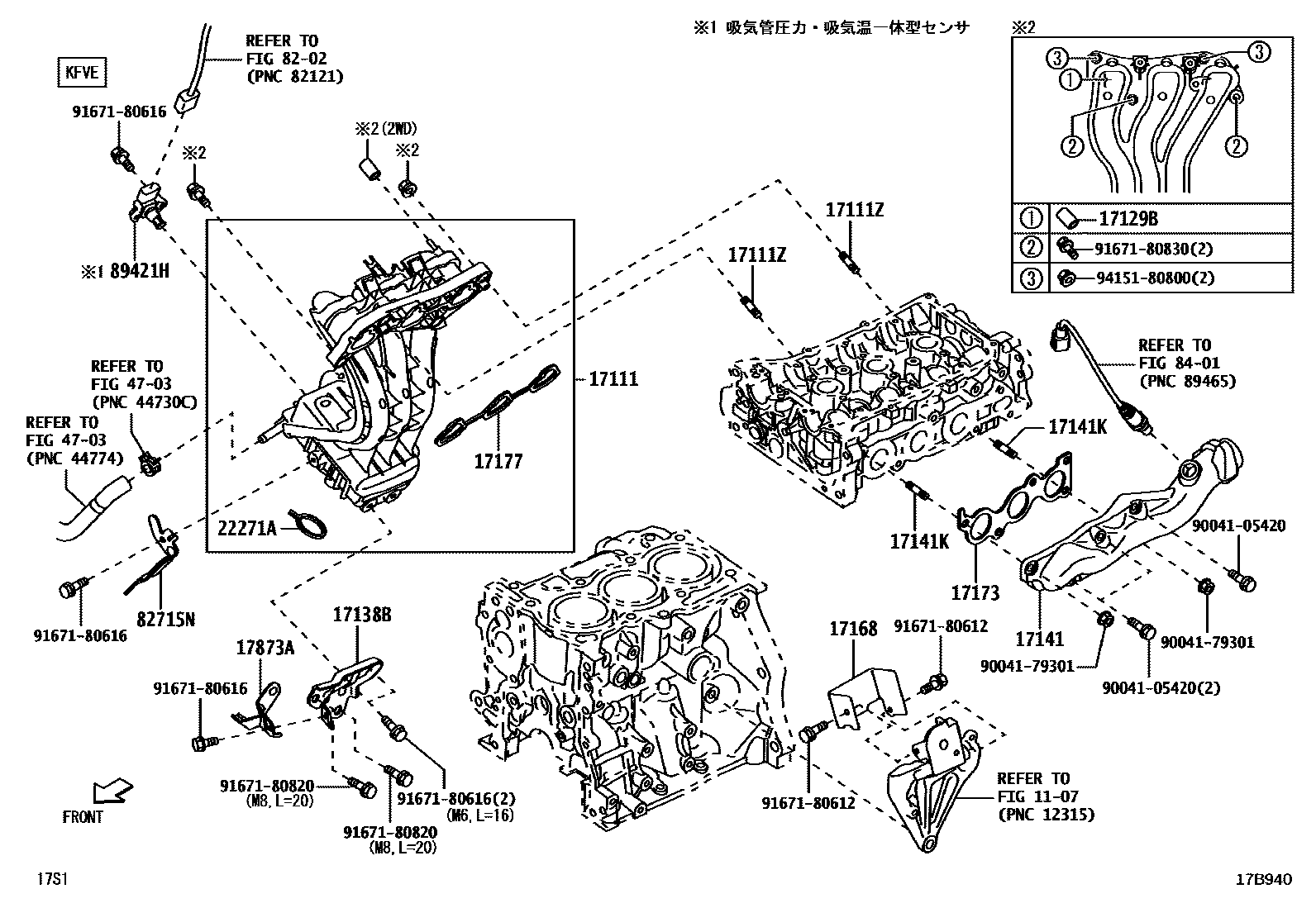

Toyota PIXIS VAN — MANIFOLD

0001 1������ 0002 1������ 0003 1���������� ��������� 0004 1���������� ���������

1107

17111MANIFOLD, INTAKE

main17120-B2160iKFV#..S700,710¥12,600202112

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90041-26012iKFV#..S700,710¥190202112

17129BPLUG

main90043-39029iKFVE..S700¥120202112

17138BSTAY, INTAKE MANIFOLD

main17138-B2090iKFV#..S700,710¥1,260202112

17141MANIFOLD, EXHAUST

main17104-B2050iKFVET..S700,710¥10,100202112

main17141-B5010iKFVE..S700,710¥10,500202112

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90041-16487iKFV#..S700,710¥190202112

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-B2010iKFVE..S700,710¥1,090202112

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-B2021iKFV#..S700,710¥870202112

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B2010iKFV#..S700,710¥540202112

17873ABRACKET, INTAKE AIR CONNECTOR, NO.2

main17872-B5020iKFV#..S700,710¥820202112

22271AGASKET, THROTTLE BODY

main22271-B2040iKFV#..S700,710¥540202112

4703

8202

82715NBRACKET, WIRING HARNESS CLAMP

main82715-B5820iS700,710¥820202112

8401

89421HSENSOR, VACUUM

main89421-B2050iS700,710..NTBO¥5,900202112

main89421-B2060iS700,710..TBO¥5,900202112

9004105420

main90041-05420¥190

9004179301

main90041-79301¥120

9167180612

main91671-80612¥60

9167180616

main91671-80616¥60

9167180820

main91671-80820¥80

9167180830

main91671-80830¥80

9415180800

main94151-80800¥80

24 parts on this diagram · 4 diagrams in section
