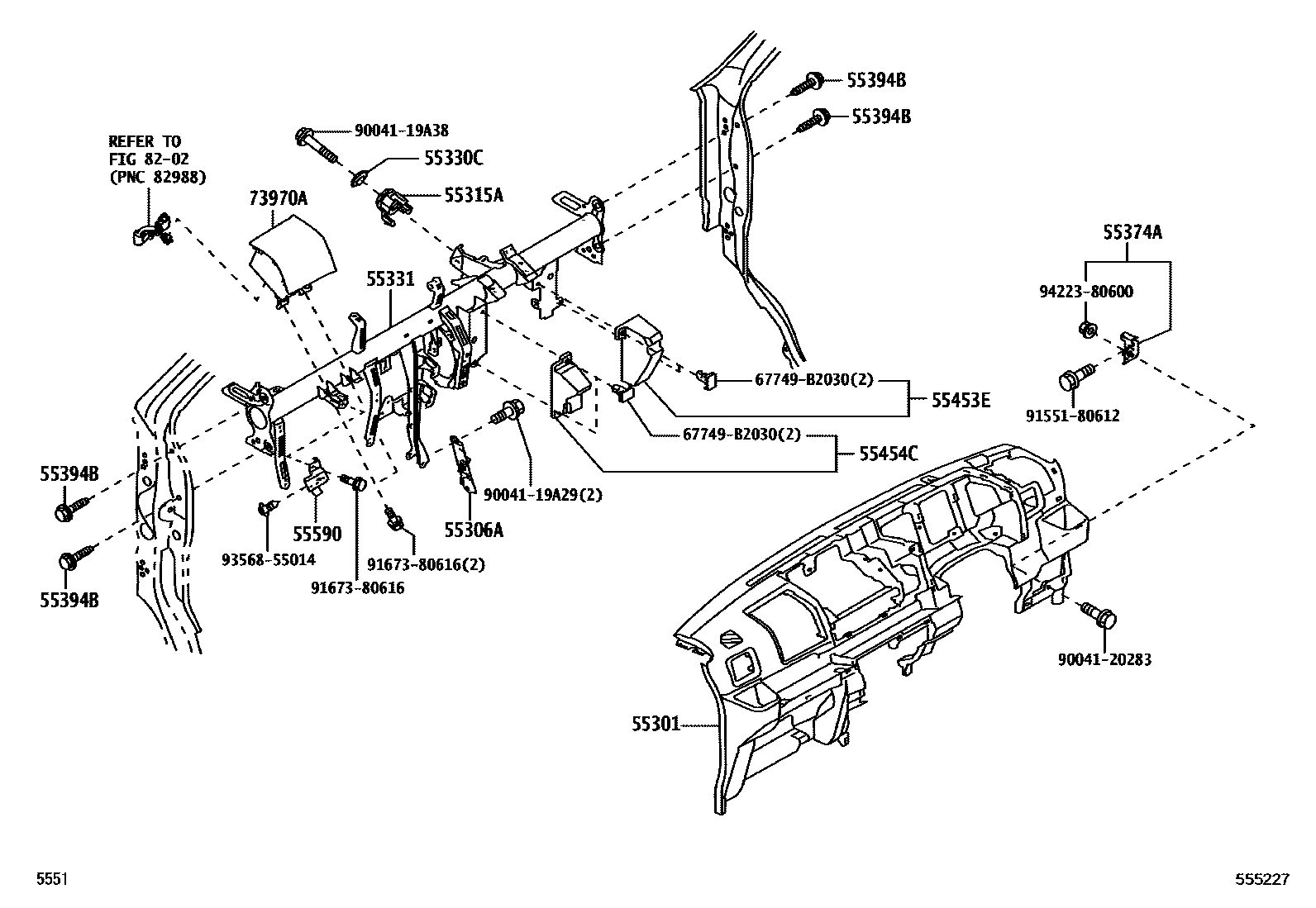

Toyota PIXIS VAN — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1������������,��������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1�������� 0006 1��������

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B5160-C0iS700,710202112

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-B5020iS700,710¥2,270202112

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-B2020iS700,710¥420202112

55330CPLUG, HOLE(FOR INSTRUMENT PANEL)

main90048-71319iS700,710¥110202112

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B5190iS700,710¥13,500202112

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-B5060iS700,710¥290202112

55394BBOLT, INSTRUMENT PANEL

main90041-19A26iS700,710¥190202112

55453EPAD, INSTRUMENT, LOWER RH

main55453-B5020iS700,710¥1,570202112

55454CPAD, INSTRUMENT, LOWER LH

main55454-B5050iS700,710¥1,570202112

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-B5050iS700,710¥870202112

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B5060-C0iS700,710202112

BLACK,TRIM1#

8202

67749B2030CLIP, DOOR TRIM MOULDING

main67749-B2030¥120

9004119A29

main90041-19A29¥110

9004119A38

main90041-19A38¥210

9004120283

main90041-20283¥110

9155180612

main91551-80612¥60

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

9422380600

main94223-80600¥70

20 parts on this diagram · 6 diagrams in section
