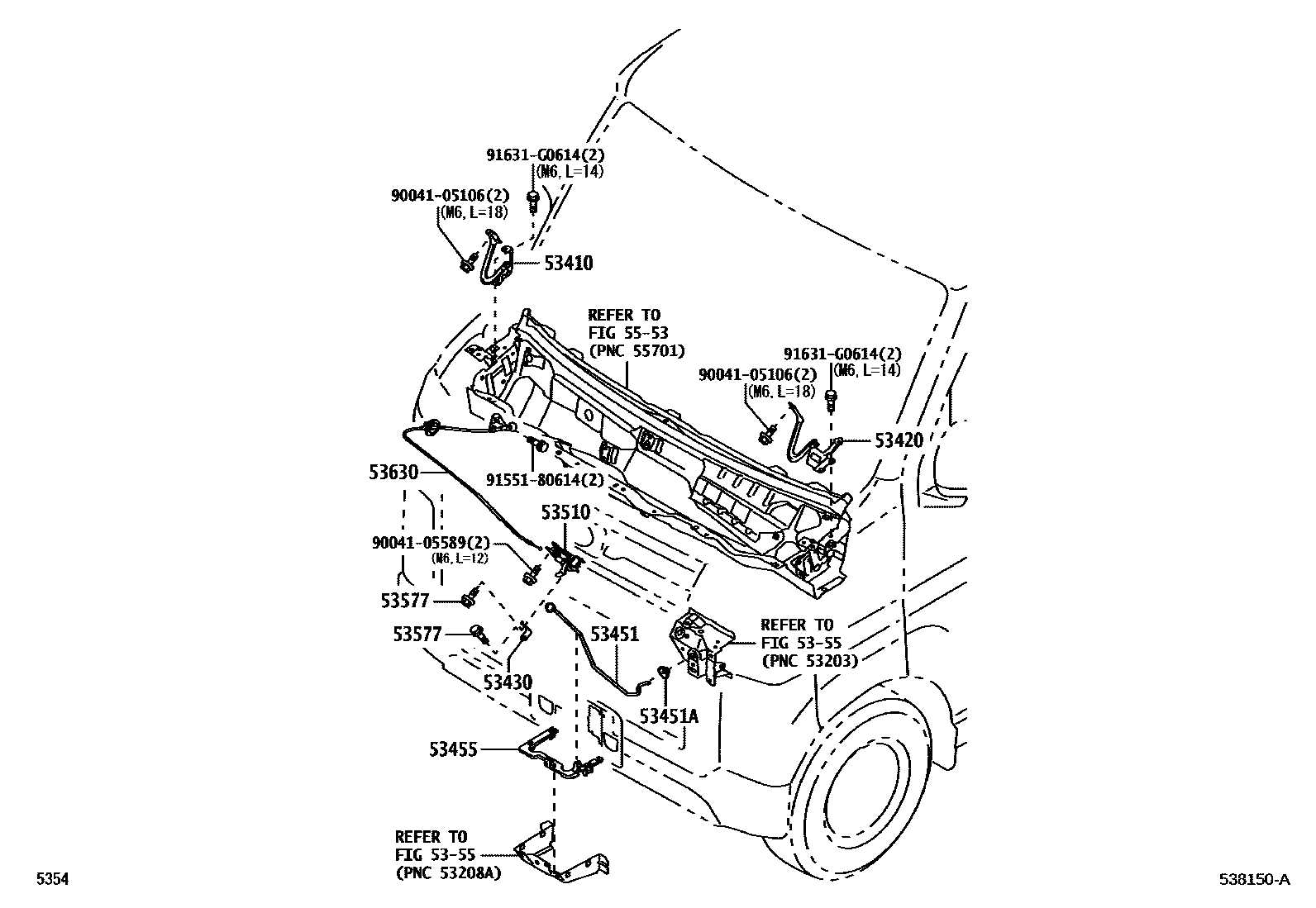

Toyota PIXIS VAN — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53401-B5030iS700,710¥2,170202112

53420HINGE ASSY, HOOD, LH

main53402-B5030iS700,710¥2,170202112

53430SUPPORT ASSY, HOOD

main53227-B5030iS700,710¥240202112

53451ROD, HOOD SUPPORT

main53451-B5030iS700,710¥730202112

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90044-80679iS700,710¥110202112

53455CLAMP, HOOD SUPPORT ROD

main53455-B5040iS700,710¥390202112

53510LOCK ASSY, HOOD

main53510-B5020iS700,710¥2,530202112

5355

53577BOLT, HOOD LOCK

main91671-80616iS700,710¥60202112

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-B5010iS700,710¥1,270202112

5553

9004105106

main90041-05106¥160

9004105589

main90041-05589¥110

9155180614

main91551-80614¥60

91631G0614

main91631-G0614¥60

15 parts on this diagram · 1 diagram in section
