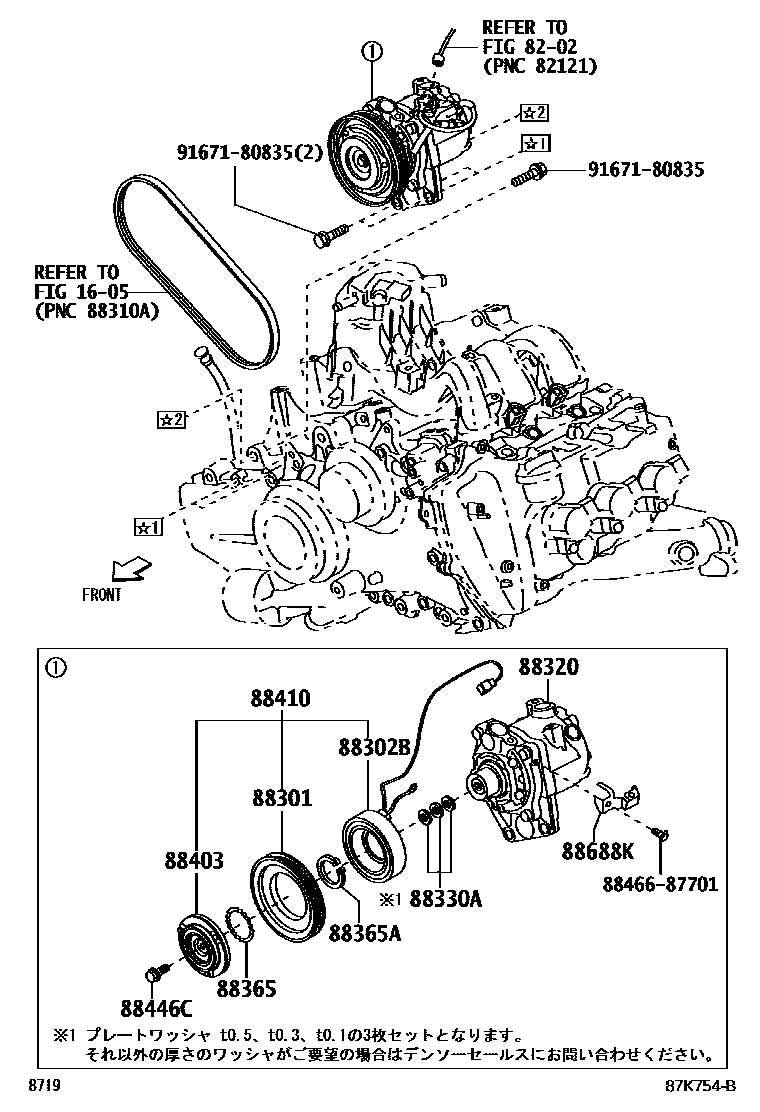

Toyota PIXIS VAN — HEATING & AIR CONDITIONING - COMPRESSOR

1605

8202

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B5030iS700,710¥10,800202112

88302BSTATOR, MAGNET CLUTCH

main88411-B5030iS700,710¥4,590202112

88320COMPRESSOR ASSY, COOLER

main88320-B5070iS700,710¥72,100202112

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iS700,710202112

88365RING, SNAP

main90099-07125iS700,710¥250202112

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iS700,710202112

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-97201iS700,710202112

88410CLUTCH ASSY, MAGNET

main88410-B5050iS700,710¥22,300202112

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iS700,710202112

88688KBRACKET, COOLER COMPRESSOR

main88688-B5070iS700,710¥470202112

8846687701

main88466-87701

9167180835

main91671-80835¥100

14 parts on this diagram · 1 diagram in section
