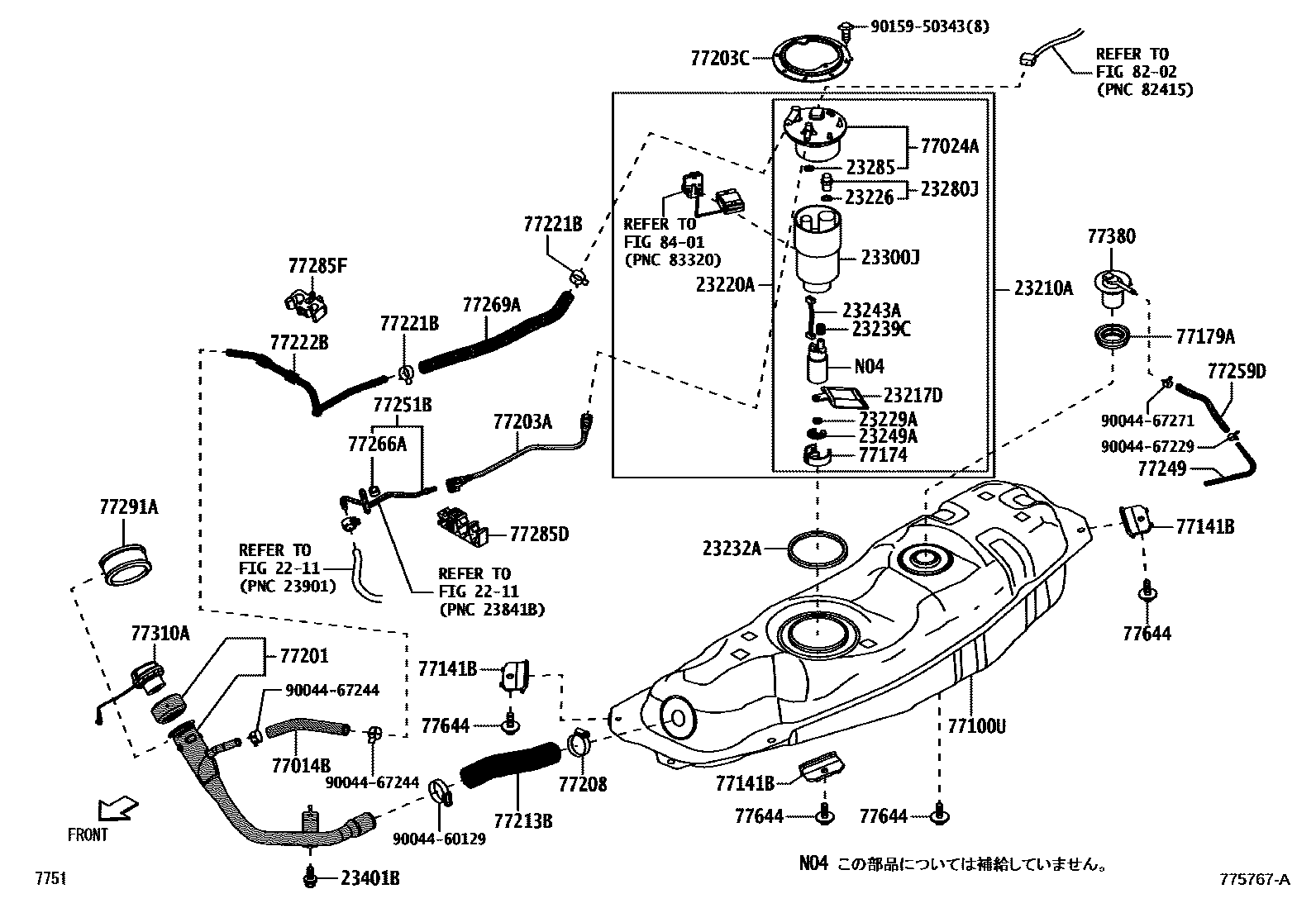

Toyota PIXIS VAN — FUEL TANK & TUBE
2211
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
23217DFILTER, FUEL PUMP
23220APUMP ASSY, FUEL W/FILTER
23226RING, O(FOR FUEL PUMP)
23229ACLIP(FOR FUEL PUMP FILTER)
23232AGASKET, FUEL PUMP
23239CSEAL, FUEL PUMP FILTER
23243AWIRE, FUEL PUMP MOTOR
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23285RING, O
23300JFILTER ASSY, FUEL
23401BBOLT
77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
�������P�W�T
77024APLATE SUB-ASSY, FUEL SUCTION
77100UTANK SUB-ASSY, FUEL
77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1
77174SUPPORT, FUEL SUCTION, NO.1
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77203CBRACKET, FUEL PUMP
77208CLAMP SUB-ASSY, FUEL HOSE
77213BHOSE, FUEL TANK TO FILLER PIPE
77221BCLAMP, BREATHR TUBE
77222BTUBE, FUEL TANK BREATHER, NO.2
77249HOSE, FUEL EMISSION
77251BTUBE, FUEL MAIN
77259DHOSE, FUEL, NO.1
77266APROTECTOR, FUEL TUBE, NO.1
77269AHOSE, FUEL TANK BREATHER
77285DCLAMP, FUEL TUBE, NO.1
77285FCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77380VALVE ASSY, FUEL CUT OFF
77644BOLT, FUEL TANK
8202
8401
9004460129
9004467229
9004467244
9004467271
9015950343
45 parts on this diagram · 4 diagrams in section
