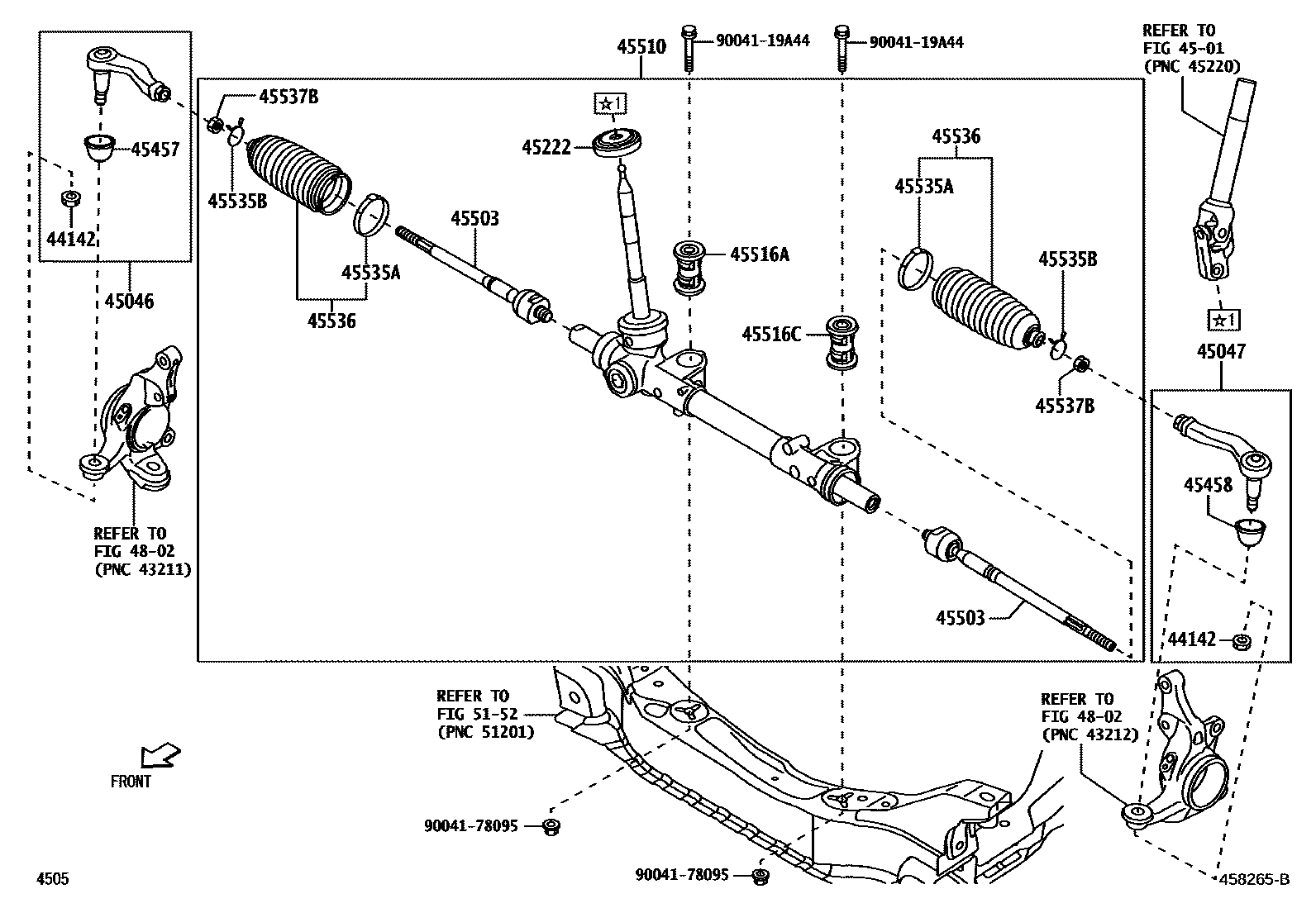

Toyota PIXIS VAN — FRONT STEERING GEAR & LINK

44142NUT, LOCK

main90041-78058iS700,710¥190202112

4501

45046END SUB-ASSY, TIE ROD, RH

main45047-B9440iS700,710¥4,540202112

45047END SUB-ASSY, TIE ROD, LH

main45046-B9470iS700,710¥4,540202112

45222COVER, STEERING GEAR DUST

main45222-B5060iS700,710¥440202112

45457SEAL, STEERING LINK DUST, RH

main45479-87508iS700,710¥700202112

45458SEAL, STEERING LINK DUST, LH

main45479-87508iS700,710¥700202112

45503END SUB-ASSY, STEERING RACK

main45503-B5050iS700,710¥4,120202112

45510GEAR ASSY, STEERING

main45502-B5050iS700,710¥33,200202112

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B5040iS700,710¥1,660202112

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B5050iS700,710¥1,560202112

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-B5010iS700,710¥360202112

45535BCLIP(FOR STEERING RACK BOOT)

main45537-B5010iS700,710¥130202112

45536BOOT, STEERING RACK, NO.2

main45535-B9110iS700,710¥2,010202112

45537BNUT, RACK END LOCK

main90041-70398iS700,710¥120202112

4802

5152

9004119A44

main90041-19A44¥580

9004178095

main90041-78095¥260

19 parts on this diagram · 1 diagram in section
