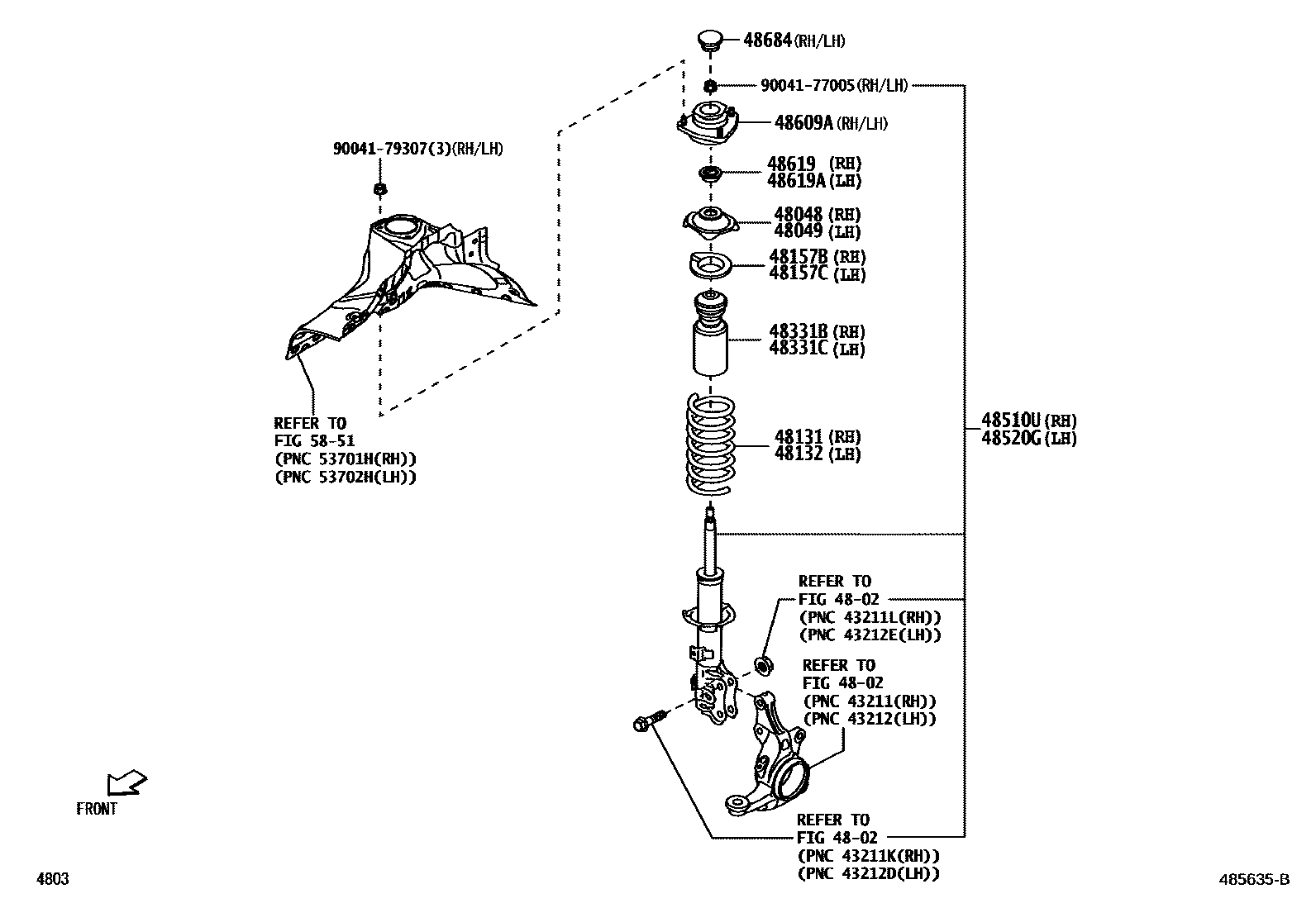

Toyota PIXIS VAN — FRONT SPRING & SHOCK ABSORBER

4802

48048SEAT SUB-ASSY, SPRING, RH

main48470-97403iS700,710¥520202112

48049SEAT SUB-ASSY, SPRING, LH

main48470-97403iS700,710¥520202112

48131SPRING, FRONT COIL, RH

main48131-B5240iS700¥5,700202112

main48131-B5250iS710¥5,700202112

48132SPRING, FRONT COIL, LH

main48131-B5240iS700¥5,700202112

main48131-B5250iS710¥5,700202112

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-B1010iS700,710¥400202112

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-B1010iS700,710¥400202112

48331BBUMPER, FRONT SPRING, RH

main48331-B5020iS700,710¥1,300202112

48331CBUMPER, FRONT SPRING, LH

main48331-B5020iS700,710¥1,300202112

48510UABSORBER SET, SHOCK, FRONT RH

main48510-B9510iS700,710¥17,000202112

48520GABSORBER SET, SHOCK, FRONT LH

main48520-B9510iS700,710¥17,000202112

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-B5010iS700,710¥3,450202112

48619BEARING, STRUT MOUNTING, RH

main48619-B2010iS700,710¥630202112

48619ABEARING, STRUT MOUNTING, LH

main48619-B2010iS700,710¥630202112

48684COVER, BEARING DUST

main48684-B2010iS700,710¥200202112

5851

9004177005

main90041-77005¥160

9004179307

main90041-79307¥160

18 parts on this diagram · 1 diagram in section
