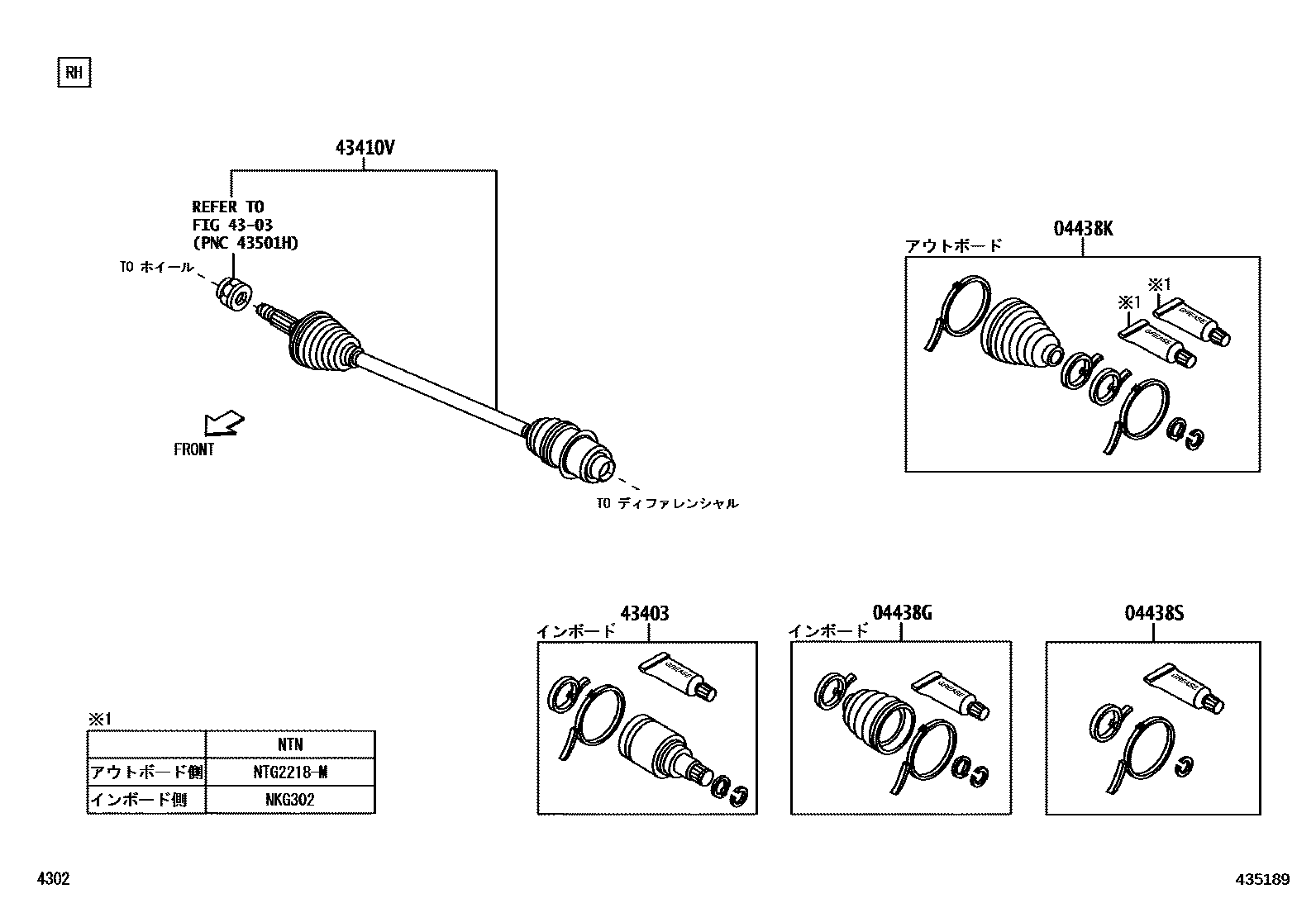

Toyota PIXIS VAN — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B2010iS710¥2,530202112

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B5040iS710¥3,450202112

�m�s�m

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B2010iS710¥1,460202112

4303

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9490iS710¥21,400202112

43410VSHAFT SET, FRONT DRIVE, RH

main43410-B9020iS710¥44,600202112

6 parts on this diagram · 2 diagrams in section
