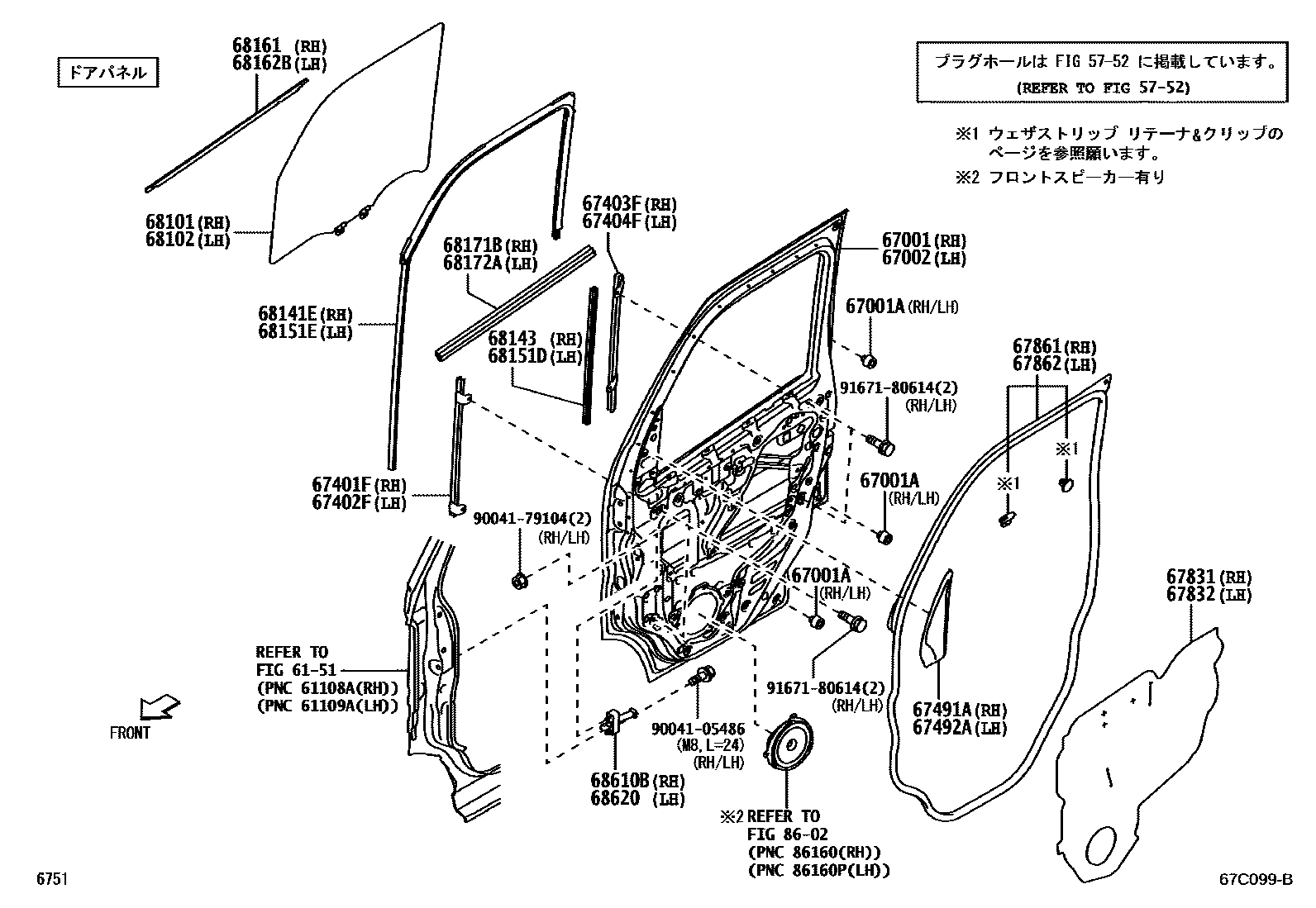

Toyota PIXIS VAN — FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������ 0003 1���������� ����&�����

5752

6151

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-B5120iS700,710..5F..CR;S700,710..DLX,SPL¥38,900202112-202202

sub67001-B5121¥38,900

main67001-B5121iS700,710..5F..CR;S700,710..DLX,SPL¥38,900202203

main67001-B5130iS700,710..CVT..CR¥38,900202112-202202

sub67001-B5131¥38,900

main67001-B5131iS700,710..CVT..CR¥38,900202203

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iS700,710¥170202112

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-B5110iS700,710..SPL¥38,900202112-202202

sub67002-B5111¥38,900

main67002-B5111iS700,710..SPL¥38,900202203

main67002-B5120iS700,710..CVT..DLX;S700,710..5F..(CR,DLX)¥38,900202112-202202

sub67002-B5121¥38,900

main67002-B5121iS700,710..CVT..DLX;S700,710..5F..(CR,DLX)¥38,900202203

main67002-B5130iS700,710..CVT..CR¥38,900202112-202202

sub67002-B5131¥38,900

main67002-B5131iS700,710..CVT..CR¥38,900202203

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-B5050iS700,710¥1,570202112

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-B5050iS700,710¥1,570202112

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-B5030iS700,710¥1,950202112

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-B5030iS700,710¥1,950202112

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-B5020iS700,710¥1,090202112

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-B5020iS700,710¥1,090202112

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-B5110iS700,710..DLX,SPL¥440202112

main67831-B5120iS700,710..CR¥440202112

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-B5110iS700,710..DLX,SPL¥440202112

main67831-B5120iS700,710..CR¥440202112

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-B5040iS700,710¥4,480202112

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-B5040iS700,710¥4,480202112

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-B5090iS700,710..DLX,SPL¥11,400202112

main68101-B5110iS700,710..CR¥27,200202112

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-B5070iS700,710..DLX,SPL¥11,400202112

main68102-B5110iS700,710..CR¥27,200202112

68141ERUN, FRONT DOOR GLASS, RH

main68141-B5040iS700,710¥2,840202112

68143RUN, FRONT DOOR GLASS, LOWER

main68143-B5030iS700,710¥600202112

68151DRUN, FRONT DOOR GLASS, LH

main68144-B5020iS700,710¥600202112

68151ERUN, FRONT DOOR GLASS, LH

main68151-B5020iS700,710¥2,840202112

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68161-B5060iS700,710¥1,730202112

68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH

main68162-B5060iS700,710¥1,730202112

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-B5120iS700,710¥1,730202112

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-B5120iS700,710¥1,730202112

68610BCHECK ASSY, FRONT DOOR, RH

main68610-B5040iS700,710¥1,910202112

68620CHECK ASSY, FRONT DOOR, LH

main68610-B5040iS700,710¥1,910202112

8602

9004105486

main90041-05486¥170

9004179104

main90041-79104¥100

9167180614

main91671-80614¥60

31 parts on this diagram · 3 diagrams in section
