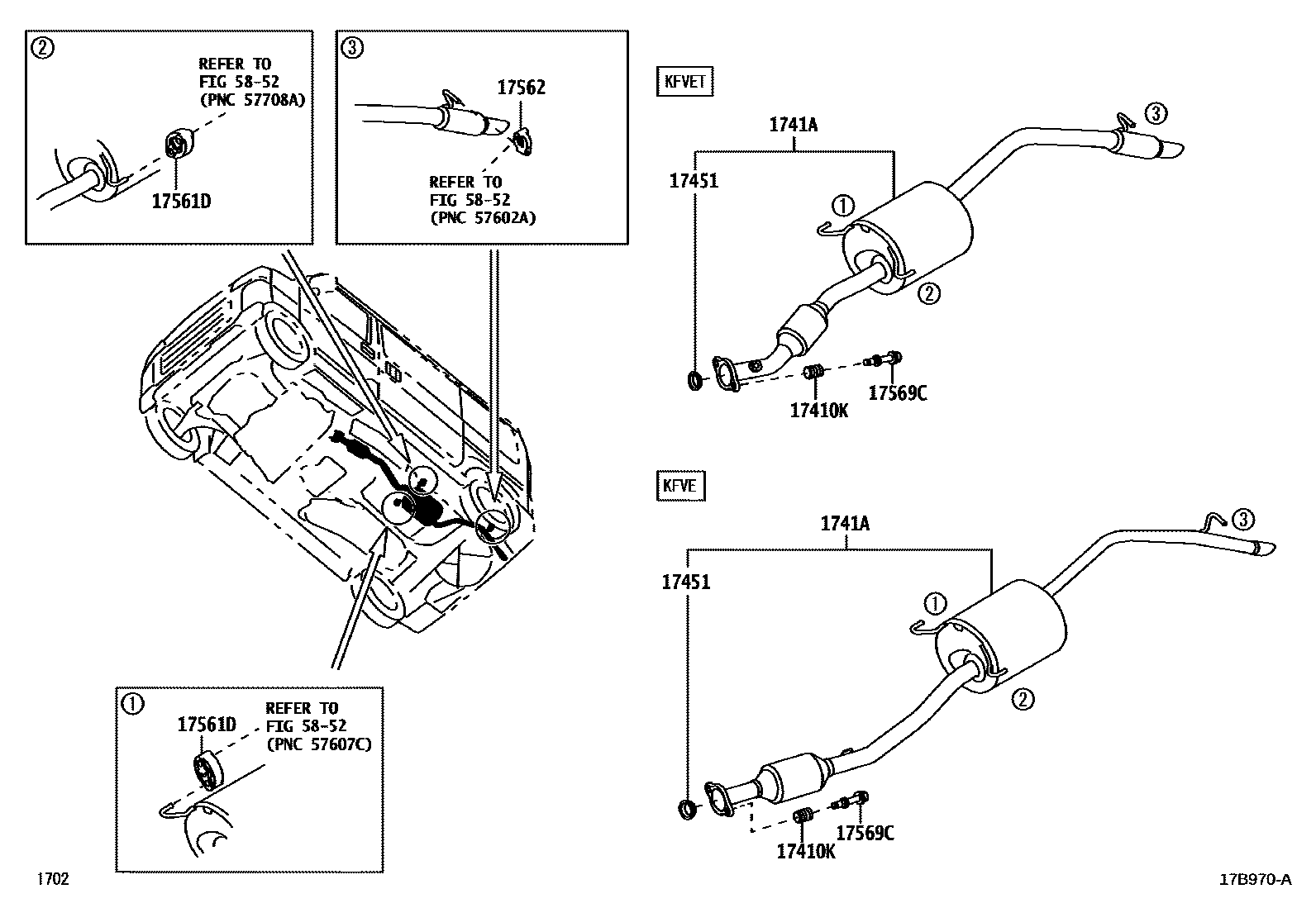

Toyota PIXIS VAN — EXHAUST PIPE

17410KSPRING, EXHAUST PIPE

main17152-97503iKFV#..S700,710¥990202112

1741APIPE SET, EXHAUST

main17400-B9410iKFVE..S700,710..STD¥42,600202112

main17400-B9420iKFVE..S700,710..ULEV¥42,600202112

main17400-B9430iKFVET..S700,710¥45,400202112

17451GASKET, EXHAUST PIPE

main17451-B5021iKFV#..S700,710¥1,650202112

17561DSUPPORT, EXHAUST PIPE, NO.1

main17567-B2010iKFV#..S700,710¥770202112

17562SUPPORT, EXHAUST PIPE, NO.2

main17567-87208iKFV#..S700,710¥950202112

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97201iKFV#..S700,710¥570202112

5852

7 parts on this diagram · 1 diagram in section
