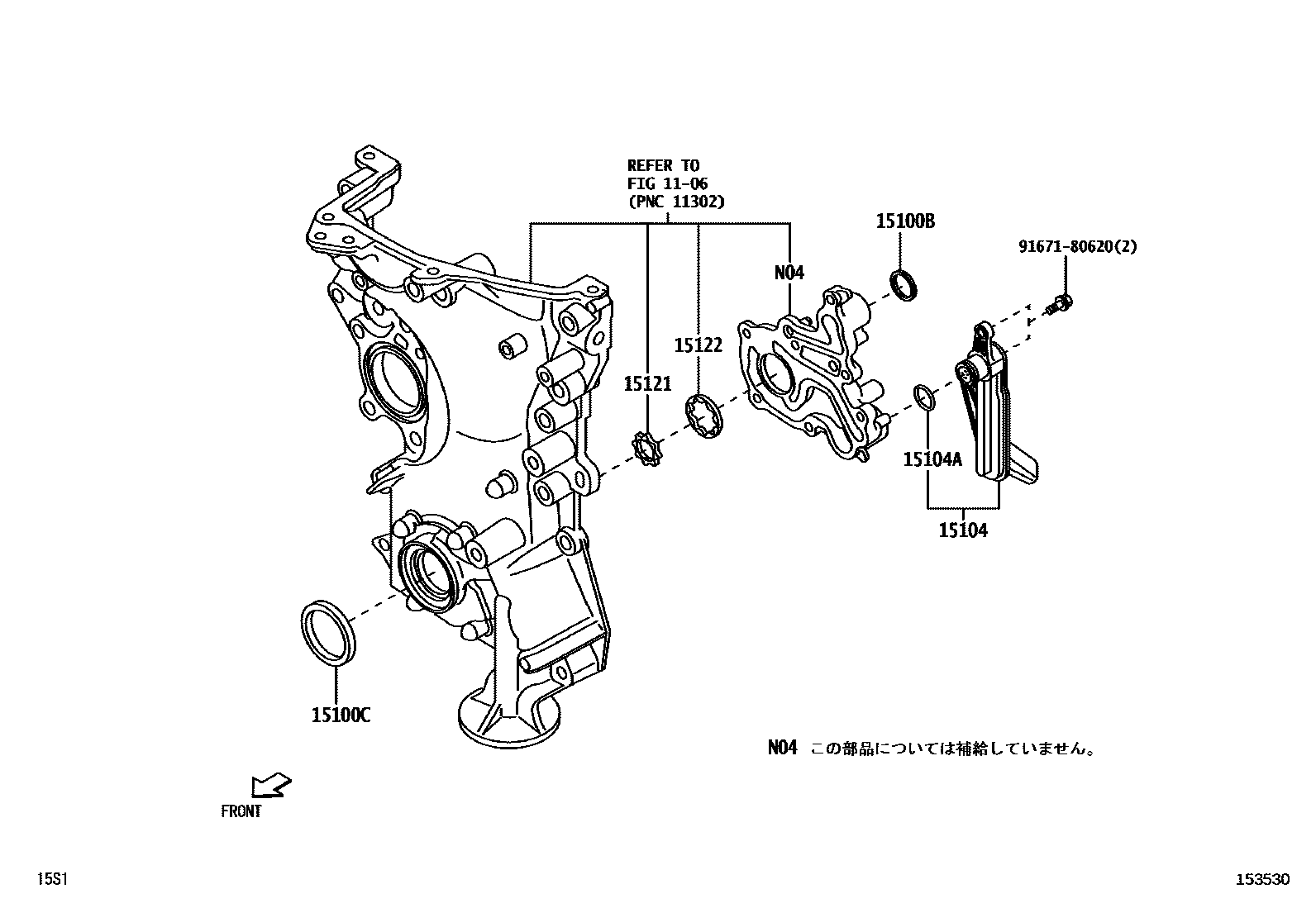

Toyota PIXIS VAN — ENGINE OIL PUMP

1106

15100BRING, O(FOR OIL PUMP)

main90043-01325iKFV#..S700,710¥160202112

15100CSEAL(FOR OIL PUMP)

main90043-11435iKFV#..S700,710¥460202112

15104STRAINER SUB-ASSY, OIL

main15104-B2021iKFV#..S700,710¥1,950202112

15104ARING, O(FOR OIL STRAINER)

main90043-01324iKFV#..S700,710¥210202112

15121GEAR, OIL PUMP DRIVE

main15121-B2011iKFV#..S700,710¥1,880202112

15122GEAR, OIL PUMP DRIVEN

main15122-B2011iKFV#..S700,710¥1,880202112

9167180620

main91671-80620¥60

8 parts on this diagram · 1 diagram in section
