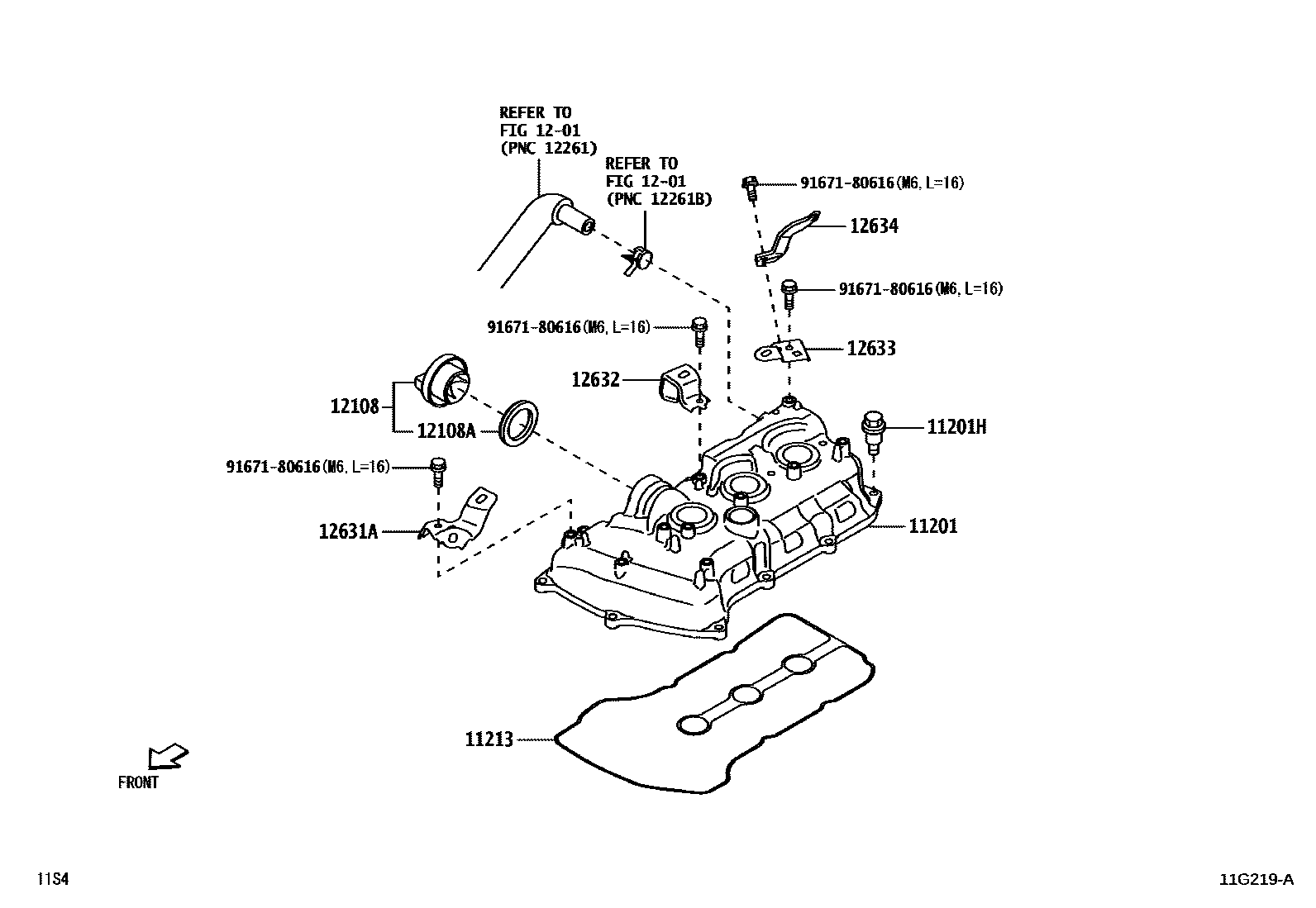

Toyota PIXIS VAN — CYLINDER HEAD

0001 1������������� 0002 1��������� 0003 1���������

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-B2140iKFV#..S700,710¥13,500202112

11201HBOLT(FOR CYLINDER HEAD COVER)

main91551-80620iKFV#..S700,710¥60202112

�l�U�C�k���Q�O

11213GASKET, CYLINDER HEAD COVER

main11213-B2051iKFV#..S700,710¥1,650202112

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-B2020iKFV#..S700,710¥890202112

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001iKFV#..S700,710¥120202112

12631ABRACKET, ENGINE COVER

main82715-B5360iKFV#..S700,710¥600202112

12632BRACKET, ENGINE COVER, NO.2

main82715-B5850iKFV#..S700,710¥600202112

12633BRACKET, ENGINE COVER, NO.3

main82715-B5810iKFV#..S700,710¥390202112

12634BRACKET, ENGINE COVER, NO.4

main82715-B5840iKFV#..S700,710¥390202112

9167180616

main91671-80616¥60

11 parts on this diagram · 3 diagrams in section
