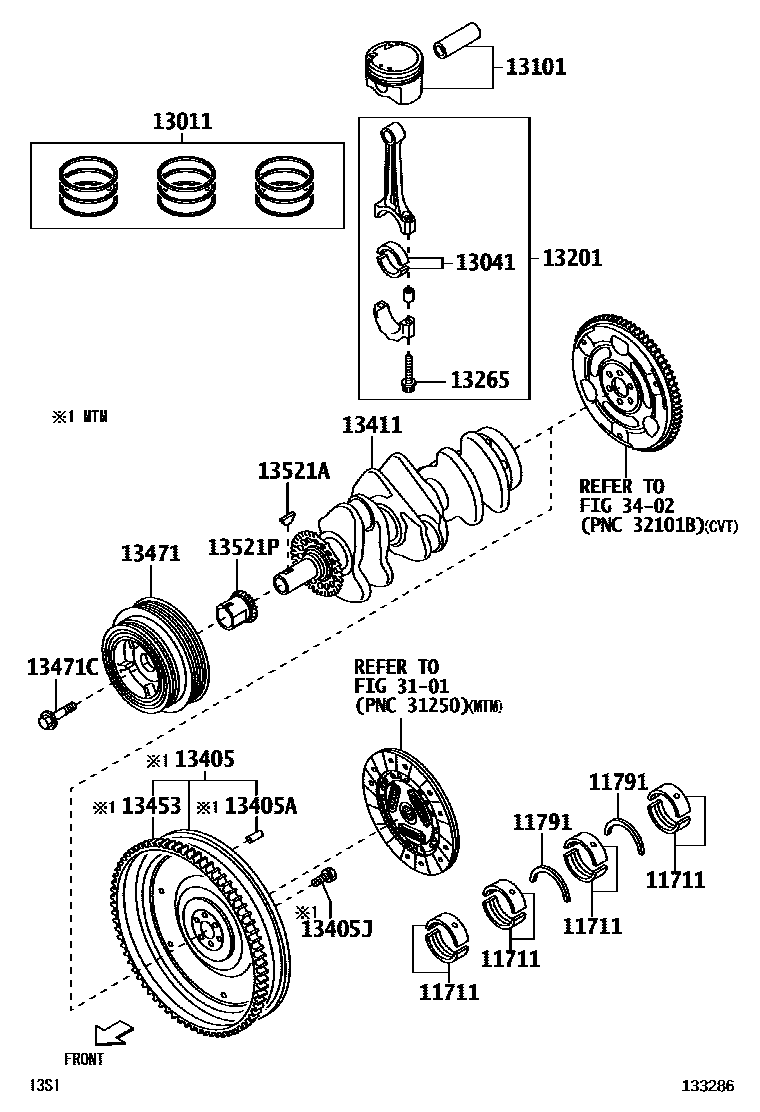

Toyota PIXIS VAN — CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-B2040-02iKFV#..S700,710202112

main11701-B2040-03iKFV#..S700,710202112

main11701-B2040-04iKFV#..S700,710202112

main11701-B2040-05iKFV#..S700,710202112

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B2020iKFV#..S700,710¥690202112

13011RING SET, PISTON

main13011-B2150iKFV#..S700,710¥8,800202112

13041BEARING, CONNECTING ROD

main13041-B2010-01iKFV#..S700,710202112

main13041-B2010-02iKFV#..S700,710202112

main13041-B2010-03iKFV#..S700,710202112

13101PISTON SUB-ASSY, W/PIN

main13101-B2081iKFVET..S700,710¥3,710202112

main13101-B5010iKFVE..S700,710¥3,710202112

13201ROD SUB-ASSY, CONNECTING

main13201-B9060iKFV#..S700,710¥7,400202112

13265BOLT, CONNECTING ROD

main13265-B9020iKFV#..S700,710¥250202112

13405FLYWHEEL SUB-ASSY

main13405-B5010iKFVE..S700,710..5F¥11,400202112

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90042-50152iKFVE..S700,710..5F¥140202112

13405JBOLT(FOR FLYWHEEL)

main90048-01037iKFVE..S700,710..5F¥200202112

13411CRANKSHAFT

main13401-B2040iKFV#..S700,710¥42,600202112

13453GEAR, FLYWHEEL RING

main13453-B5010iKFVE..S700,710..5F¥7,300202112

13471PULLEY, CRANKSHAFT

main13470-B2110iKFV#..S700,710¥12,100202112

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90041-05587iKFV#..S700,710¥270202112

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90042-80034iKFV#..S700,710¥210202112

13521PPULLEY, CRANKSHAFT TIMING

main13521-B2010iKFVET..S700,710¥1,630202112

main13521-B2040iKFVE..S700,710¥1,630202112

3101

3402

18 parts on this diagram · 1 diagram in section
