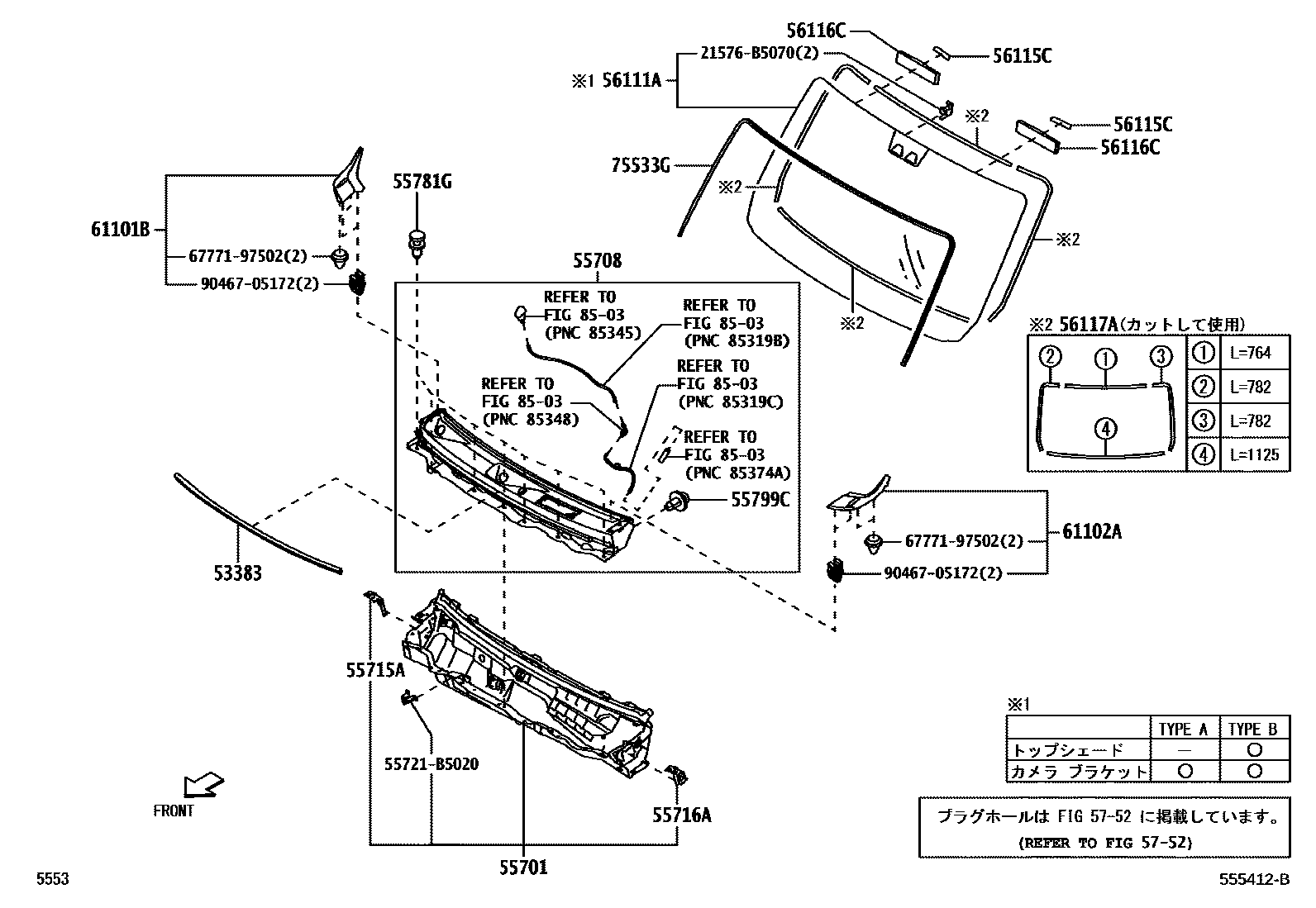

Toyota PIXIS VAN — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-B5020iS700,710¥970202112

55701PANEL SUB-ASSY, COWL

main55700-B5040iS700,710¥12,300202112

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-B5020iS700,710¥9,900202112

55715ABRACE, COWL TOP TO APRON, RH

main53717-B5020iS700,710¥710202112

55716ABRACE, COWL TOP TO APRON, LH

main53718-B5020iS700,710¥710202112

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67569iS700,710¥110202112

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90044-67555iS700,710¥110202112

56111AGLASS, WINDSHIELD

main56101-B5050iS700,710¥63,300202112-202204

sub56101-B5051¥63,300

main56101-B5051iS700,710¥63,300202205

56115CSTOPPER, WINDSHIELD GLASS

main56115-B5020iS700,710¥210202112

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401iS700,710¥210202112

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B5070iS700,710¥1,150202112-202206

sub56117-B5071¥1,150

main56117-B5071iS700,710¥1,150202207

5752

61101BPANEL SUB-ASSY, COWL SIDE, RH

main53445-B5050iS700,710¥1,760202112

61102APANEL SUB-ASSY, COWL SIDE, LH

main53446-B5050iS700,710¥1,760202112

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-B5030iS700,710¥2,990202112-202204

sub75533-B5031¥2,990

main75533-B5031iS700,710¥2,990202205

8503

21576B5070CLIP, PUMP STRAINER

main21576-B5070¥120

55721B5020GUSSET, COWL TOP PANEL, RH

main55721-B5020¥270

6777197502WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-97502¥190

9046705172

main90467-05172¥60

20 parts on this diagram · 1 diagram in section
