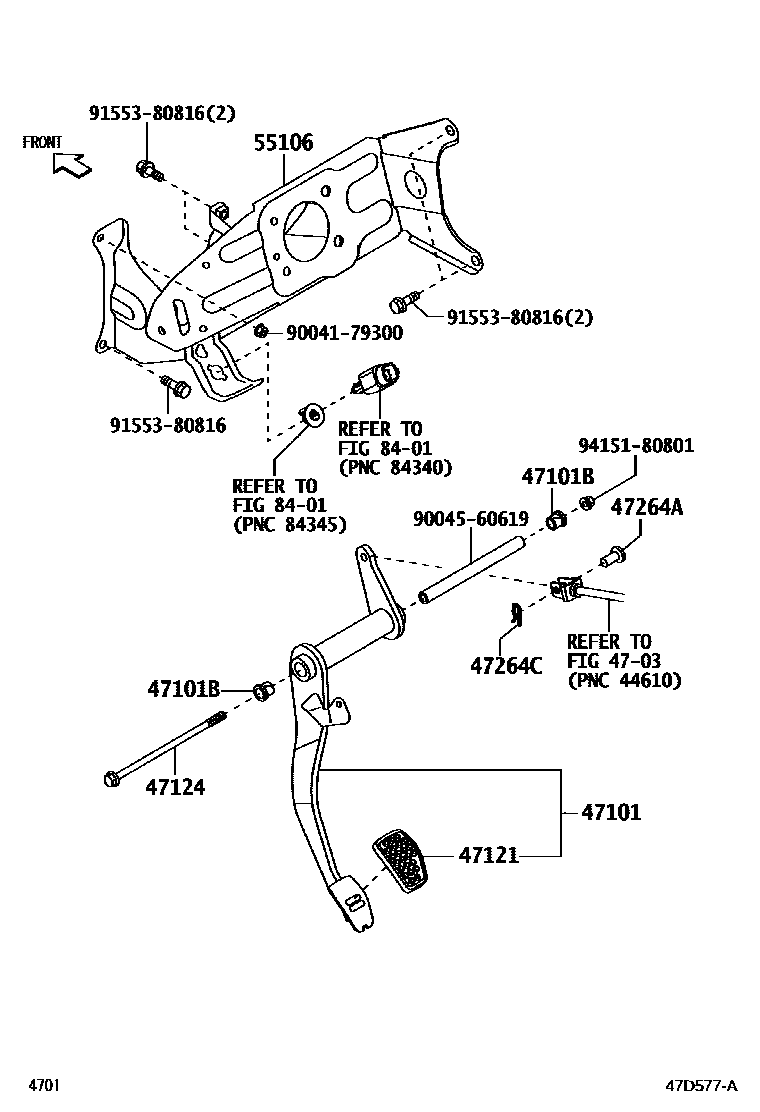

Toyota PIXIS VAN — BRAKE PEDAL & BRACKET

4703

47101PEDAL SUB-ASSY, BRAKE

main47110-B5430iS700,710¥4,900202112

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121iS700,710¥180202112

47121PAD, BRAKE PEDAL

main31321-97501iS700,710¥400202112

47124SHAFT, BRAKE PEDAL

main90041-05607iS700,710¥580202112

47264APIN(FOR PUSH ROD)

main90042-40151iS700,710¥160202112

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iS700,710¥170202112

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B5090iS700,710¥4,020202112

8401

9004179300

main90041-79300¥120

9004560619

main90045-60619¥520

9155380816

main91553-80816¥80

9415180801

main94151-80801¥80

13 parts on this diagram · 1 diagram in section
