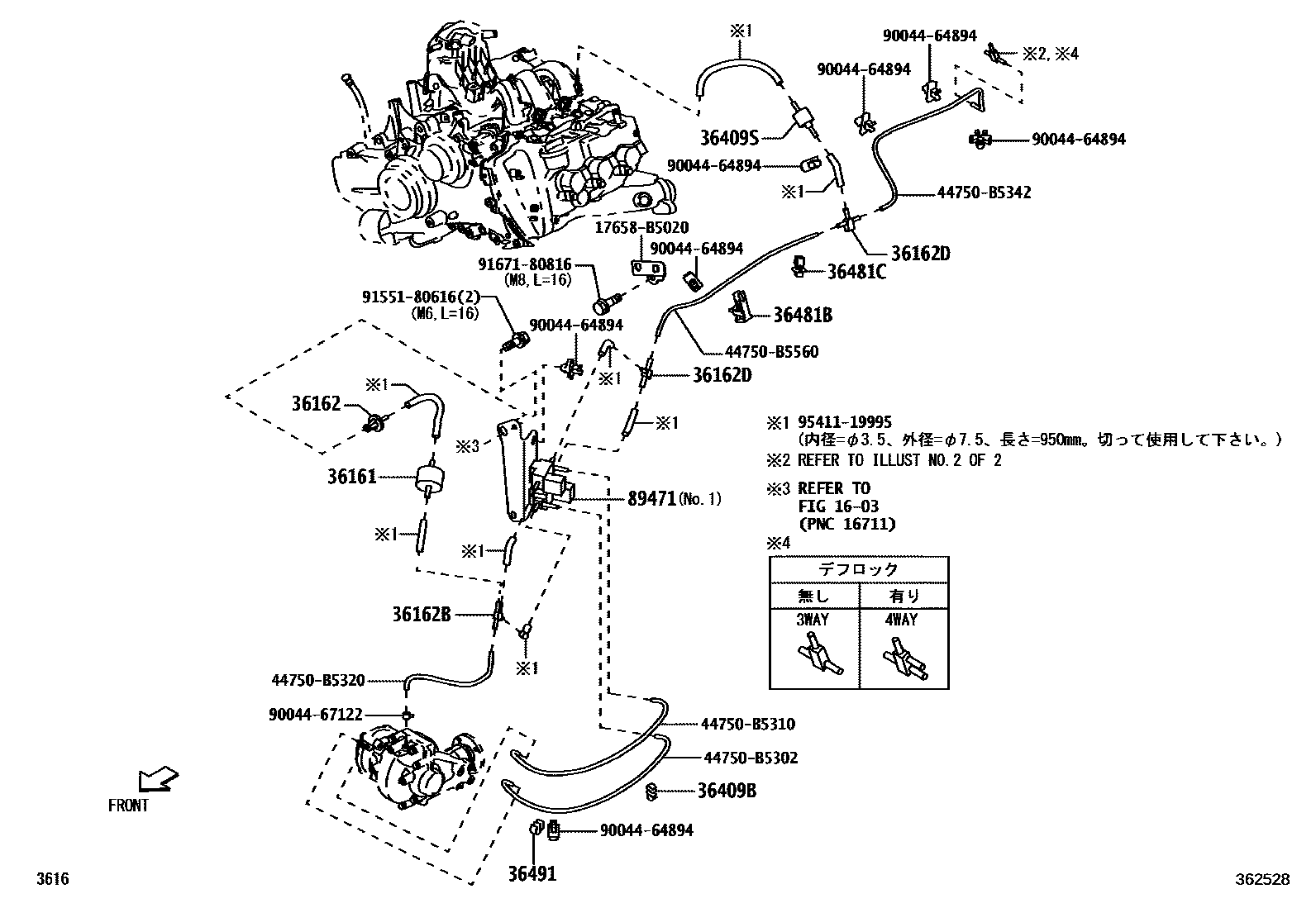

Toyota PIXIS TRUCK — TRANSFER VACUUM PIPING

0001 1 0002 1�������� 0003 1�������� 0004 1�������� 0005 1��������

1603

36161FILTER ASSY, AIR(FOR FRONT)

main90048-24010iS510¥1,160202112

36162WAY, 2(FOR FRONT CHECK VALVE)

main90044-12061iS510¥910202112

36162BWAY, 4(FOR TRANSFER VACUUM)

main90044-14015iS510¥450202112

36162DWAY, 3(FOR REAR CHECK VALVE)

main90044-13053iS510..EXT¥300202112

�_�p�X�y�V����

36409BCLAMP, VACUUM TUBE

main90044-64110iS510202112

36409SVALVE, CHECK (FOR FRONT DRIVE SHIFT)

main90048-20008iS510¥1,460202112

36481BCLAMP, FRONT DRIVE VACUUM TUBE, NO.1

main90044-64916iS510¥160202112

36481CCLAMP, FRONT DRIVE VACUUM TUBE, NO.2

main90949-01C99iS510¥100202112

36491CLAMP, TRANSFER VACUUM TUBE, N0.1

main90044-64108iS510..STD¥110202112

�_�p�X�y�V����

89471VALVE ASSY, VACUUM SWITCHING

main89470-B5180iS510¥6,900202112

�m�n�D�P

main89470-B5190iS510..5MT¥7,100202112

�m�n�D�Q

17658B5020BRACKET, VACUUM HOSE CLAMP

main17658-B5020¥280

44750B5302HOSE ASSY, VACUUM

main44750-B5302¥1,560

44750B5310HOSE ASSY, VACUUM

main44750-B5310¥1,560

44750B5320HOSE ASSY, VACUUM

main44750-B5320¥1,560

44750B5342HOSE ASSY, VACUUM

main44750-B5342¥1,910

44750B5560HOSE ASSY, VACUUM

main44750-B5560¥1,560

9004464894

main90044-64894¥110

9004467122

main90044-67122¥180

9155180616

main91551-80616¥60

9167180816

main91671-80816¥80

9541119995

main95411-19995¥1,540

22 parts on this diagram · 5 diagrams in section
