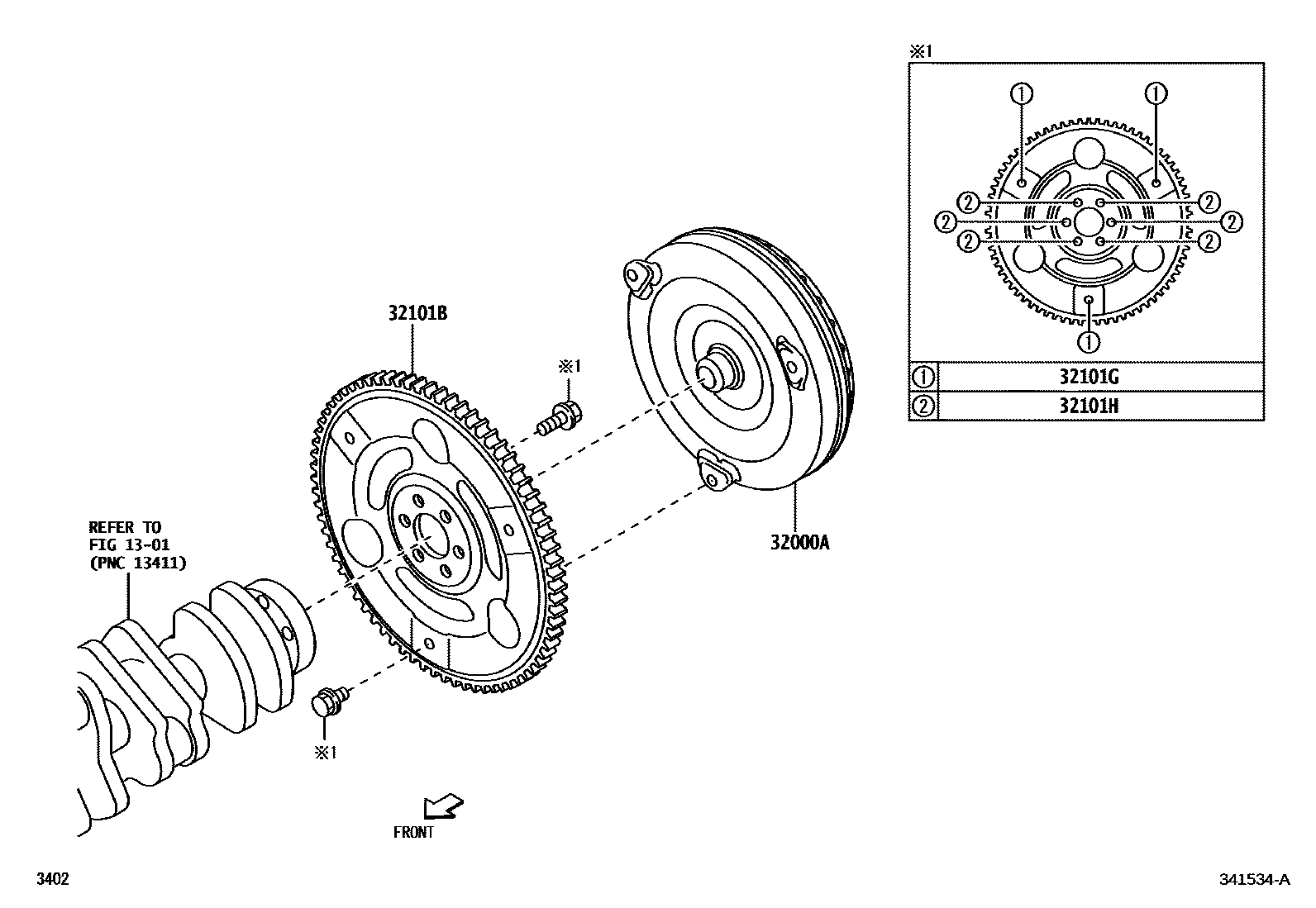

Toyota PIXIS TRUCK — TORQUE CONVERTER, FRONT OIL PUMP(CVT)

1301

32000ACONVERTER ASSY, TORQUE

main32000-B2150iS500,510..CVT¥66,400202112

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B5010iS500,510..CVT¥12,400202112

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05595iS500,510..CVT¥120202112

�l�W�C�k���X,�V���o�[�i�l�W�C�k���X�j

main90041-05596iS500,510..CVT¥120202112

�l�W�C�k���X,�u���b�N�i�l�W�C�k���X�j

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037iS500,510..CVT¥200202112

5 parts on this diagram · 1 diagram in section
