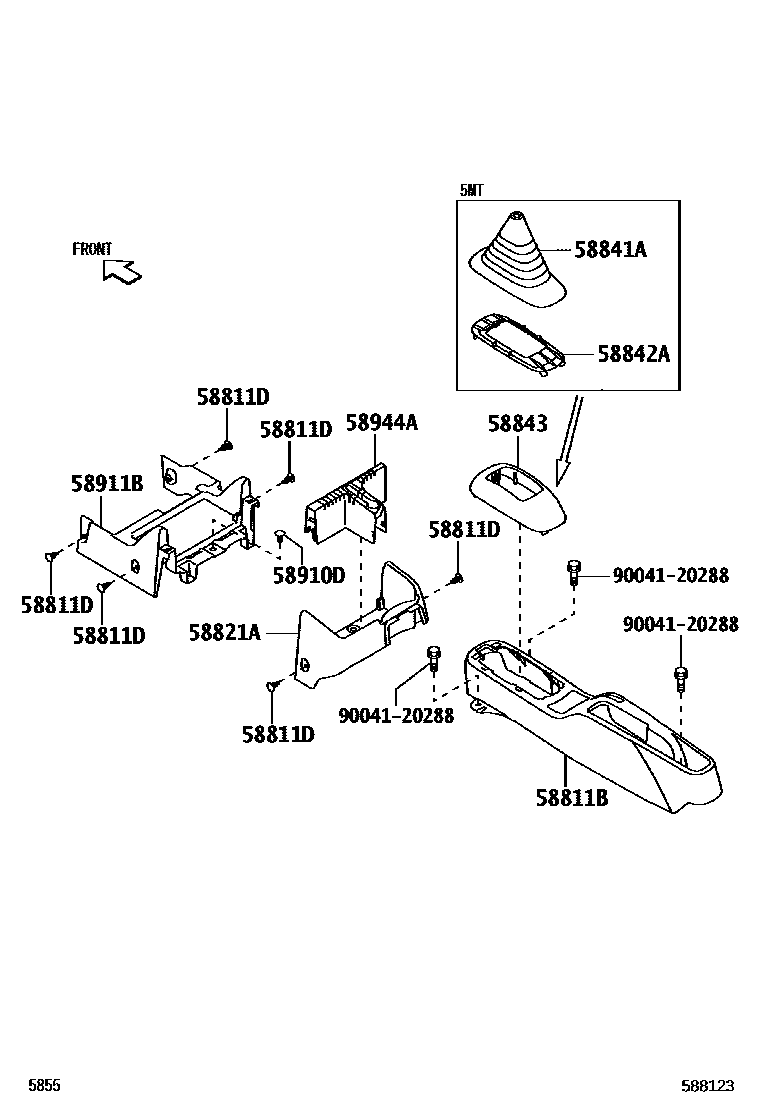

Toyota PIXIS TRUCK — CONSOLE BOX & BRACKET

58811BBOX, CONSOLE

main58811-B5040-C0iS500;S510..STD;S510..EXT..CVT202112

BLACK,TRIM1#

main58811-B5050-C0iS510..EXT..5MT202112

BLACK,TRIM1#

main58811-B5050-C0iS510..EXT..5MT202112

58811DCLIP(FOR CONSOLE BOX)

main90467-05063-C4iS500,510202112

BLACK,TRIM1#

sub90467-05063¥70

58821APANEL, CONSOLE

main58821-B5010-C0iS500,510202112

BLACK,TRIM1#

58841ACOVER, SHIFTING HOLE

main58841-87504-C0iS500,510..5MT202112

BLACK,TRIM1#

sub58841-87504¥1,520

58842AFRAME, SHIFTING HOLE

main58842-87503iS500,510..5MT¥530202112

58843BEZEL, SHIFTING HOLE

main58843-87501-C0iS500,510..CVT202112

BLACK,TRIM1#

sub58843-87501¥2,050

58910DCLIP(FOR CONSOLE BOX)

main90044-67417-C3iS500,510202112

BLACK,TRIM1#

sub90044-67417¥210

58911BPANEL, BOX, NO.1

main55314-B5010-C0iS500,510202112

BLACK,TRIM1#

58944ACOVER, CONSOLE, REAR

main58944-B5010-C0iS500,510202112

BLACK,TRIM1#

9004120288

main90041-20288¥140

10 parts on this diagram · 1 diagram in section
