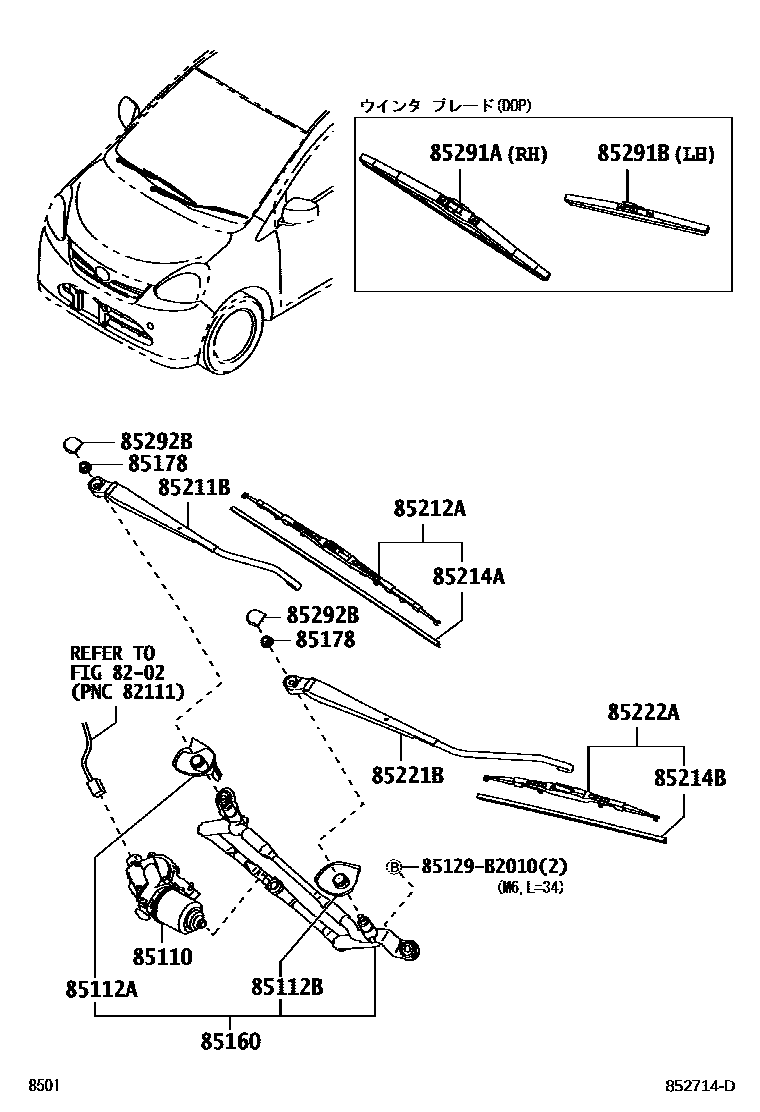

Toyota PIXIS EPOCH — WINDSHIELD WIPER

8202

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B2360iLA300¥22,800201204-201307

sub85110-B2270¥25,000

main85110-B2370iLA310¥22,800201204-201307

sub85110-B2270¥25,000

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85218-B2050iLA300,310¥220201204-201704

85112BCOVER, WINDSHIELD WIPER SHAFT, NO.2

main85228-B2010iLA300,310¥220201204-201704

85160LINK ASSY, WINDSHIELD WIPER

main85150-B2290iLA300,310¥7,900201204-201307

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iLA300,310¥130201204-201307

85211BARM, FRONT WIPER, RH

main85211-B2260iLA300,310¥4,070201204-201307

85212ABLADE, FR WIPER, RH

main85212-B2070iLA300,310¥2,150201204-201307

85214ARUBBER, WIPER, RH

main85214-B2010iLA300,310¥590201204-201307

sub85214-B5020¥590

85214BRUBBER, WIPER, LH

main85221-97401iLA300,310¥380201204-201307

85221BARM, FRONT WIPER, LH

main85221-B2260iLA300,310¥4,900201204-201307

85222ABLADE, FR WIPER, LH

main85222-B2200iLA300,310¥1,550201204-201307

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020iLA300,310¥170201204-201307

85129B2010COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2010¥210

16 parts on this diagram · 1 diagram in section
