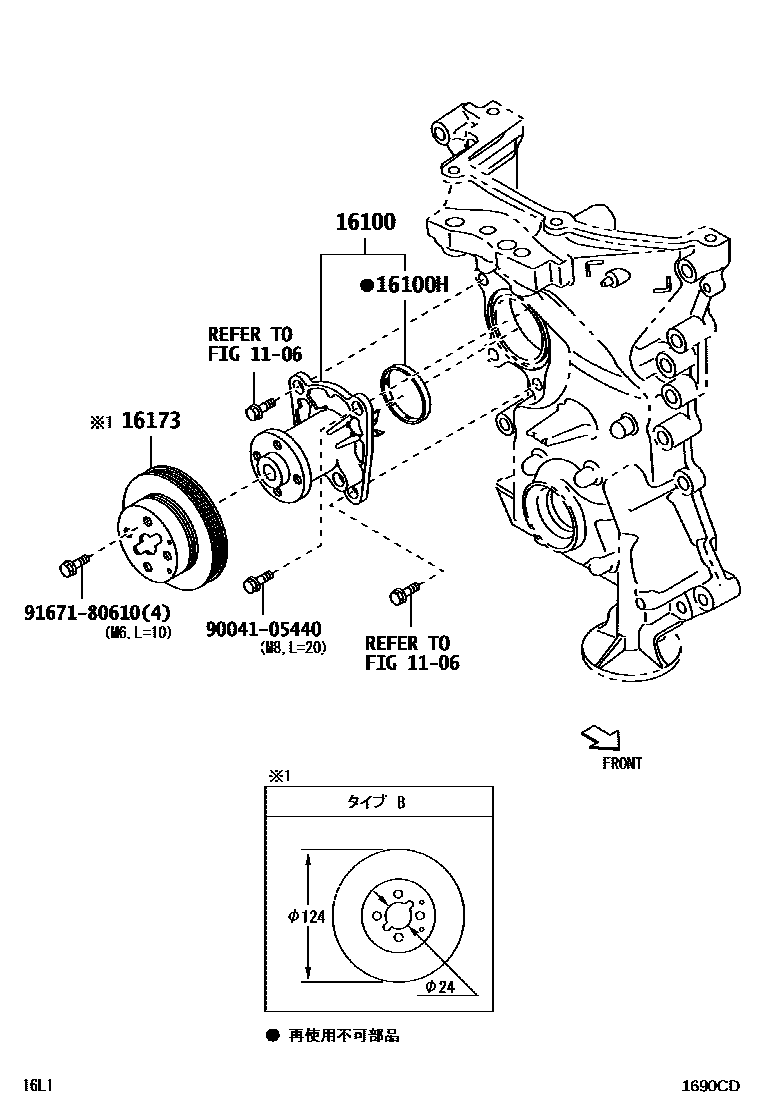

Toyota PIXIS EPOCH — WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-B9454iKFVE..LA300,310¥8,700201204-201208

sub16100-B9455¥8,700

main16100-B9455iKFVE..LA300,310¥8,700201209-201510

sub16100-B9457¥9,500

main16100-B9457iKFVE..LA300,310¥9,500201510-201511

sub16100-B9458¥9,500

main16100-B9458iKFVE..LA300,310¥9,500201512-201601

sub16100-B9459¥9,500

sub16100-B9500¥9,500

main16100-B9459iKFVE..LA300,310¥9,500201602

16100HRING, O(FOR WATER PUMP)

main90043-01323iKFVE..LA300,310¥470201204-201307

16173PULLEY, WATER PUMP

main16173-B2014iKFVE..LA300,310¥2,840201204-201307

9004105440

main90041-05440¥150

9167180610

main91671-80610¥60

6 parts on this diagram · 1 diagram in section
