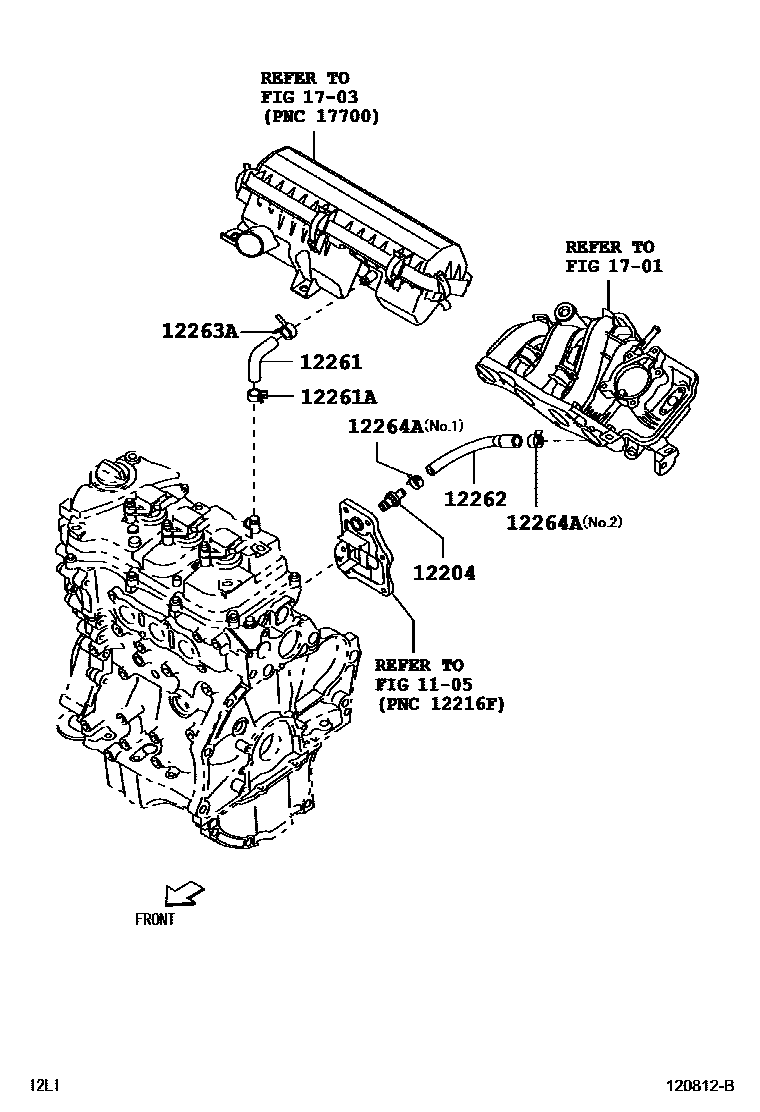

Toyota PIXIS EPOCH — VENTILATION HOSE

1105

12204VALVE SUB-ASSY, VENTILATION

main12204-B2010iKFVE..LA300,310¥940201204-201307

12261HOSE, VENTILATION

main12261-B2040iKFVE..LA300,310¥360201204-201307

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main96136-41901iKFVE..LA300,310¥120201204-201307

12262HOSE, VENTILATION, NO.2

main12261-B2051iKFVE..LA300,310¥600201204-201307

12263ACLIP(FOR VENTILATION HOSE)

main90044-66026iKFVE..LA300,310¥250201204-201307

12264ACLIP(FOR VENTILATION HOSE)

main90044-67314iKFVE..LA300,310¥110201204-201307

main96137-41901iKFVE..LA300,310¥160201204-201307

1701

1703

9 parts on this diagram · 1 diagram in section
