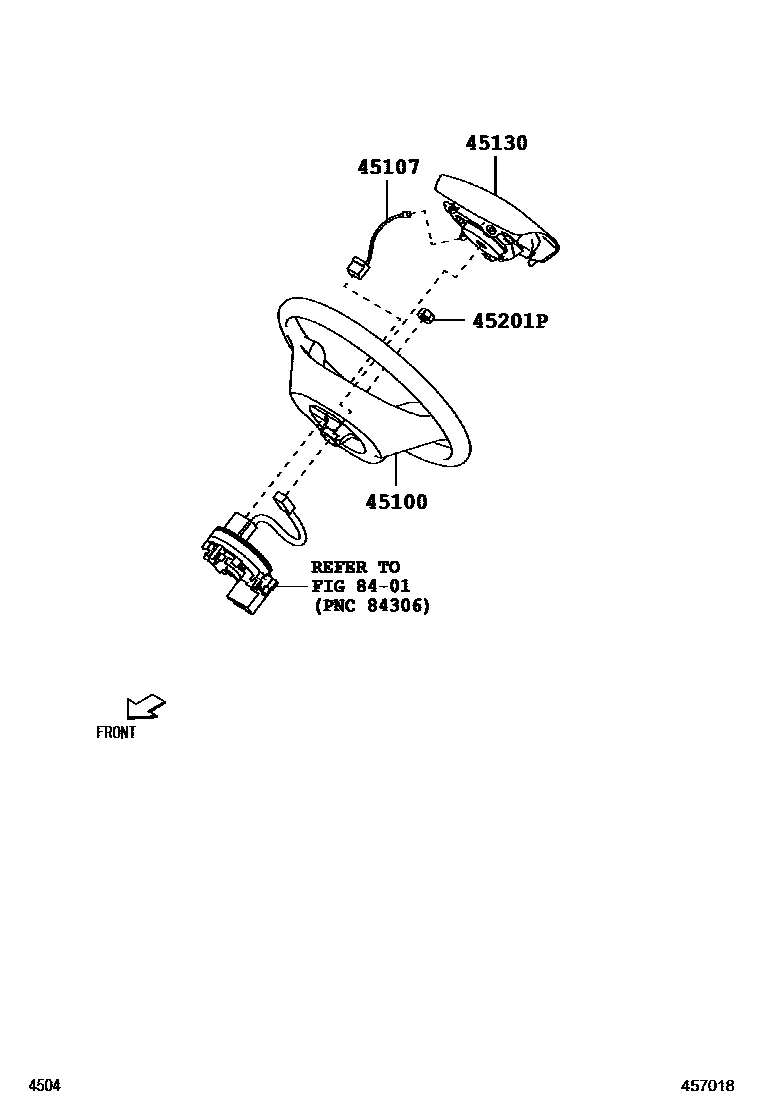

Toyota PIXIS EPOCH — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45102-B2240-B0iLA300,310..D,GF,L,LF,X,XF201307

main45102-B2250-B0iLA300..G201307

main45102-B2590-B0iLA300..G201204-201307

main45102-B2720-B0iLA300,310..D,GF,L,LF,X,XF201204-201307

45107WIRE SUB-ASSY, HORN BUTTON

main45107-B2050iLA300,310¥570201204-201307

45130BUTTON ASSY, HORN

main45130-B2560-B0iLA300,310..D,L,LF201204-201307

DK.GRAY,TRIM1#

main45130-B2570-B0iLA300,310..G,GF,L,LF,X,XF201204-201307

DK.GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90041-70014iLA300,310¥120201204-201307

8401

5 parts on this diagram · 1 diagram in section
