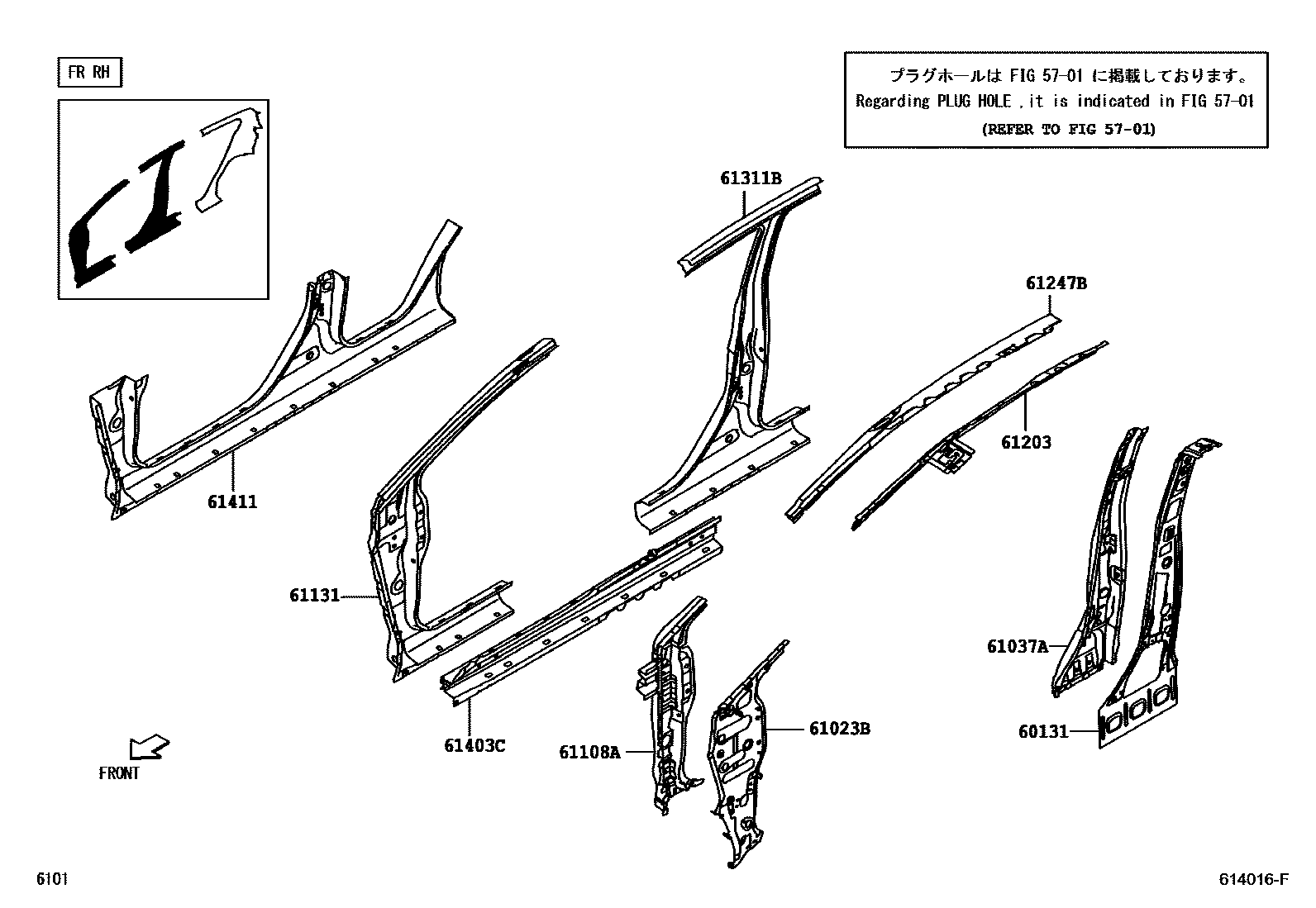

Toyota PIXIS EPOCH — SIDE MEMBER

0001 1FR RH 0002 1FR LH 0003 1RR RH 0004 1RR LH 0005 1

5701

60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

main60131-B2080iLA300,310¥9,100201204-201307

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-B2240iLA300,310¥9,100201204-201307

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-B2280iLA300,310¥13,100201204-201307

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-B2180iLA300,310¥13,100201204-201307

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-B2241iLA300,310¥24,000201204-201307

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-B2240iLA300,310¥7,700201204-201307

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-B2190iLA300,310¥7,700201204-201307

61311BPILLAR, CENTER BODY, OUTER RH

main61311-B2191iLA300,310¥29,000201204-201307

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-B2190iLA300,310¥11,100201204-201307

61411PANEL, ROCKER, OUTER RH

main61411-B2381iLA300,310¥25,500201204-201407

sub61411-B2382¥33,900

sub90048-71292¥120

main61411-B2382iLA300,310¥33,900201407

11 parts on this diagram · 5 diagrams in section
