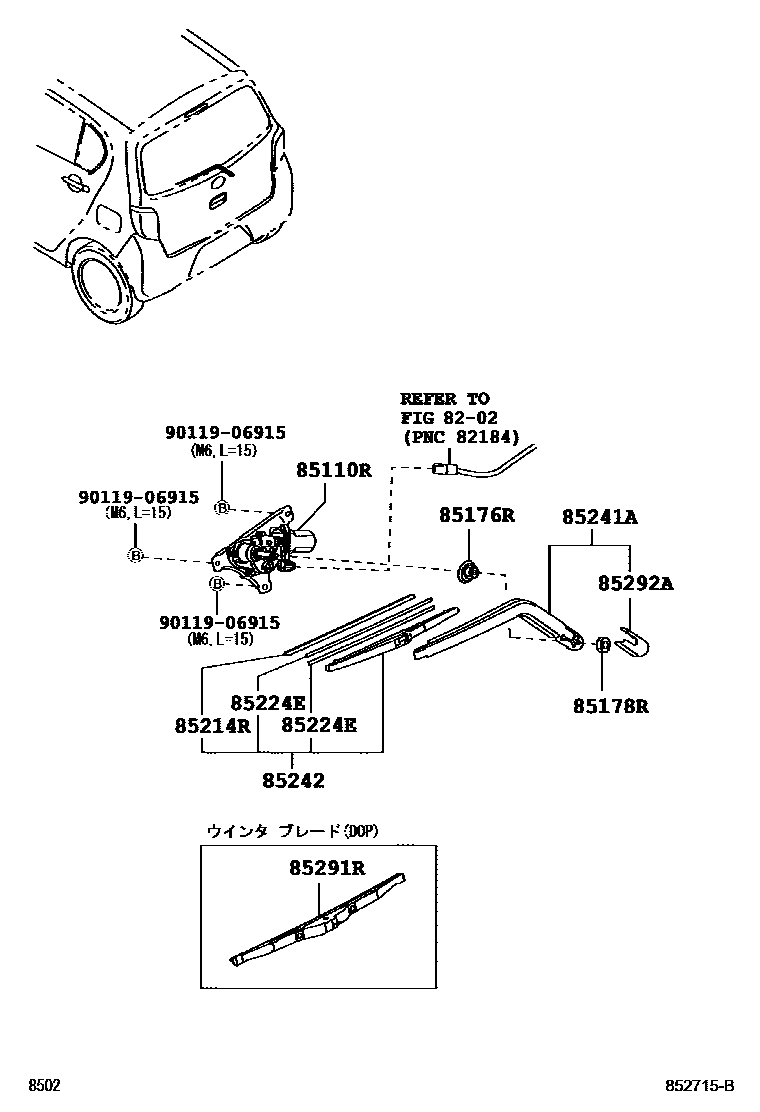

Toyota PIXIS EPOCH — REAR WIPER

8202

85110RMOTOR ASSY, REAR WIPER

main85130-B2080iLA310¥17,900201204-201307

main85130-B2080iLA310¥17,900201204-201307

main85130-B2080iLA310¥17,900201204-201307

85176RCAP, REAR WIPER LINK

main85176-87603iLA310¥390201204-201307

main85176-87603iLA310¥390201204-201307

main85176-87603iLA310¥390201204-201307

85178RNUT (FOR REAR WIPER ARM SETTING)

main94130-60640iLA310¥60201204-201307

main94130-60640iLA310¥60201204-201307

main94130-60640iLA310¥60201204-201307

main94130-60640iLA310¥60201204-201307

85214RRUBBER, REAR WIPER

main85214-12310iLA310¥600201204-201307

main85214-12310iLA310¥600201204-201307

main85214-12310iLA310¥600201204-201307

main85214-12310iLA310¥600201204-201307

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-12710iLA310¥460201204-201307

main85224-12710iLA310¥460201204-201307

main85224-12710iLA310¥460201204-201307

85241AARM, REAR WIPER

main85241-B2060iLA310¥3,250201204-201307

main85241-B2060iLA310¥3,250201204-201307

main85241-B2060iLA310¥3,250201204-201307

85242BLADE, RR WIPER

main85242-12090iLA310¥1,100201204-201307

main85242-12090iLA310¥1,100201204-201307

main85242-12090iLA310¥1,100201204-201307

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-28030iLA310¥360201204-201307

main85292-28030iLA310¥360201204-201307

main85292-28030iLA310¥360201204-201307

9011906915

main90119-06915¥60

11 parts on this diagram · 1 diagram in section
