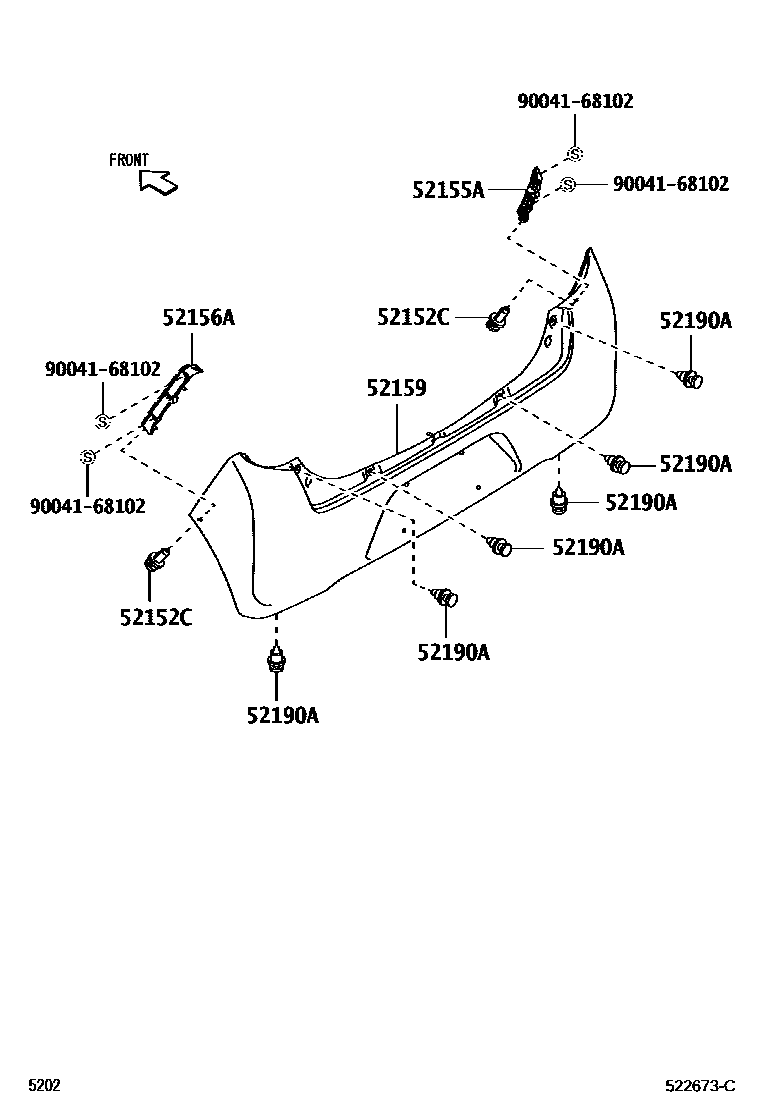

Toyota PIXIS EPOCH — REAR BUMPER & BUMPER STAY

52152CCLIP, REAR BUMPER SIDE

main90044-67585iLA300,310¥120201204-201307

main90044-67585iLA300,310¥120201307-201704

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-B2270iLA300,310¥1,090201204-201307

main52155-B2270iLA300,310¥1,090201307

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-B2280iLA300,310¥1,090201204-201307

main52156-B2280iLA300,310¥1,090201307

52159COVER, REAR BUMPER

main52159-B2690-A0iLA300,310201204-201307

WHITE,W09

sub52159-B2690¥26,900

main52159-B2690-A0iLA300,310201307

WHITE,W09

sub52159-B2690¥26,900

main52159-B2690-A1iLA300,310..G,GF,X,XF201307

WHITE PEARL MC.CS,W24

sub52159-B2690¥26,900

main52159-B2690-A1iLA300,310..G,GF,L,LF,X,XF201204-201307

WHITE PEARL MC.CS,W24

sub52159-B2690¥26,900

main52159-B2690-A1iLA300,310..G,GF,X,XF201307

WHITE PEARL MC.CS,W24 ,X99

sub52159-B2690¥26,900

main52159-B2690-B0iLA300,310..G,GF,L,LF,X,XF201204-201307

SILVER ME.,S28

sub52159-B2690¥26,900

main52159-B2690-B0iLA300,310..G,GF,L,LF,X,XF201307

SILVER ME.,S28

sub52159-B2690¥26,900

main52159-B2690-C0iLA300,310..G,GF,L,LF,X,XF201307

BLACK M.M.,X07

sub52159-B2690¥26,900

main52159-B2690-C0iLA300,310..G,GF,L,LF,X,XF201204-201307

BLACK M.M.,X07

sub52159-B2690¥26,900

main52159-B2690-D0iLA300,310..G,GF,L,LF,X,XF201307

BROWN MC.CS,R59

sub52159-B2690¥26,900

main52159-B2690-D0iLA300,310..G,GF,L,LF,X,XF201204-201307

BROWN MC.CS,R59

sub52159-B2690¥26,900

main52159-B2690-D1iLA300,310..L,LF201307

RED,R40 ,XA1

sub52159-B2690¥26,900

main52159-B2690-D1iLA300,310..G,GF,X,XF201307

RED,R40

sub52159-B2690¥26,900

main52159-B2690-E0iLA300,310..G,GF,L,LF,X,XF201204-201307

IVORY,T19

sub52159-B2690¥26,900

main52159-B2690-E0iLA300,310..G,GF,L,LF,X,XF201307

IVORY,T19

sub52159-B2690¥26,900

main52159-B2690-E1iLA300,310..G,GF,L,LF,X,XF201204-201307

LT.ROSE,T28

sub52159-B2690¥26,900

main52159-B2690-E2iLA300,310..L,LF,X,XF201210-201307

LT.ROSE M.M.,T22

sub52159-B2690¥26,900

main52159-B2690-E2iLA300,310..G,GF,L,LF,X,XF201307

LT.ROSE M.M.,T22

sub52159-B2690¥26,900

main52159-B2690-F0iLA300,310..X,XF201504-201608

YELLOW,XA0 ,Y09

sub52159-B2690¥26,900

main52159-B2690-F0iLA300,310..X,XF201504-201608

YELLOW,XA0

sub52159-B2690¥26,900

main52159-B2690-J0iLA300,310..G,GF,L,LF,X,XF201307

LT.BLUE,B73

sub52159-B2690¥26,900

main52159-B2690-J0iLA300,310..G,GF,L,LF,X,XF201204-201307

LT.BLUE,B73

sub52159-B2690¥26,900

main52159-B2690-J1iLA300,310..G,GF,L,LF,X,XF201307-201608

DK.PURPLISH BLUE ME.CS,B70

sub52159-B2690¥26,900

main52159-B2690-J1iLA300,310..L,LF,X,XF201210-201307

DK.PURPLISH BLUE ME.CS,B70

sub52159-B2690¥26,900

52190ACLIP

main90044-68320iLA300,310¥170201204-201307

sub90044-68378¥110

main90044-68320iLA300,310¥170201307-201704

sub90044-68378¥110

9004168102

main90041-68102¥140

6 parts on this diagram · 1 diagram in section
