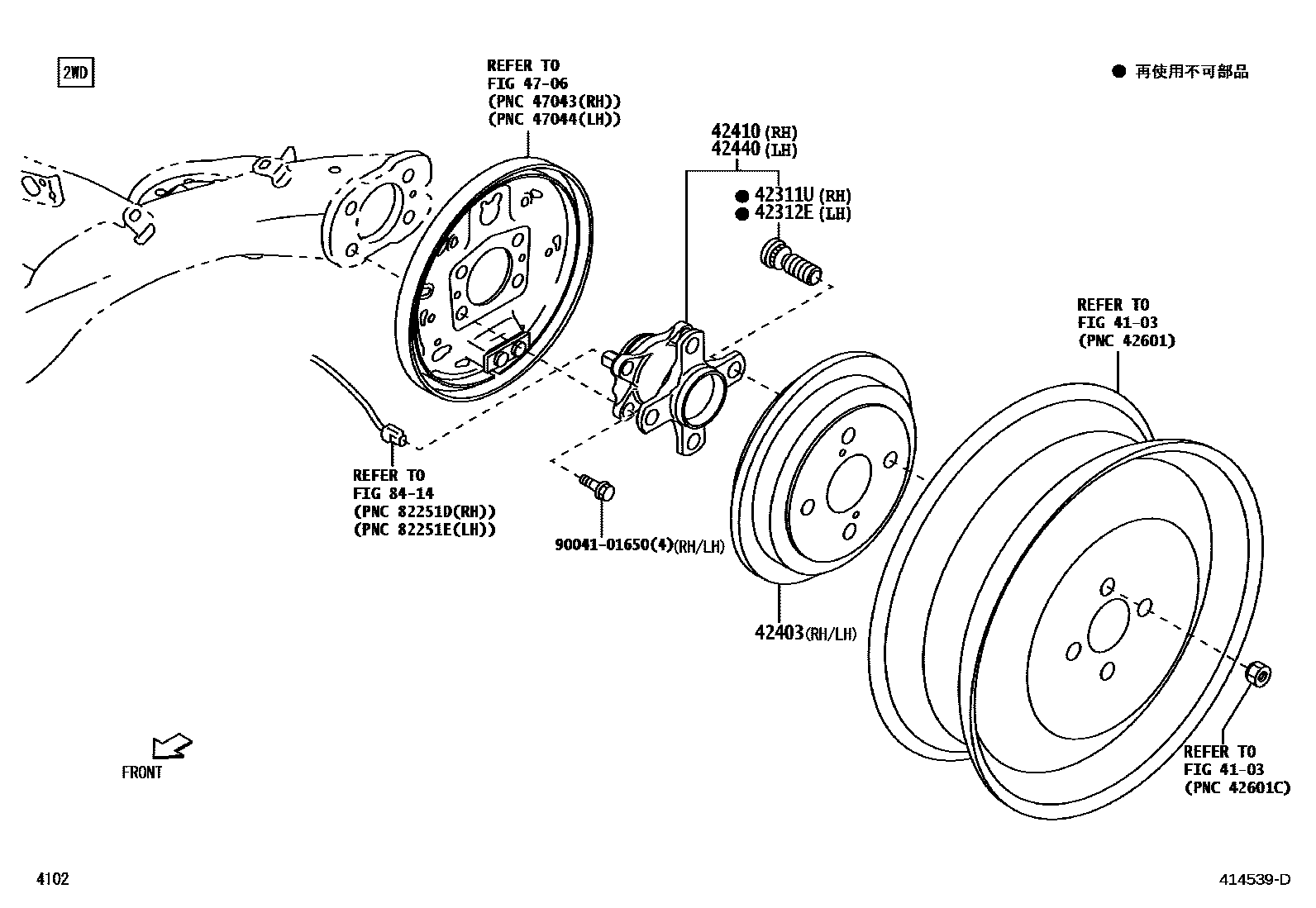

Toyota PIXIS EPOCH — REAR AXLE SHAFT & HUB
4103
42311UBOLT, HUB(FOR REAR AXLE RH)
�l�P�Q�C�k���R�X
�l�P�Q�C�k���R�X
�l�P�Q�C�k���R�S
�l�P�Q�C�k���R�S
42312SHAFT, REAR AXLE, LH
42312EBOLT, HUB(FOR REAR AXLE LH)
�l�P�Q�C�k���R�X
�l�P�Q�C�k���R�X
�l�P�Q�C�k���R�S
�l�P�Q�C�k���R�S
42403DRUM SUB-ASSY, REAR BRAKE
42410HUB & BEARING ASSY, REAR AXLE, RH
42440HUB & BEARING ASSY, REAR AXLE, LH
4706
8414
9004101650
10 parts on this diagram · 2 diagrams in section
