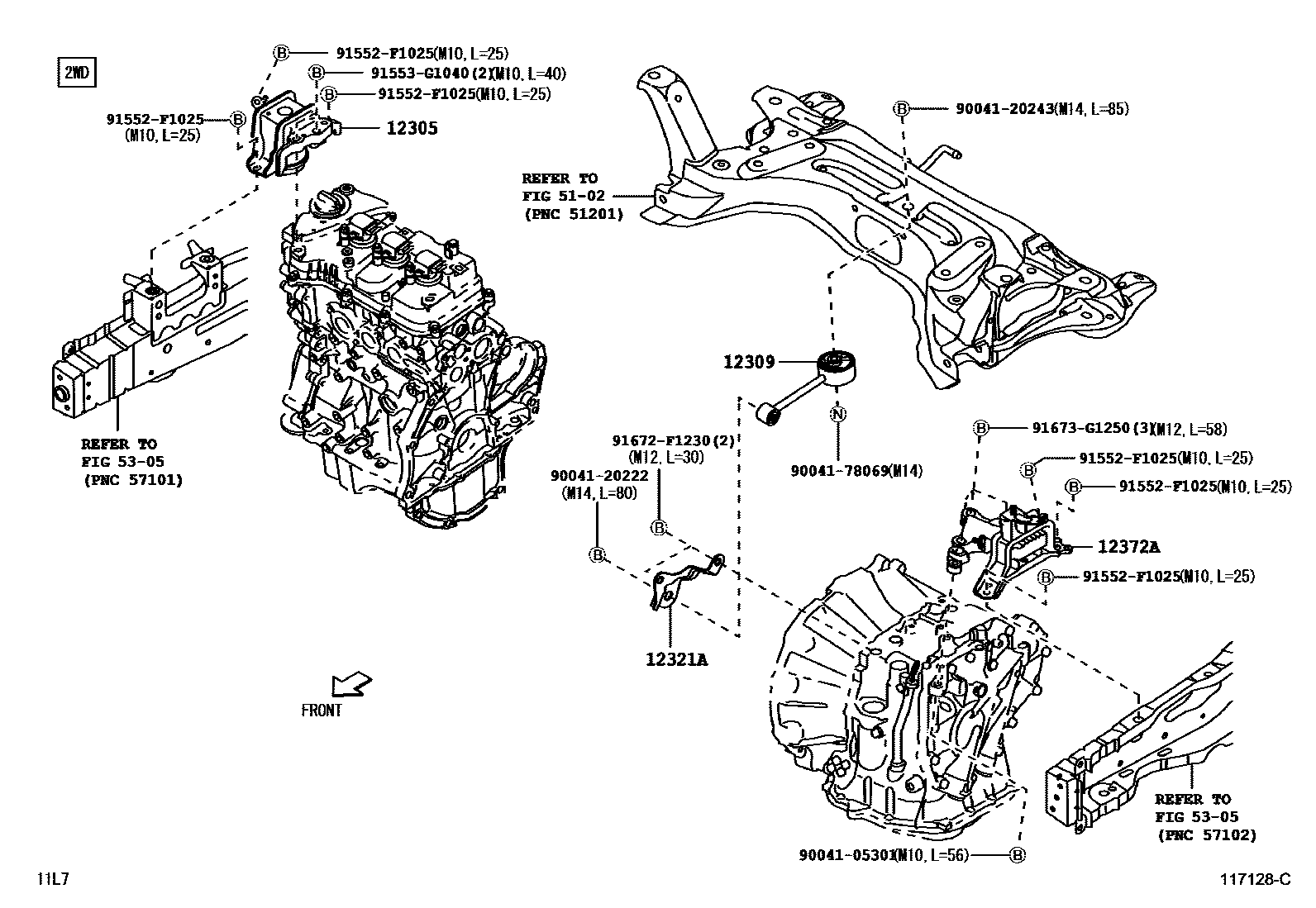

Toyota PIXIS EPOCH — MOUNTING

0001 12WD 0002 14WD

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-B2210iKFVE..LA300,310¥7,000201204-201307

main12305-B2210iKFVE..LA300,310¥7,000201307

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-B2070iKFVE..LA300¥6,300201204-201307

main12309-B2070iKFVE..LA300¥6,300201307

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-B2030iKFVE..LA300¥2,320201307

main12321-B2030iKFVE..LA300¥2,320201204-201307

main12321-B2090iKFVE..LA310¥3,350201307

main12321-B2090iKFVE..LA310¥3,350201204-201307

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-B2050iKFVE..LA310¥5,600201204-201307

main12306-B2050iKFVE..LA310¥5,600201307

main12306-B2080iKFVE..LA300¥6,800201204-201307

main12306-B2080iKFVE..LA300¥6,800201307

5102

5305

9004105301

main90041-05301¥290

9004120222

main90041-20222¥360

9004120243

main90041-20243¥400

9004178069

main90041-78069¥220

91552F1025

main91552-F1025¥140

91553G1040

main91553-G1040¥290

91672F1230

main91672-F1230¥190

91673G1250

main91673-G1250¥240

14 parts on this diagram · 2 diagrams in section
