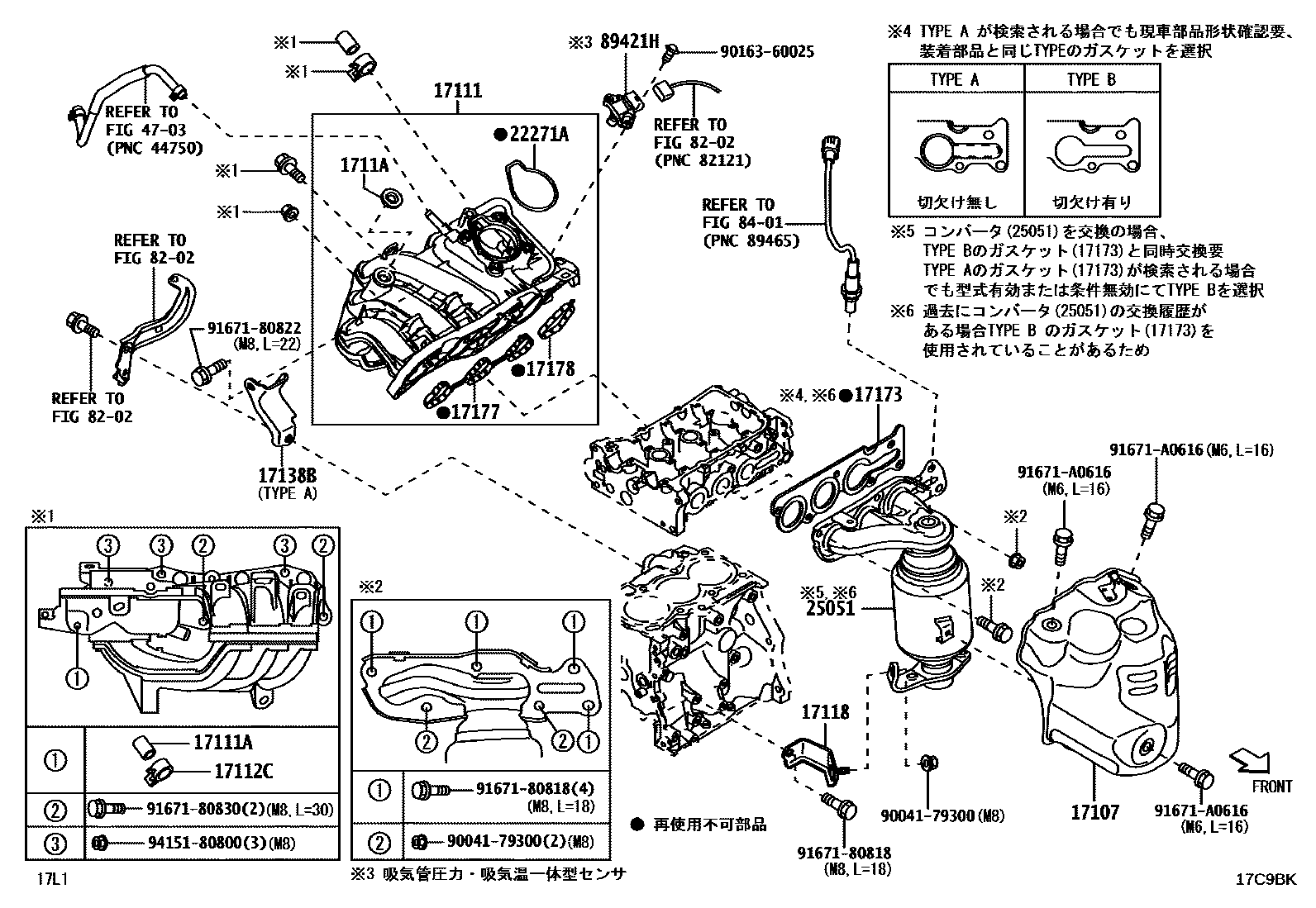

Toyota PIXIS EPOCH — MANIFOLD
17107INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17112CCLIP(FOR INTAKE MANIFOLD)
17118STAY, MANIFOLD
1711AGROMMET
17138BSTAY, INTAKE MANIFOLD
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
22271AGASKET, THROTTLE BODY
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
4703
8202
8401
89421HSENSOR, VACUUM
9004179300
9016360025
9167180818
9167180822
9167180830
91671A0616
9415180800
23 parts on this diagram · 3 diagrams in section
