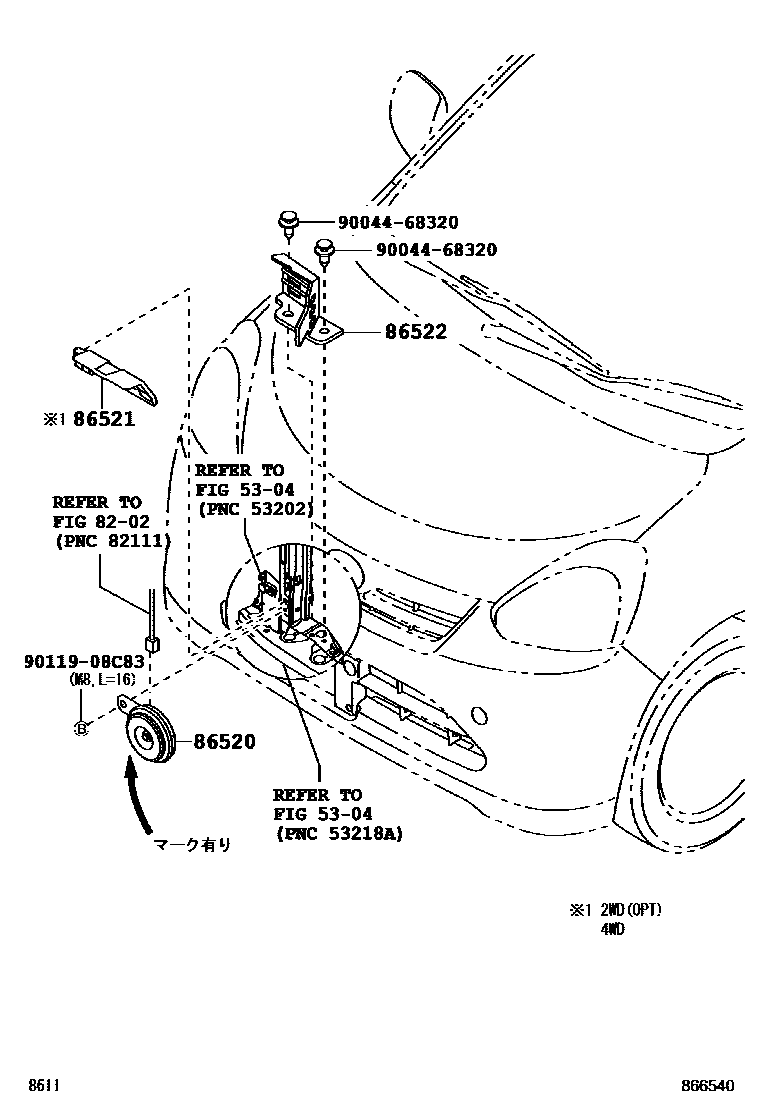

Toyota PIXIS EPOCH — HORN

0001 1 0002 1

5304

8202

86520HORN ASSY, LOW PITCHED

main86520-B2040iLA300,310¥2,530201307

main86520-B5010iLA300,310¥2,530201204-201307

main86520-B5010iLA300,310¥2,530201307

86521COVER, LOW PITCHED HORN

main86522-B2030iLA300¥1,100201204-201307

main86522-B2070iLA300,310¥1,740201307-201607

sub86522-B2160¥1,740

main86522-B2160iLA300,310¥1,740201608

86522PROTECTOR, HORN

main86522-B2040iLA300,310¥1,100201204-201307

main86522-B2060iLA300,310¥1,020201307

9004468320

main90044-68320¥170

9011908C83

main90119-08C83¥80

7 parts on this diagram · 2 diagrams in section
