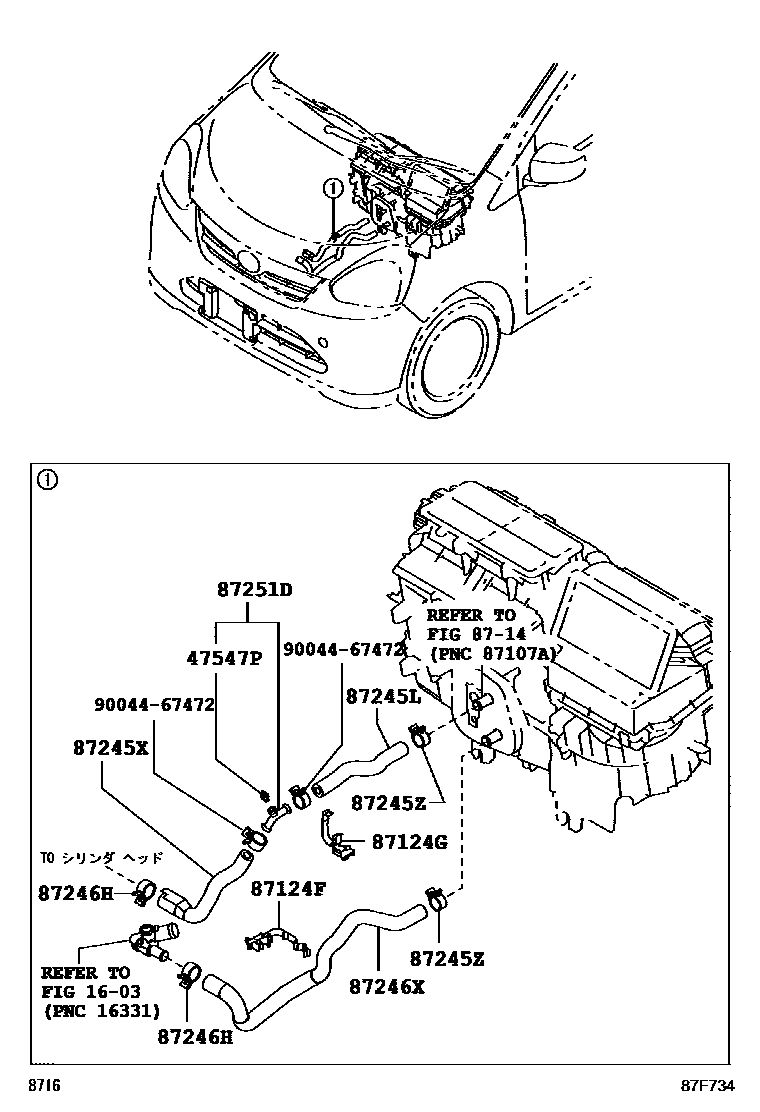

Toyota PIXIS EPOCH — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603

47547PPLUG, BLEEDER(FOR WATER JOINT)

main47546-87202iLA300,310¥250201204-201307

main47546-87202iLA300,310¥250201307-201308

main47547-B2030iLA300,310¥310201308-201704

87124CLAMP, HEATER

main87124-B2070iLA300,310¥280201307-201704

87124FCLAMP, HEATER HOSE, NO.1

main87124-B2010iLA300,310¥220201204-201307

87124GCLAMP, HEATER HOSE, NO.2

main87124-B2060iLA300,310¥220201204-201307

main87124-B2060iLA300,310¥220201307

8714

87245LHOSE, HEATER WATER, L

main87245-B2170iLA300,310¥1,210201204-201307

main87245-B2220iLA300,310¥1,000201307

87245XHOSE, HEATER WATER

main87242-B2010iLA300,310¥1,950201204-201307

main87242-B2060iLA300,310¥1,160201307-201507

main87242-B2160iLA300,310¥1,280201508

sub87242-B2060¥1,160

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96136-42101iLA300,310¥240201204-201307

main96136-42101iLA300,310¥240201307-201508

main96136-42101iLA300,310¥240201508-201704

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96136-42501iLA300,310¥200201204-201307

main96136-42501iLA300,310¥200201508-201704

main96136-42501iLA300,310¥200201307-201508

87246XHOSE, HEATER WATER

main87246-B2170iLA300,310¥2,480201508-201704

�����y�C���g���I�����W�^�s���N

main87246-B2210iLA300,310¥3,090201204-201307

main87246-B2250iLA300,310¥2,270201307-201508

�����y�C���g���u���[�^�s���N

87251DJOINT, WATER, NO.1

main16035-B2010iLA300,310¥1,330201204-201307

main16035-B2040iLA300,310¥2,050201307-201704

9004467472

main90044-67472¥430

13 parts on this diagram · 3 diagrams in section
