Toyota PIXIS EPOCH — HEATING & AIR CONDITIONING - COMPRESSOR

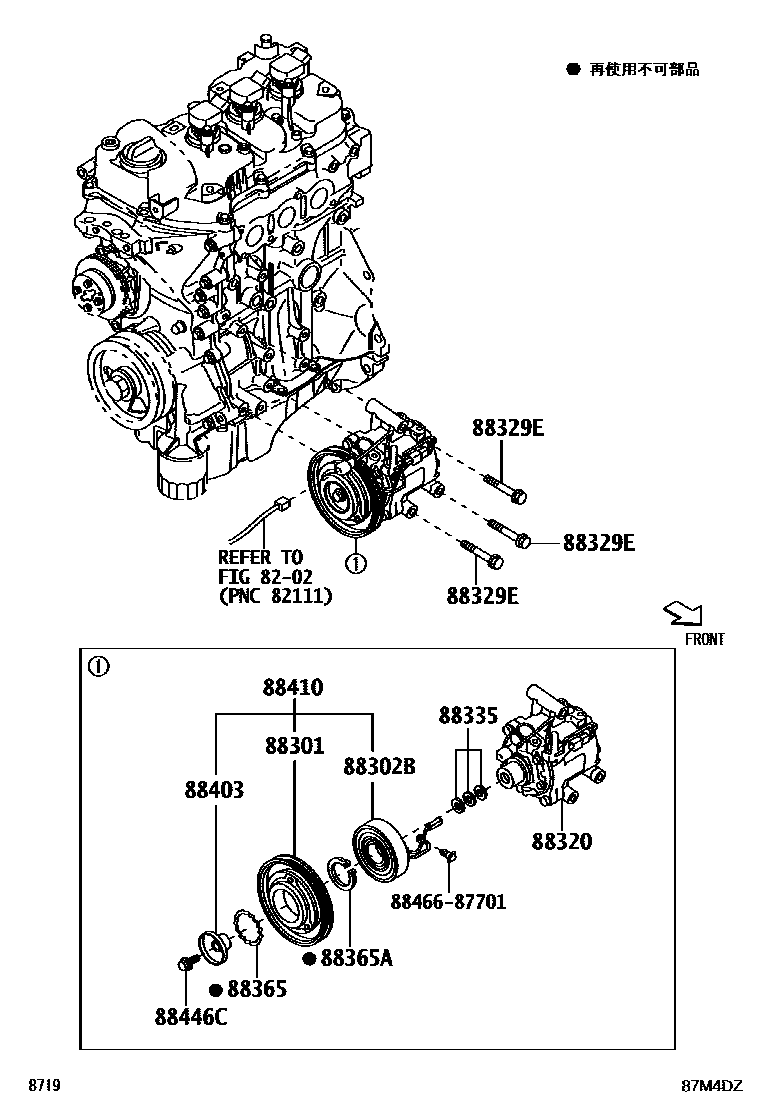

8202

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B2020iLA300,310201204-201307

88302BSTATOR, MAGNET CLUTCH

main88411-87264iLA300,310201204-201307

88320COMPRESSOR ASSY, COOLER

main88320-B2010iLA300,310201407

main88320-B2020iLA300,310201204-201407

88329EBOLT, COMPRESSOR, NO.1

main88899-12400iLA300,310¥0201204-201307

88335GASKET KIT, OVERHAUL

main88335-14020iLA300,310201204-201307

88365RING, SNAP

main90099-07125iLA300,310¥250201204-201307

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iLA300,310201204-201307

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-97201iLA300,310201204-201307

88410CLUTCH ASSY, MAGNET

main88410-B2050iLA300,310¥22,300201204-201307

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iLA300,310201204-201307

8846687701

main88466-87701

12 parts on this diagram · 1 diagram in section
