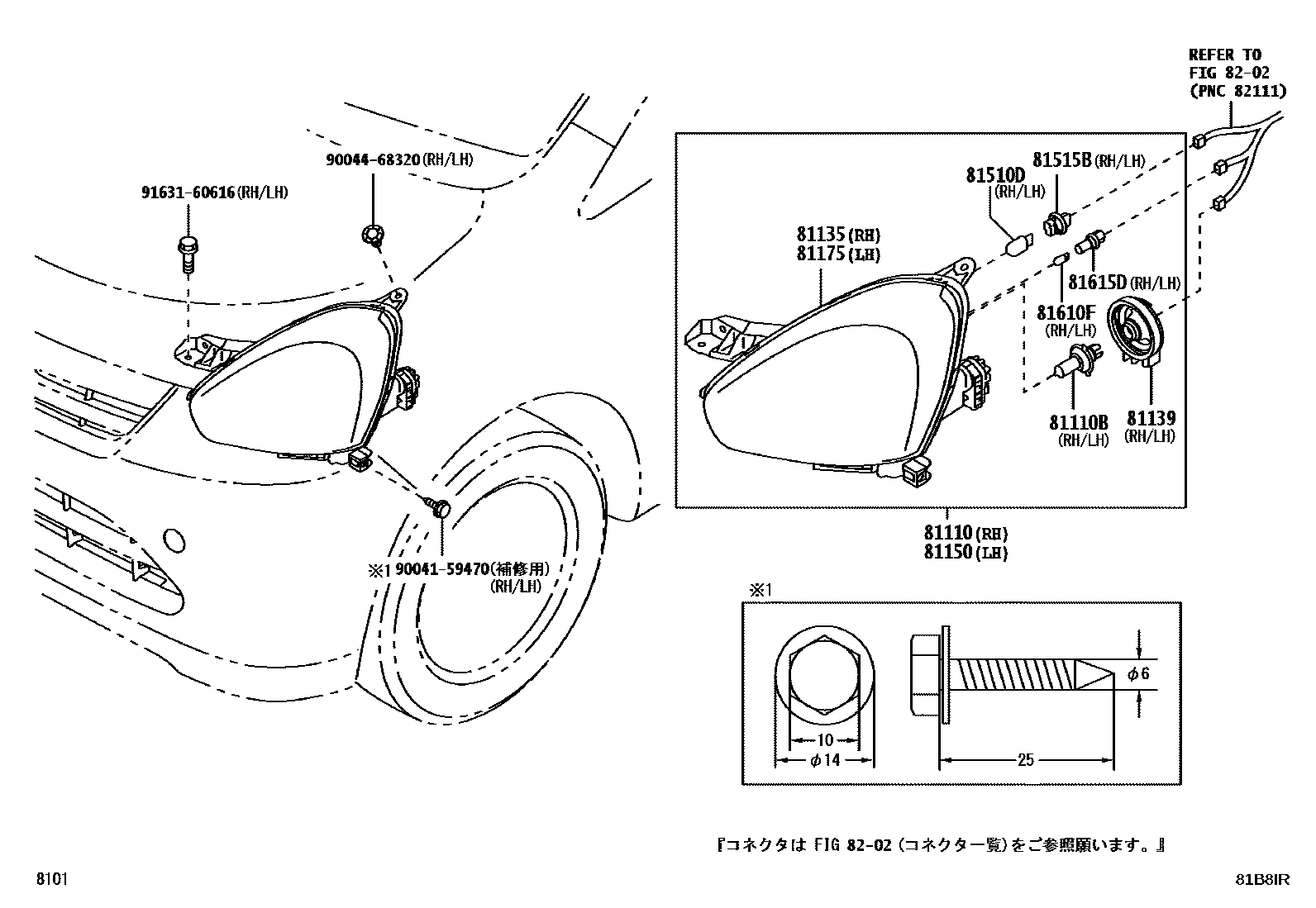

Toyota PIXIS EPOCH — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-B2720iLA300,310¥18,800201204-201502

sub81110-B2721¥23,900

main81110-B2721iLA300,310¥23,900201503

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51088iLA300,310¥1,800201204-201704

81135UNIT ASSY, HEADLAMP, RH

main81130-B2500iLA300,310¥19,500201204-201307

81139COVER, HEADLAMP SOCKET

main81139-B2010iLA300,310¥870201204-201307

81150HEADLAMP ASSY, LH

main81150-B2760iLA300,310¥18,800201204-201502

sub81150-B2761¥23,900

main81150-B2761iLA300,310¥23,900201503

81175UNIT ASSY, HEADLAMP, LH

main81170-B2510iLA300,310¥19,500201204-201307

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51179iLA300,310¥300201204-201307

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iLA300,310¥610201204-201307

81610FBULB(FOR CLEARANCE LAMP)

main90981-11013iLA300,310¥110201204-201307

sub99132-12050¥110

81615DSOCKET, CLEARANCE LAMP

main9004C-82001iLA300,310¥610201204-201307

8202

9004159470

main90041-59470¥140

9004468320

main90044-68320¥170

9163160616

main91631-60616¥120

14 parts on this diagram · 1 diagram in section
