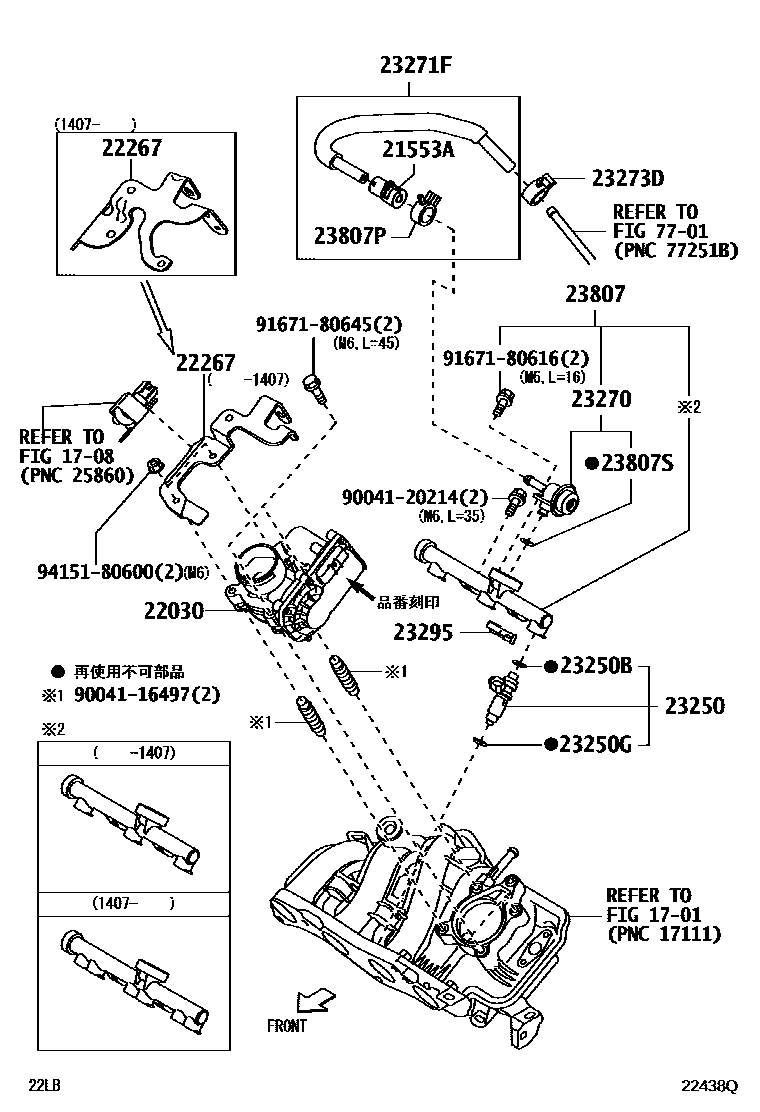

Toyota PIXIS EPOCH — FUEL INJECTION SYSTEM

1701

1708

21553AGUIDE, FUEL MAIN

main21553-B2010iKFVE..LA300,310¥220201204-201307

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-B2020iKFVE..LA300,310¥58,100201409-201704

sub22030-B2030¥50,300

sub22030-B2040¥69,300

main22030-B2040iKFVE..LA300,310¥69,300201307-201704

main22030-B2040iKFVE..LA300,310¥69,300201204-201307

22267BRACKET, THROTTLE BODY

main58239-B2030iKFVE..LA300,310¥840201407

main58239-B2040iKFVE..LA300,310¥1,090201204-201407

23250INJECTOR ASSY, FUEL

main23250-B2050iKFVE..LA300,310¥10,600201204-201407

main23250-B2090iKFVE..LA300,310¥13,600201407

23250BRING, O(FOR FUEL INJECTOR)

main90043-01290iKFVE..LA300,310¥300201407

main90043-01349iKFVE..LA300,310¥210201204-201407

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main23585-B2050iKFVE..LA300,310¥160201407

main90043-01348iKFVE..LA300,310¥210201204-201407

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-B2010iKFVE..LA300,310¥4,330201204-201307

23271FHOSE, FUEL

main77260-B2020iKFVE..LA300,310¥3,710201204-201407

main77260-B2070iKFVE..LA300,310¥3,870201407

23273DCLIP(FOR FUEL HOSE NO.2)

main90044-67400iKFVE..LA300,310¥250201204-201307

23295HOLDER, INJECTOR, NO.1

main23295-B2020iKFVE..LA300,310¥150201204-201407

main23295-B2060iKFVE..LA300,310¥170201407-201608

sub23295-B2070¥150

main23295-B2070iKFVE..LA300,310¥150201609

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-B2020iKFVE..LA300,310¥5,300201204-201407

main23807-B2080iKFVE..LA300,310¥4,690201407

23807PCLIP(FOR FUEL HOSE)

main90044-67400iKFVE..LA300,310¥250201204-201307

23807SRING, O(FOR FUEL DELIVARY PIPE)

main90043-01353iKFVE..LA300,310201204-201307

7701

9004116497

main90041-16497¥240

9004120214

main90041-20214¥160

9167180616

main91671-80616¥60

9167180645

main91671-80645¥70

9415180600

main94151-80600¥60

21 parts on this diagram · 1 diagram in section
