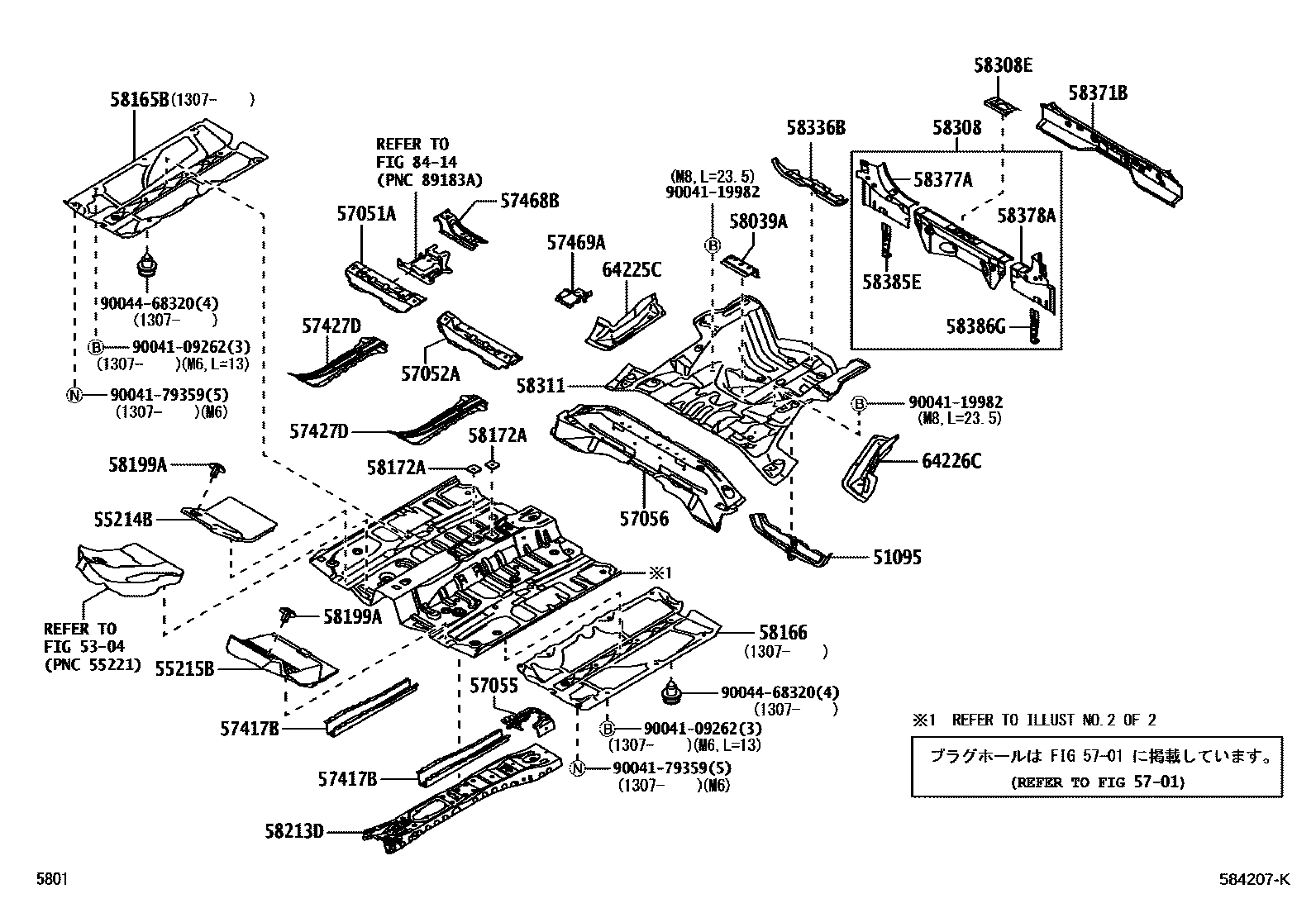

Toyota PIXIS EPOCH — FLOOR PAN & LOWER BACK PANEL
51095HOOK, TRANSPORT, REAR
5304
55214BPAD, DASH PANEL INSULATOR, NO.2
55215BPAD, DASH PANEL INSULATOR, NO.3
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5
57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6
57417BREINFORCEMENT, FRONT FLOOR UNDER
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57468BBRACKET, FRONT SEAT, REAR
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
58039AREINFORCEMENT SUB-ASSY, REAR FLOOR PANEL
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58172APLATE, PARKING BRAKE MOUNTING
58199ACLIP, FOOTREST, NO.2
BLACK
58213DREINFORCEMENT, CENTER FLOOR PANEL
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308ECOVER, HOLE(FOR LOWER BACK)
DK.GRAY,TRIM1#
58311PAN, REAR FLOOR
58336BREINFORCEMENT, REAR FLOOR PAN
58371BPANEL, BODY LOWER BACK, OUTER
58377APANEL, BODY LOWER BACK, RH
58378APANEL, BODY LOWER BACK, LH
58385EBRACKET, REAR BUMPER COVER, RH
58386GBRACKET, REAR BUMPER COVER, LH
64225CPATCH, REAR SEAT SET, RH
64226CPATCH, REAR SEAT SET, LH
8414
9004109262
9004119982
9004179359
9004468320
35 parts on this diagram · 3 diagrams in section
