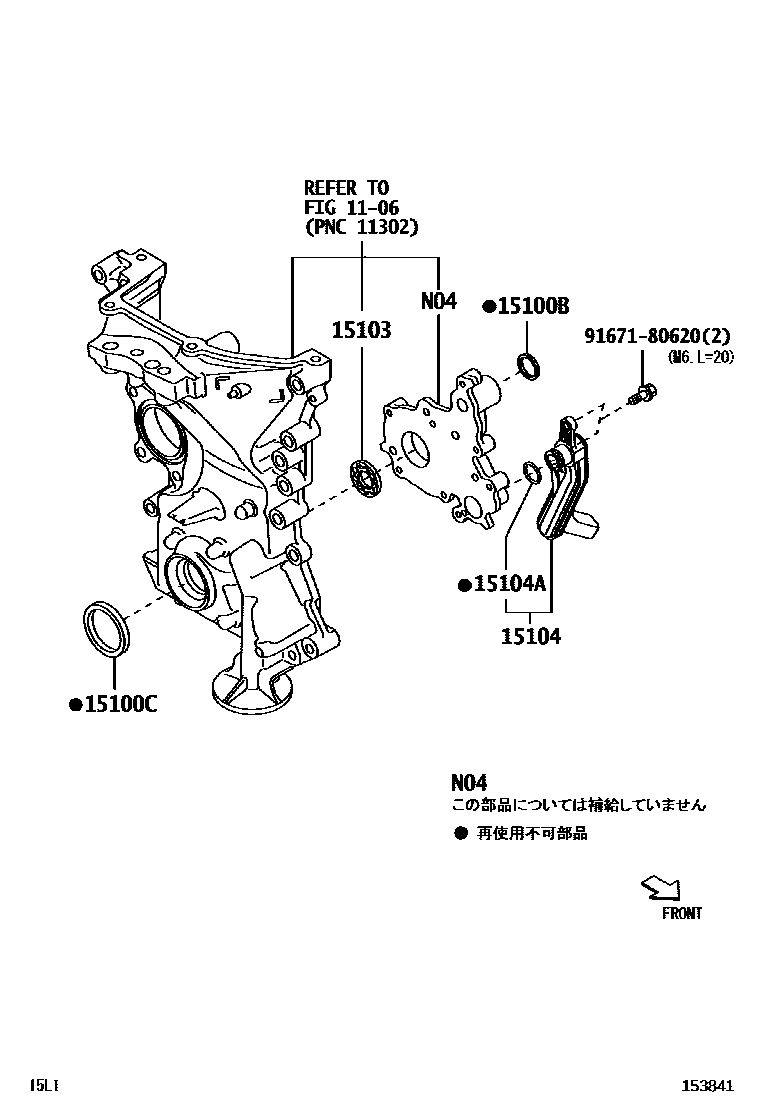

Toyota PIXIS EPOCH — ENGINE OIL PUMP

1106

15100BRING, O(FOR OIL PUMP)

main90043-01325iKFVE..LA300,310¥160201204-201307

main90043-01325iKFVE..LA300,310¥160201307

15100CSEAL(FOR OIL PUMP)

main90043-11424iKFVE..LA300,310¥430201204-201307

sub90043-11438¥390

main90043-11424iKFVE..LA300,310¥430201307-201604

sub90043-11438¥390

main90043-11438iKFVE..LA300,310¥390201605

15103GEAR SET, OIL PUMP

main15103-B2011iKFVE..LA300,310¥3,760201204-201307

main15103-B2011iKFVE..LA300,310¥3,760201307-201704

15104STRAINER SUB-ASSY, OIL

main15104-B2011iKFVE..LA300,310¥1,950201204-201307

main15104-B2011iKFVE..LA300,310¥1,950201307

15104ARING, O(FOR OIL STRAINER)

main90043-01324iKFVE..LA300,310¥210201204-201307

main90043-01324iKFVE..LA300,310¥210201307

9167180620

main91671-80620¥60

7 parts on this diagram · 1 diagram in section
