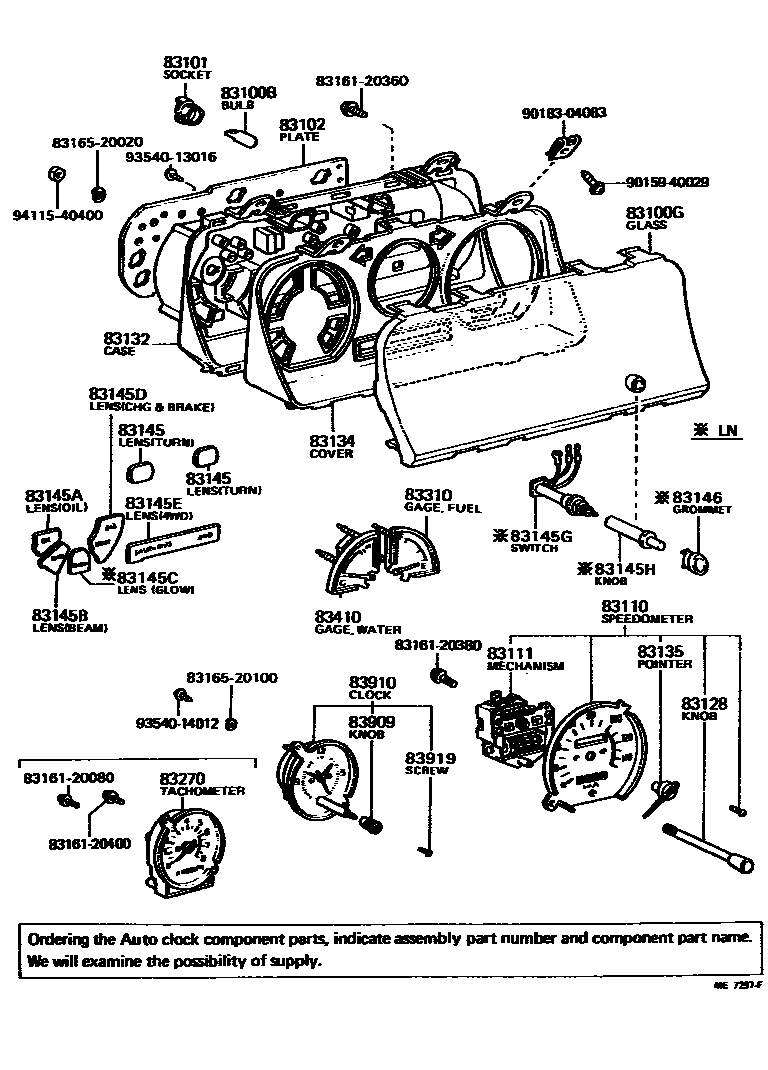

Toyota PICKUP — METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×4iLN40;RN3#,4#..DLX,STD198108-198307

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×13iLN40,RN3#,4#197808-198307

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-89130iRN37;RN32,42..SR5..USA197808-198008

W/TRIP METER

main83138-89132iRN3#,42..(DLX,STD)..USA197808-198008

main83138-89134iRN3#..DLX;RN42..DLX..USA197808-198008

W/CLOCK HOLE

main83138-89152iLN40198101-198108

main83138-89153iLN40198101-198108

W/CLOCK HOLE

main83138-89251iRN3#,4#..DLX,STD198108-198307

main83138-89255iLN40..DLX198108-198307

main83138-89257iRN3#,4#..SR5198108-198307

main83138-95F08iLN40..SR5198208-198307

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×4iLN40;RN3#,4#..DLX,STD198108-198307

BULB=1.4W

main83101-20040×13iLN40,RN3#,4#197808-198307

BULB=3.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-89130iRN3#,4#197908-198108

main83102-89142iRN3#,42197808-197908

main83247-89210iRN3#,4#..USA198008-198108

CALIFORNIA SPEC

main83247-89211iLN40198101-198108

main83247-89212iRN3#,4#..DLX,STD198108-198307

main83247-89220iRN3#,4#..SR5198108-198307

main83247-89224iLN40..DLX198108-198307

main83247-89225iLN40..SR5198208-198307

83110SPEEDOMETER ASSY

main83110-89142iRN3#,42..(DLX,STD)..USA197808-197908

main83110-89143iRN37..USA197901-198008

W/TACHOMETER

main83110-89145iRN3#,42..CND197808-198008

main83110-89164iRN3#,42..(DLX,STD)..USA197908-198008

main83110-89165iRN38,48..USA198008-198108

W/TACHOMETER

main83110-89166iRN3#,4#..(DLX,STD)..USA198008-198108

CALIFORNIA SPEC

main83110-89167iRN34,44..SR5..USA198008-198108

W/TACHOMETER,CALIFORNIA SPEC

main83110-89168iRN44..CND..IV198008-198108

main83110-89170iLN40..USA198101-198108

main83110-89171iLN40..CND198101-198108

main83110-89172iRN3#,4#..(DLX,STD)..USA198108-198307

main83110-89173iRN3#,4#..SR5..USA198108-198307

main83110-89174iRN3#,4#..(DLX,STD)..CND198108-198307

main83110-89175iRN38,4#..SR5..CND198108-198307

main83110-89183iLN40..DLX..USA198108-198210

main83110-89184iLN40..CND198108-198210

main83110-89190iLN40..SR5198208-198210

main83110-89192iLN40..DLX..USA198210-198307

main83110-89193iLN40..CND198210-198307

main83110-89194iLN40..SR5198210-198307

main83110-95110iRN44..SR5..CND198008-198108

W/TACHOMETER

83111MECHANISM, SPEEDOMETER

main83112-89142iRN3#,42..(DLX,STD)..USA197808-198008

main83112-89143iRN32,42..SR5..USA197808-198008

main83112-89148iRN3#,42..CND197808-198008

main83112-95110iRN37..CND197901-198008

83128KNOB, TRIP COUNTER

main83128-89130iLN40,RN3#,4#..SR5198108-198307

83132CASE, COMBINATION METER

main83132-89130iRN37;RN32,42..SR5..USA197808-198008

main83132-89152iLN40198101-198108

main83132-89207iRN44..HVY198008-198108

CALIFORNIA SPEC

main83132-89251iLN40;RN3#,4#..DLX,STD198108-198307

main83132-89257iRN3#,4#..SR5198108-198307

83134COVER, COMBINATION METER, NO.1

main83134-89130iRN3#,42..(DLX,STD)..USA197808-198008

main83134-89131iRN3#,42..DLX,SR5197808-198008

W/CLOCK OR TACHOMETER

main83134-89201iLN40,RN3#,4#..DLX,STD198108-198307

main83134-89204iRN3#,4#198008-198108

main83134-89205iRN3#,4#198008-198108

W/CLOCK OR TACHOMETER

main83134-89237iLN40198101-198108

main83134-89238iLN40198101-198108

W/CLOCK

main83134-89257iRN3#,4#..SR5198108-198307

main83134-89274iLN40..SR5198208-198307

sub83134-89202

83135POINTER, SPEEDOMETER

main83135-89130iRN3#,42197808-198008

83145LENS, METER, NO.1

main83145-89114×2iLN40,RN3#,4#197808-198108

main83145-89245×2iLN40;RN3#,4#..DLX,STD198108-198307

main83145-89246×2iRN3#,4#..SR5198108-198307

83145ALENS, METER, NO.2

main83145-89113iRN3#,42197808-198008

main83145-89212iLN40,RN3#,4#198008-198108

main83145-89228iLN40,RN3#,4#..DLX,STD198108-198304

main83145-89240iRN34,44..5F..SR5198108-198304

main83145-89241iRN44..4FC..SR5198108-198304

main83145-89247iLN40,RN3#,4#..DLX,STD198304-198307

main83145-89248iLN40..SR5198304-198307

main83145-89252iRN34,44..5F..SR5198304-198307

main83145-89253iRN44..4FC..SR5198304-198307

main83145-95F11iLN40..SR5198208-198304

main83145-95F22iRN38,48..SR5198108-198304

main83145-95F25iRN38,48..SR5198304-198307

83145BLENS, METER, NO.3

main83145-89112iRN3#,42197808-198008

main83145-89213iLN40,RN3#,4#198008-198108

main83145-89234iRN34,44..4FC..DLX198108-198304

main83145-89236iLN40;RN34,44..MTM..(DLX,STD)198108-198304

main83145-89249iLN40;RN34,44..MTM..(DLX,STD)198304-198307

main83145-89250iRN44..4FC..DLX198304-198307

main83145-95F18iRN38,48..DLX198108-198304

main83145-95F24iRN38,48..DLX198304-198307

83145CLENS, METER, NO.4

main83145-89223iLN40198101-198108

main83145-89230iRN3#,4#..DLX,STD198108-198307

main83145-89231iLN40198108-198304

main83145-89251iLN40198304-198307

83145DLENS, METER, NO.5

main83145-89111iRN3#,42197808-198008

main83145-89211iLN40,RN3#,4#198008-198108

83145ELENS, METER, NO.6

main83145-89110iRN32,42197808-198008

main83145-89210iRN34,44..(3FC,4F,5F)..(3QT,HLF)198008-198108

main83145-89214iRN44..HVY198008-198108

CALIFORNIA SPEC

main83145-89215iRN44..4FC198008-198108

main83145-89216iRN44..4FC198008-198108

CALIFORNIA SPEC

main83145-89226iLN40198101-198108

main83145-95112iRN37197901-198008

main83145-95117iRN38,48..USA198008-198108

main83145-95118iRN38,48..USA198008-198108

CALIFORNIA SPEC

main83145-95119iRN38,48..CND198008-198108

83145GSWITCH ASSY, COMBINATION METER

main83125-89110iLN40198101-198108

83145HKNOB, COMBINATION METER

main83145-89120iLN40198101-198108

83146GROMMET, METER GLASS

main83145-89117iLN40198101-198307

83270TACHOMETER ASSY, ENGINE

main83270-89146iRN37;RN32,42..SR5197808-197908

main83270-89165iRN37;RN32,42..SR5197908-198008

main83270-89166iRN38,48;RN34,44..SR5198008-198108

main83270-89170iRN3#,4#..SR5198108-198303

main83270-89171iLN40..SR5198208-198303

main83270-89177iRN3#,4#..SR5198303-198307

main83270-89178iLN40..SR5198303-198307

83310GAGE ASSY, FUEL RECEIVER

main83243-89210iLN40;RN3#,4#..DLX,STD198108-198307

main83243-89212iRN3#,4#..SR5198108-198307

main83310-89130iLN40,RN3#,4#197808-198108

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-89210iLN40;RN3#,4#..DLX,STD198108-198307

main83244-89213iRN3#,4#..SR5198108-198307

main83410-89130iRN3#,42197808-197912

main83410-89173iLN40,RN3#,4#197912-198108

83909KNOB, CLOCK

main83909-14012iRN3#,42..DLX197808-198008

83910CLOCK ASSY

main83910-89102iRN3#,42..DLX197808-198008

83919SCREW, CLOCK

main83919-14012iRN3#,42..DLX197808-198008

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120360CASE, COMBINATION METER MIRROR, NO.1

main83161-20360

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120400CASE, COMBINATION METER MIRROR, NO.1

main83161-20400

8316520020MIRROR, COMBINATION METER, NO.2

main83165-20020

8316520100MIRROR, COMBINATION METER, NO.2

main83165-20100

9015940029

main90159-40029

9018304083

main90183-04083

9354013016

main93540-13016

9354014012

main93540-14012

9411540400

main94115-40400

36 parts on this diagram · 5 diagrams in section
