Toyota NOAH/VOXY — TRANSFER ASSEMBLY & GASKET KIT

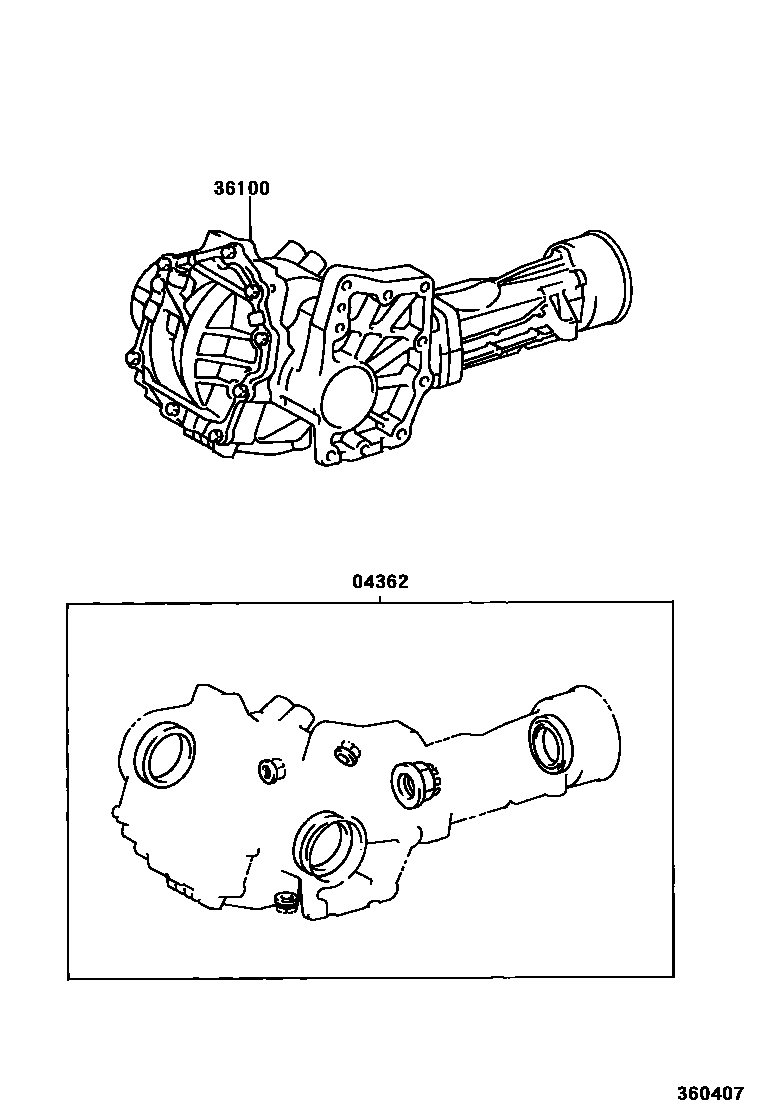

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-52010i¥2,490200111-200408

sub04362-52011¥1,720

main04362-52011i¥1,720200408-200706

36100TRANSFER ASSY

main36100-12060i¥182,000200111-200401

sub36100-12061¥182,000

main36100-12061i¥182,000200401-200706

sub36100-12063¥175,000

2 parts on this diagram · 1 diagram in section
