Toyota NOAH/VOXY — TRANSAXLE ASSY(CVT)

Parts diagram

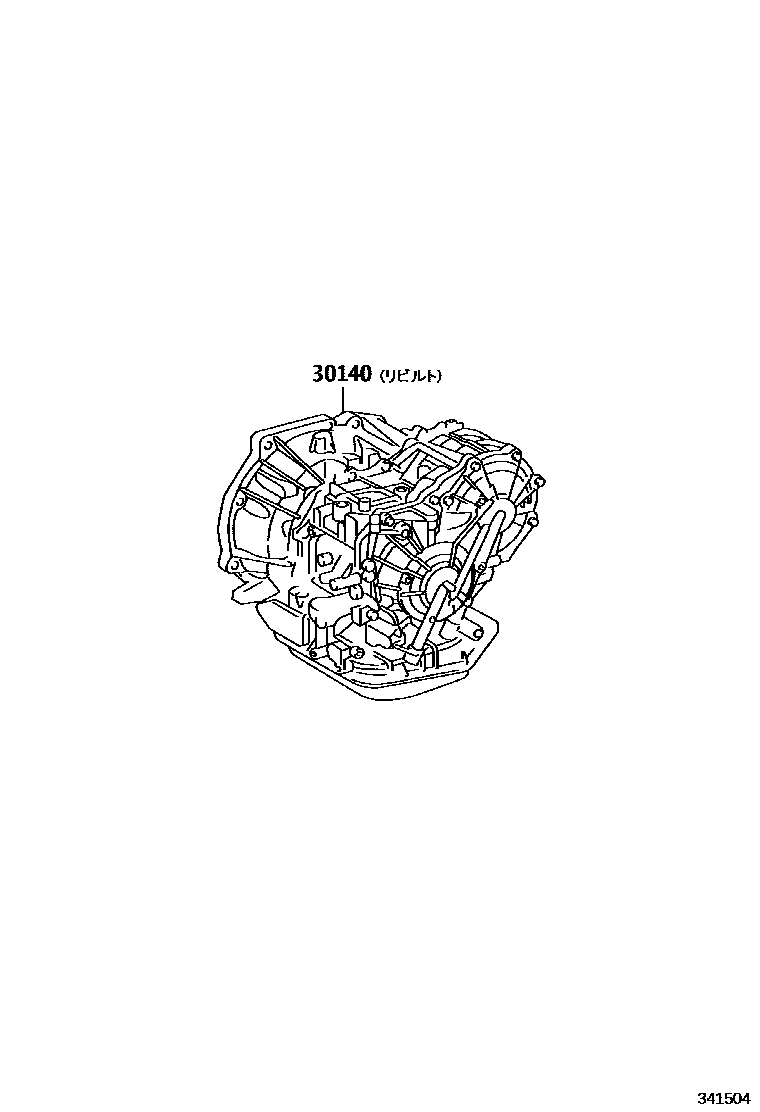

30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)

main30140-28011i¥335,000200408-200706

main30140-28021i¥335,000200408-200706

1 parts on this diagram · 2 diagrams in section
