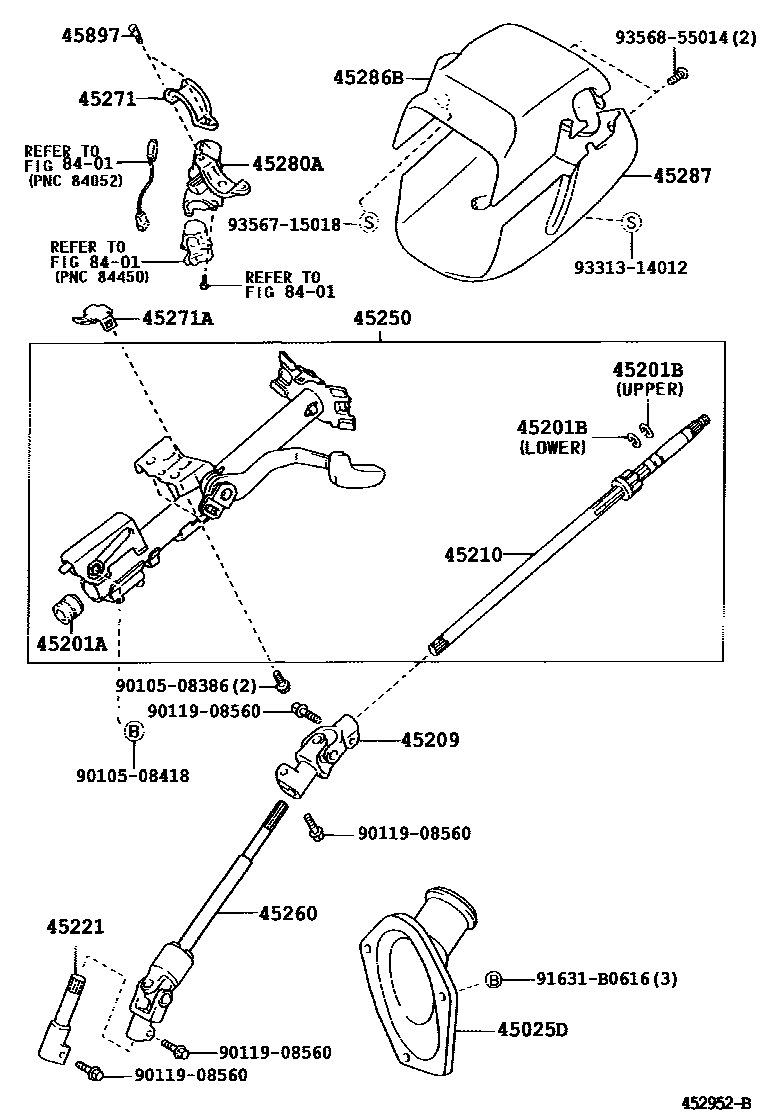

Toyota NOAH/VOXY — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45271ACLAMP, STEERING COLUMN, UPPER NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
45287COVER, STEERING COLUMN, LWR
45897BOLT, STEERING LOCK SET
8401
9010508386
9010508418
9011908560
91631B0616
9331314012
9356715018
9356855014
22 parts on this diagram · 1 diagram in section
